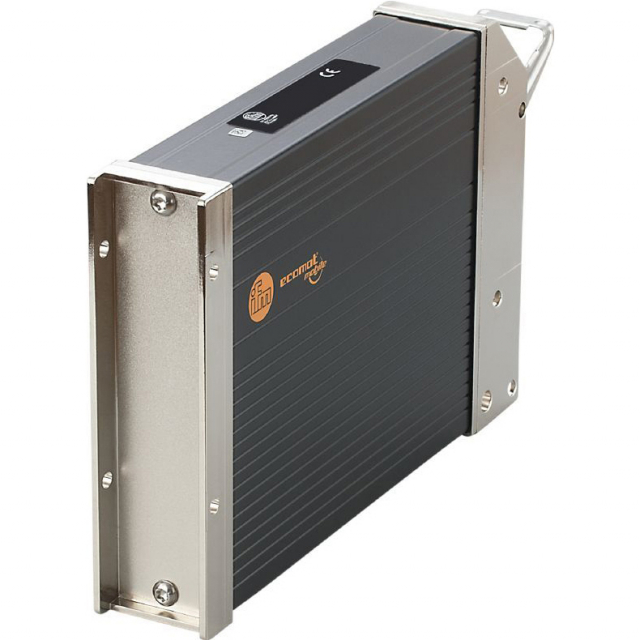

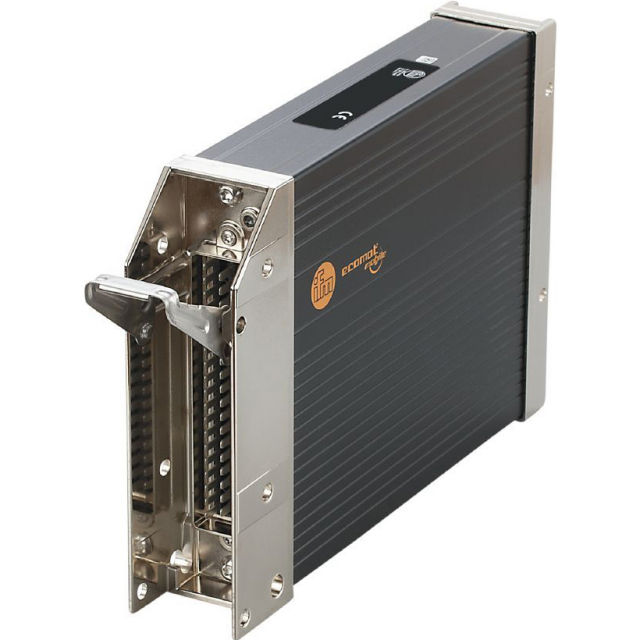

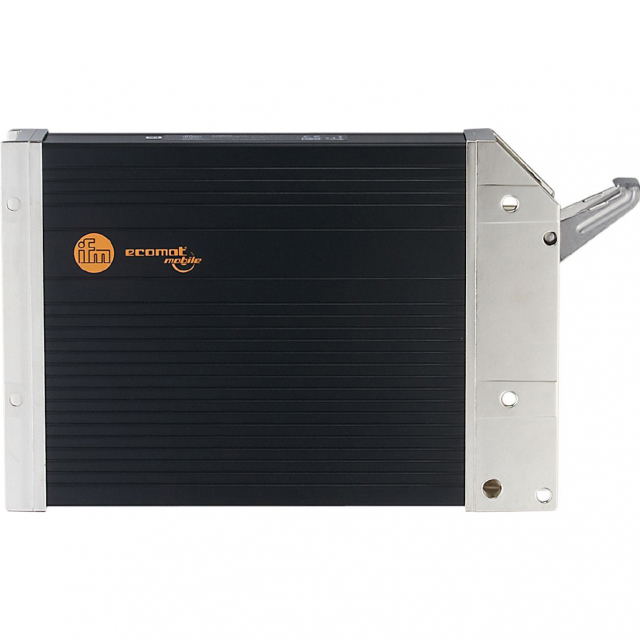

Buy IFM CR0033, Programmable Controller with 16 Inputs and 16 Outputs

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Version:: Version: Controller with 16 Inputs and 16 Digital Outputs

Features:

For complex control functions in vehicles and mobile machines
With many multifunctional configurable input and output channels
High-performance CAN interfaces for various communication tasks
Protection rating for the requirements of mobile machines
Freely programmable to IEC 61131-3 with CODESYS 2.3

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Electrical Data

Operating Voltage [V]

8 - 32 DC

Inputs / Outputs

Total Number of Inputs and Outputs

Number of Inputs and Outputs

Number of Digital Inputs: 16
Number of Analog Inputs: 12
Number of Frequency Inputs: 12
Number of Resistor Inputs: 4
Number of Digital Outputs: 16

Inputs

Number of Frequency Inputs

Number of Resistor Inputs

Number of Digital Inputs

Number of Analog Inputs

Analog Input (Current) [mA]

0 - 20

Analog Input (Voltage) [V]

0 - 32

Outputs

Number of Digital Outputs

Number of PWM Outputs

Number of PWM-I Outputs

Number of Outputs with H-Bridge

Software / Programming

Parameter Setting

Input/Output Functions

PLC Function to IEC 61131-3

Yes

Interfaces

Number of CAN Interfaces

Number of R232 Interfaces

Number of USB Interfaces

Tests / Approvals

MTTF [years]

Mechanical Data

Weight [g]

1539.5

Dimensions [mm]

153 x 43 x 241

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Electrical Data

Operating Voltage [V]

8 - 32 DC

Inputs / Outputs

Total Number of Inputs and Outputs

Number of Inputs and Outputs

Number of Digital Inputs: 16
Number of Analog Inputs: 12
Number of Frequency Inputs: 12
Number of Resistor Inputs: 4
Number of Digital Outputs: 16

Inputs

Number of Frequency Inputs

Number of Resistor Inputs

Number of Digital Inputs

Number of Analog Inputs

Analog Input (Current) [mA]

0 - 20

Analog Input (Voltage) [V]

0 - 32

Outputs

Number of Digital Outputs

Number of PWM Outputs

Number of PWM-I Outputs

Number of Outputs with H-Bridge

Software / Programming

Parameter Setting

Input/Output Functions

PLC Function to IEC 61131-3

Yes

Interfaces

Number of CAN Interfaces

Number of R232 Interfaces

Number of USB Interfaces

Tests / Approvals

MTTF [years]

Mechanical Data

Weight [g]

1539.5

Dimensions [mm]

153 x 43 x 241

Note

Note: Please read description carefully. Do not base your order on the picture presented.
