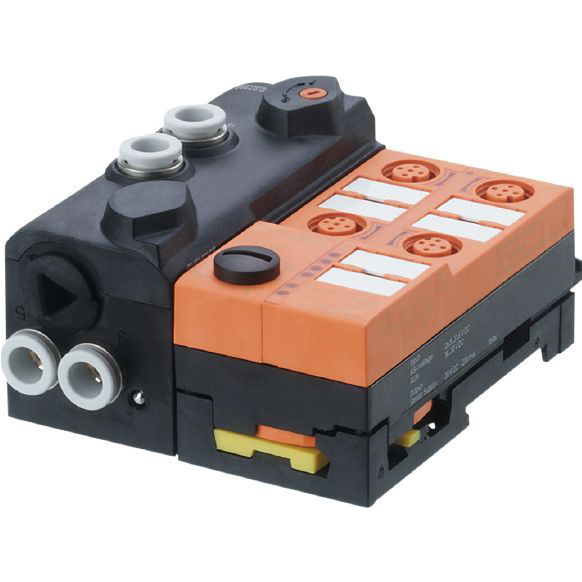

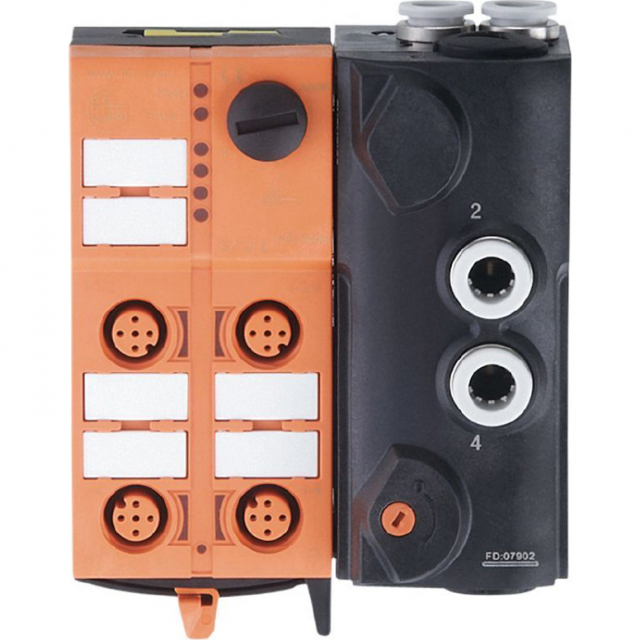

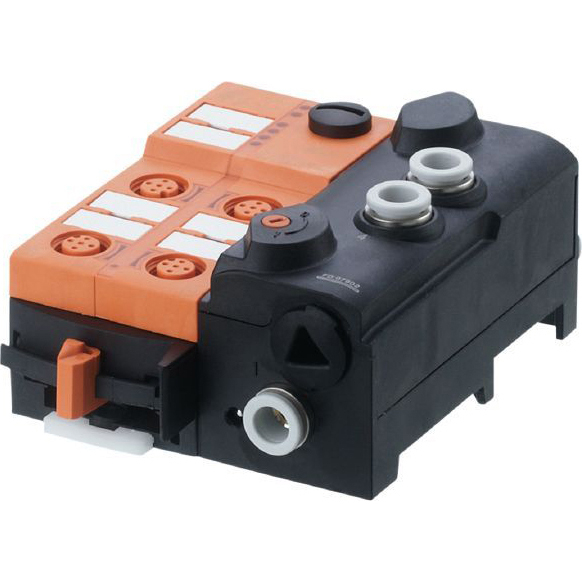

Buy IFM AC5253, AS-Interface Airbox with 4 Inputs and 2 Outputs

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

For the decentralized triggering of cylinders and valve actuators
Combination of AS-i I/O module and solenoid valve
High energy efficiency due to decentralized application near the actuator
Reduced installation and wiring complexity
Easy toolless installation

Applications

Field installation

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Medium Temperature [°C]

-10 - 50

Electrical Data

Operating Voltage [V]

26.5 - 31.6 DC

Maximum Current Consumption from AS-i [mA]

280

Additional Voltage Supply [V]

18 - 30 DC; (to PELV)

Additional Voltage Supply

Required

Maximum Current Consumption from Additional Supply [mA]

Integrated Watchdog

Yes

Inputs / Outputs

Number of Inputs and Outputs

Number of Digital Inputs: 4
Number of Pneumatic Outputs: 2

Inputs

Number of Digital Inputs

Input Circuit of Digital Inputs

PNP

Sensor Supply of the Inputs

AS-i

Voltage Supply [V]

20 - 30; (via flat cable)

Maximum Total Current Rating of Inputs [mA]

200

Input Current High [mA]

6 - 10

Input Current Low [mA]

0 - 2

Switching Level High [V]

>11

Digital Inputs Protected Against Short Circuits

Yes

Outputs

Number of Pneumatic Outputs

2; (pneumatic NO/NC selectable output; Bistable; supply: external 24 V power supply)

Actuator Supply Outputs

AUX

Operating Conditions

Ambient Temperature [°C]

-10 - 55

Protection

IP 65; IP 67

MTTF [years]

216

AS-i Classification

AS-i Version

2.11; 3.0

AS-i Addressing

Addressing socket

Extended Addressing Mode

Yes

AS-i Master Profile

AS-i Profile

S-7.A.E

AS-i I/O Configuration [hex]

AS-i ID Code [hex]

A.E

Mechanical Data

Weight [g]

379.5

Type of Mounting

quick mounting

Material

PA
POM
Piercing contacts: CuSn6 nickel-plated and tin-plated

Pneumatic System

1 x 5/2-way slide valve (free from overlapping); bistable

Operating Pressure Range [bar]

3 - 8

Operating Pressure Range [MPa]

0.3 - 0.8

Operating Pressure Range [psi]

43.5 - 116

Air Flow at 6/5 Bar [l/min]

500

Permissible Compressed Air

Non-lubricated compressed air class 6-3-1; lubricated compressed air class 6-3-4

Manual Override

Pressing/releasing or pressing/turning/locking

Tube Fittings

8 mm

Exhaust

Exhaust can be discharged through tube connection

Electrical Connection

Module Connection

Flat cable

Notes
