IEi WAFER-RK3588-A/CE-R10 3.5" Single Board Computer Rockchip RK3588

IEI, WAFER-RK3588-A/CE-R10, 3.5" Single Board Computer Supports Rockchip RK3588 Processors with 8GB LPDDR4 Memory & 32GB eMMC NAND Flash, Android Platform

WAFER-RK3588-A/CE-R10 Includes Only:

• 1 x WAFER-RK3588 single board computer
• 1 x Quick Installation Guide

Features:

• 3.5" Single Board Computer with Quad-core Cortex-A76 and quad-core Cortex-A55, Up to 2.4GHz
• Built-in AI accelerator NPU with processing performance of up to 6.0 TOPS, supports int4/int8/int16/FP16/BF16/TF32
• Built-in 4 core GPU Mali G610 (4x256KB L2 Cache) supports OpenGLES3.2/OpenCL2.2/Vulkan1.1
• Multi-channel input output: 4K HDMI™ input, 8K HDMI™ output, MIPI, LVDS, MIPI_DSI and Camera MIPI_CSI input

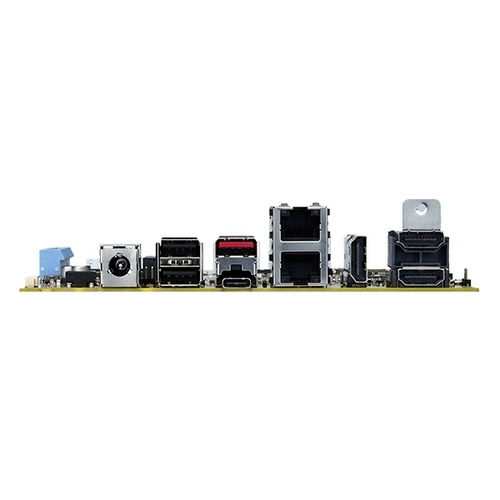

• Rich I/O: 2.5GbE, GbE RJ45, USB 3.2 GEN 1, USB2.0
• Expansion slot: PCIe 3.0 x2, M.2 B/M key, M.2 A/E key
• OS supports Android 13

PCIe X4 Expansion For Added Functionality And Fast Application Deployment

The WAFER-RK3588 features a PCIe x4 (x2 signal) slot, which is a new design of the WAFER motherboard to expand functionality providing easy integration of PoE, video capture or other I/O cards.

For more information, please see Data Sheet
