IEI, TANK-XM811AI-i5AD/2A-A40-R10, Ruggedized Embedded System with Intel® Core™ i5-12500TE 1.9GHz, (Up to 4.3GHz, 6-Core, TDP 35W), 2 x 8GB DDR4 Pre-Installed, Intel® Arc™ Pro A40 Pre-Installed, 2.5" 256 SSD, 12~28V DC, 180W AC DC Power Adapter, RoHS
TANK-XM811AI-i5AD/2A-A40-R10 Includes Only:
- 1 x TANK-XM811AI
- 1 x Mounting Screw
- 1 x Wall Mounting Kit
- 1 x QSG
- 1 x 180W Adapter
- 1 x Power Cord
Features:
- 12th Generation Intel® Core™ Processor (formerly Alder Lake-S)
- Intel® Hybrid Technology
- Intel® Arc™ Pro A40 GPU
- PCIe 4.0, 2.5GbE LAN, and USB 3.2 Gen 2
- Modular Expansion with Rich I/O Design
- Intel® Distribution of OpenVINO™ Toolkit and Intel® Movidus™ VPU Accelerator Cards / Intel® Arc™ Pro A-Series Graphics
Applications:
- Computer Vision, Deep Learning Developers
- Data Scientists
- OEMs, ISVs, System Integrators
Powerful, Expandable and Reliable
The new series of AIoT developer kit - TANK-XM811 ADL AI Developer Kit is equipped with the 12th generation Intel® Core™ i5 processor and the Intel® R680E chipset. This new processor uses Intel® 7 process technology and offers up to 6 cores and 12 threads with Intel® Hybrid Technology for outstanding multi-threaded performance. The TANK-XM811 ADL AI Developer Kit delivers low latency, high network, and data transmission speed with the support of PCI Express 4.0 for double throughput. It has rich I/O design, including dual independent 4K display ports (HDMI™ and DP++), six COM ports, eight USB 3.2 Gen 2 ports, two 2.5GbE LAN ports, and also two PCIe x8 slots. Furthermore, it allows for extra I/O expansion cards, such as PoE LAN, M.2 A-Key or B-key to support various applications at edge AI.Additionally, the TANK-XM811 ADL AI Developer Kit is integrated with Intel® Iris® Xe graphics, which offers greater GPU computing performance and speed for users. Powered by Intel® Distribution of OpenVINO™ Toolkit and Intel® Movidius™ Vision Processing Unit (VPU) accelerator cards / Intel® Arc™ Pro A-Series Graphics to improve AI performance, you can enjoy next-gen AI applications in automating business, inference computing, and data analysis.
Intel® Hybrid Technology
Intelligent Workload Optimization
Intel® Hybrid Technology consist of two core types, a combination of performance-cores (P-cores) and efficient-cores (E-cores) to optimize the single-thread (ST) and multi-thread (MT) performance of the CPU. Two cores are created with different power and performance characteristics to respond to different tasks. This architecture ensures higher workflow efficiency, lower power consumption, and operating temperature.
- Drive combined single-thread (ST) and multi-thread (MT) performance for IoT workloads
- P-cores cores drive single & lightly threaded performance enhancing IoT workloads
- E-cores cores enhance MT performance for background task management, multi-tasking, and focused MT throughput scenarios
Scalable and Expandable

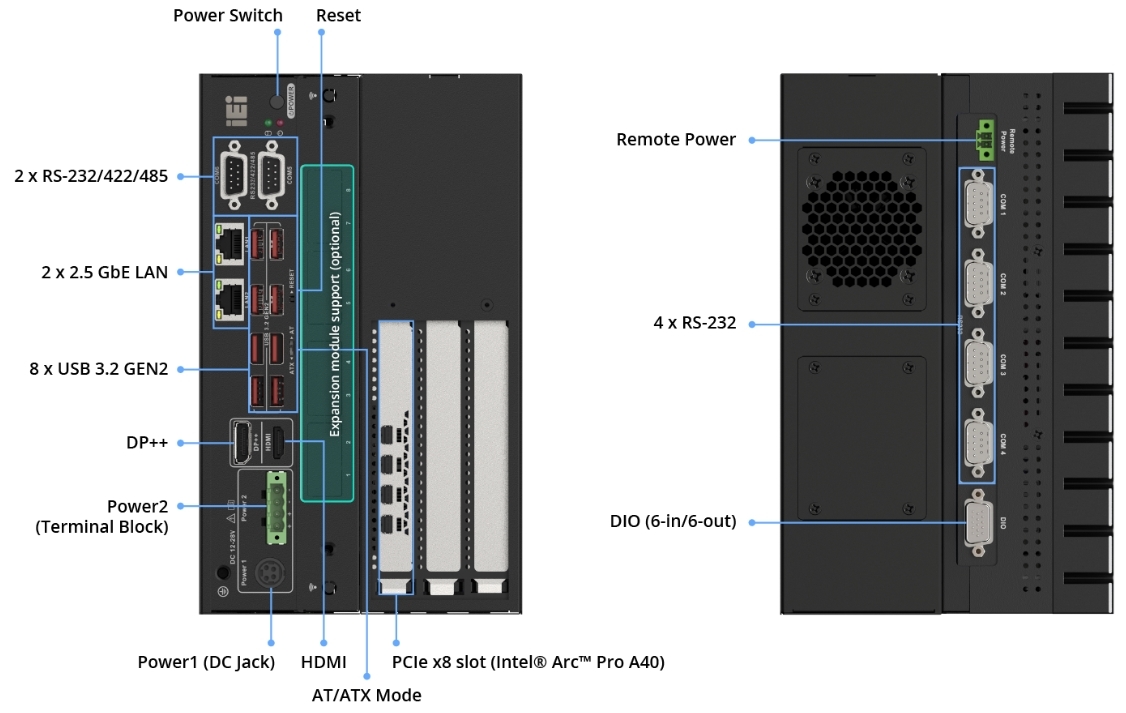

Supporting more AIoT solutions, the latest TANK-XM811 ADL AI Developer Kit brings eight USB 3.2 Gen 2 ports, six COM ports (RS-232/42-2/485), and two 2.5GbE LAN ports to integrate various sensors, IP cam and other devices. It's expansion capability is supported by two PCIe x8 slots for AI accelerator cards, PoE cards or a variety of add-on cards. Moreover, the TANK-XM811 ADL AI Developer Kit also provides extra I/O expansion modules, supporting more PoE LAN ports, M.2 A-Key/B-Key cards, or full-size PCIe Mini modules for IT, system integrators (SI) and developers to create a comprehensive AIoT platform.
Intel® Distribution of OpenVINO™ Toolkit
Optimize Existing Models, Run Inference When You Need It
Intel® Distribution of OpenVINO™ Toolkit is based on convolutional neural networks (CNN); the toolkit extends workloads across multiple types of Intel® platforms and maximizes performance.
It can optimize pre-trained deep learning models such as Caffe, MXNET, and Tensorflow. The tool suite includes more than 20 pre-trained models, and supports 100+ public and custom models (including Caffe, MXNet, TensorFlow, ON NX, Kaldi) for easier deployments across Intel® silicon products (CPU, GPU, FPGA, VPU).
- High Performance AI at the Edge
- Streamlined & Optimized Deep Learning Inference
- Heterogeneous,Cross-Platform Flexibility
Accelerator GPU Intel® Arc™ Pro A40
- 3.50 TFLOPs at Single Precision
- PCIe 4.0 x8, with Common 3.0 Backwards Compatibility
- 8x Ray Trace Cores
- 6GB GDDR6
- 4x mini-DP 2.0 Ready with Audio Support
- 50w Peak Power in a Single Slot Form Factor
Exploring Vision AI with TANK-XM811 ADL AI Developer Kit

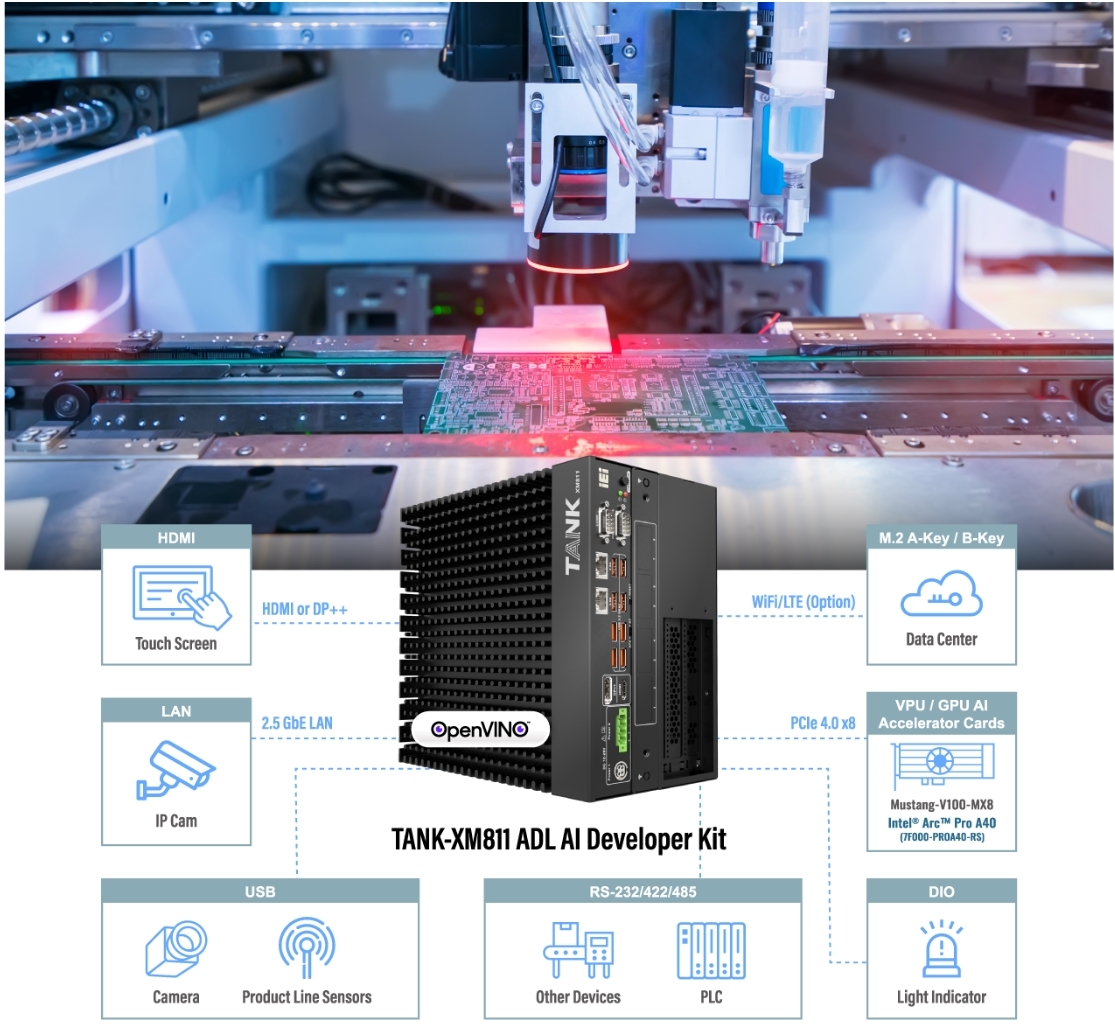

Defect Classification of AOI
Vision AI supports production flow of a pilot run in a more accurate, automatic and intelligent way. It is particularly applied in automated optical inspection (AOI) for collaborating with robotics, IP cam or AGV applications to enhance production efficiency, quality, and safety.The TANK AIoT Dev. Kit features rich I/O ports for connecting with numerous edge devices, and one PCIe 4.0 x8 slots for providing fast signal transmission speed with add-ons like the Mustang-V100-MX8 AI accelerator cards / Intel® Arc™ Pro A-Series Graphics, graphic cards or PoE cards to optimize the performance on defects detection. The higher the accuracy of defects classification, lower the cost and time spent on review and repair stations.

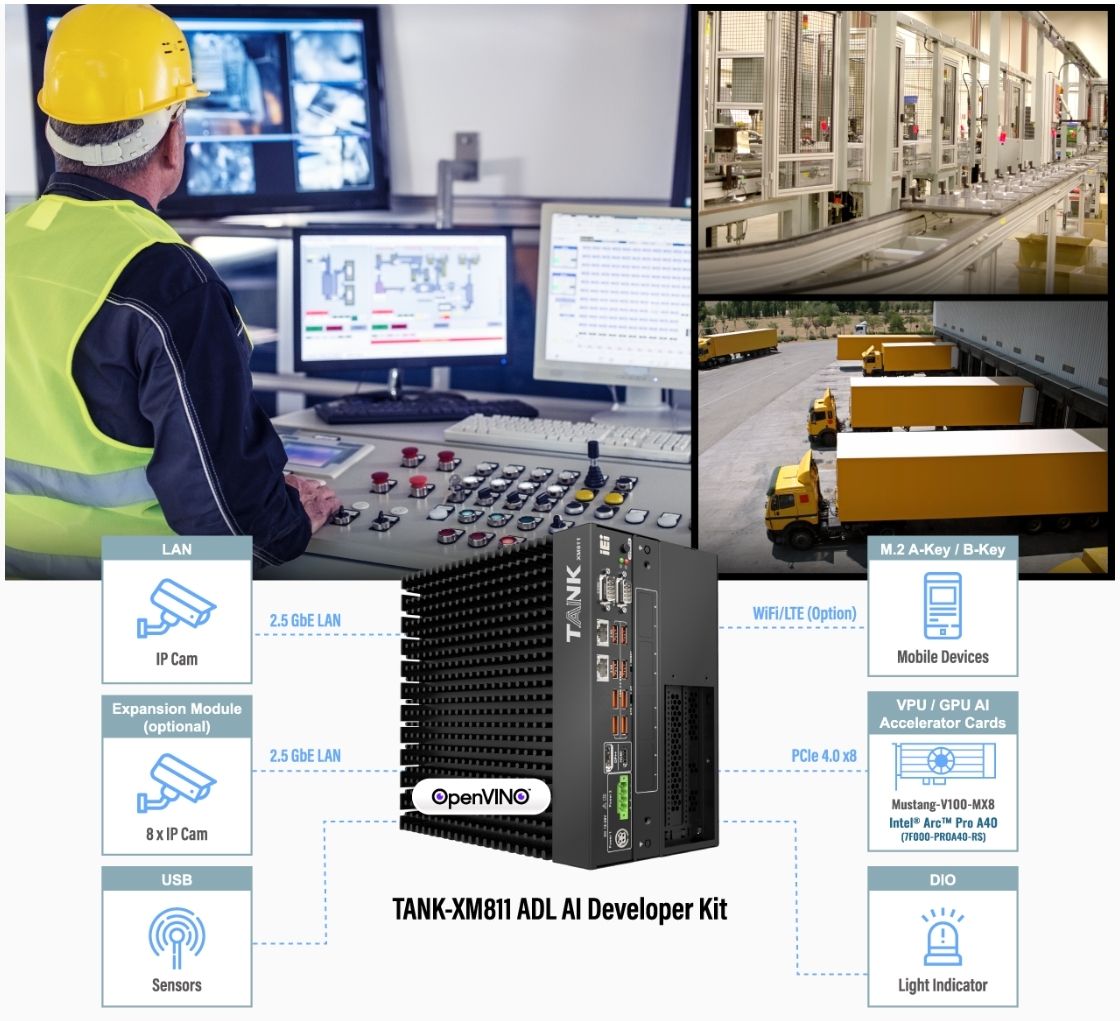

AI Surveillance Management in Factory
Security is a prerequisite in a factory to ensure the safety of employees and to maintain a productive environment. The TANK-XM811 ADL AI Developer Kit is designed with multiple USB ports, COM ports and LAN ports to support a numbers of IP channels or sensors. Combined with Intel® OpenVINO Toolkit and the Mustang-V100-MX8 AI accelerator cards / Intel® Arc™ Pro A-Series Graphics, the TANK-XM811 ADL AI Developer Kit can deliver powerful AI computing capability and image recognition to detect a worker's posture, monitor the restriction area or production line, and provide an alert and analytic result immediately. With the TANK-XM811 ADL AI Developer Kit, enterprises are able to maintain comprehensive and seamless security by addressing all the concerns.
