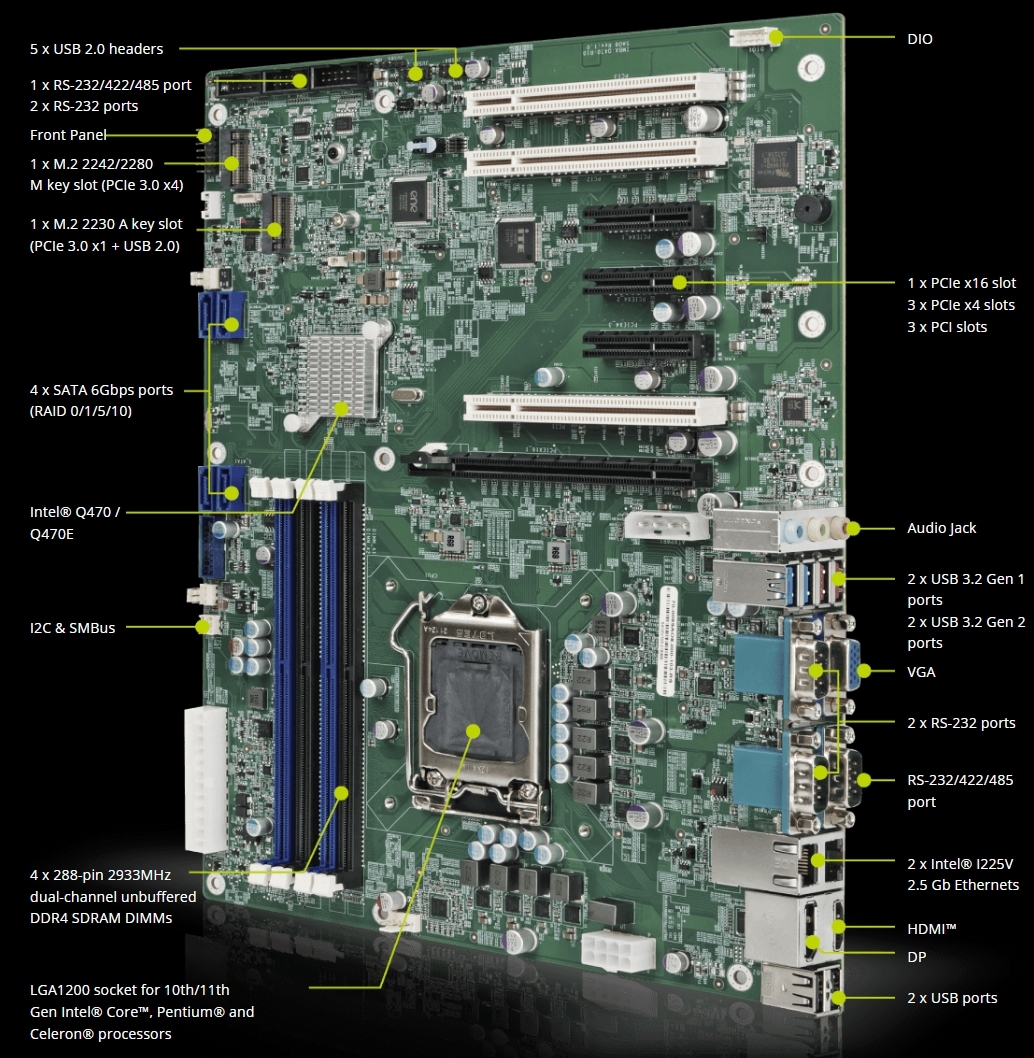

IEI, IMBA-Q470-R10, ATX Motherboard Supports LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® Processor, DDR4, Triple Independent Displays, Dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
IMBA-Q470-R10 Includes Only:
- 1 x IMBA-Q470 single board computer
- 2 x SATA cable
- 1 x I/O shielding
- 1 x Quick Installation Guide
Features:
- LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
- Dual-channel DDR4 2933MHz
- Support HDMI™, DP, VGA
- Support M.2 A key for WLAN expansion, M key for PCIe NVMe storage
Applications:
- Medical Diagnostics
- AI Traffic Monitoring
- Production Line Management
- Food Quality Control
- Automated Optical Inspection
Built for High-performance AI
Enhanced CPU and Graphics Performance
10th Gen/11th Gen Intel® Core Processors
The IEI IMBA-Q470 motherboard supports both 10th and 11th Gen Intel® Core processors, and the performance boosts up to 80% better than previous generation on i5 processor. The 10th Gen Intel® Core platform supports up to 10 cores and improved performance over Coffee Lake-Refresh. With increased I/O capacity and the latest DDR4-2933 memory support, these processors deliver the performance required to consolidate industrial multiple workloads.
Because of the above features, the IMBA-Q470 is suitable for edge computing, industrial automation, medical equipment, machine vision, automated test equipment and much more.
Stunning 4K Resolution and Triple Display
The IMBA-Q470 is equipped with Intel® UHD Graphics to display videos and images in stunning 4K resolutions. Among its three independent display ports (VGA+HDMI™+DP), the HDMI™ and DisplayPort can both support up to 4K high resolution. The enhanced visual quality responses the high precision demand of users.
Leading Connectivity
Dual Intel® 2.5G Ethernet
The IMBA-Q470 is equipped with two Intel 2.5GbE controllers, which are ready for the latest-performance router. With two 2.5GbE ports owning the benefits of low-latency, high-throughput and cost-effective, the IMBA-Q470 can meet the bandwidth-intensive requirements such as large file transfers and high resolution video streaming, which is ideal for machine vision and AI edge computing applications.
USB 3.2 Gen 2x1 10 Gb/s
Two USB 3.2 Gen 2x1 (10 Gb/s) ports are integrated to support high density data transmission.
M.2 M Key for NVME SSD
The M.2-2242/80 M-key socket with PCI Express® 3.0 x4 bandwidth supports up to 32Gbps data-transfer speeds. It's the perfect choice for installing an operating system or application drive to provide fast data access.
M.2 A Key for Wi-Fi/Bluetooth
The M.2 2230 A-key socket supports PCIe/USB mode for creating a fast, cost-effective Wi-Fi 6 and Bluetooth 5.2 solution.

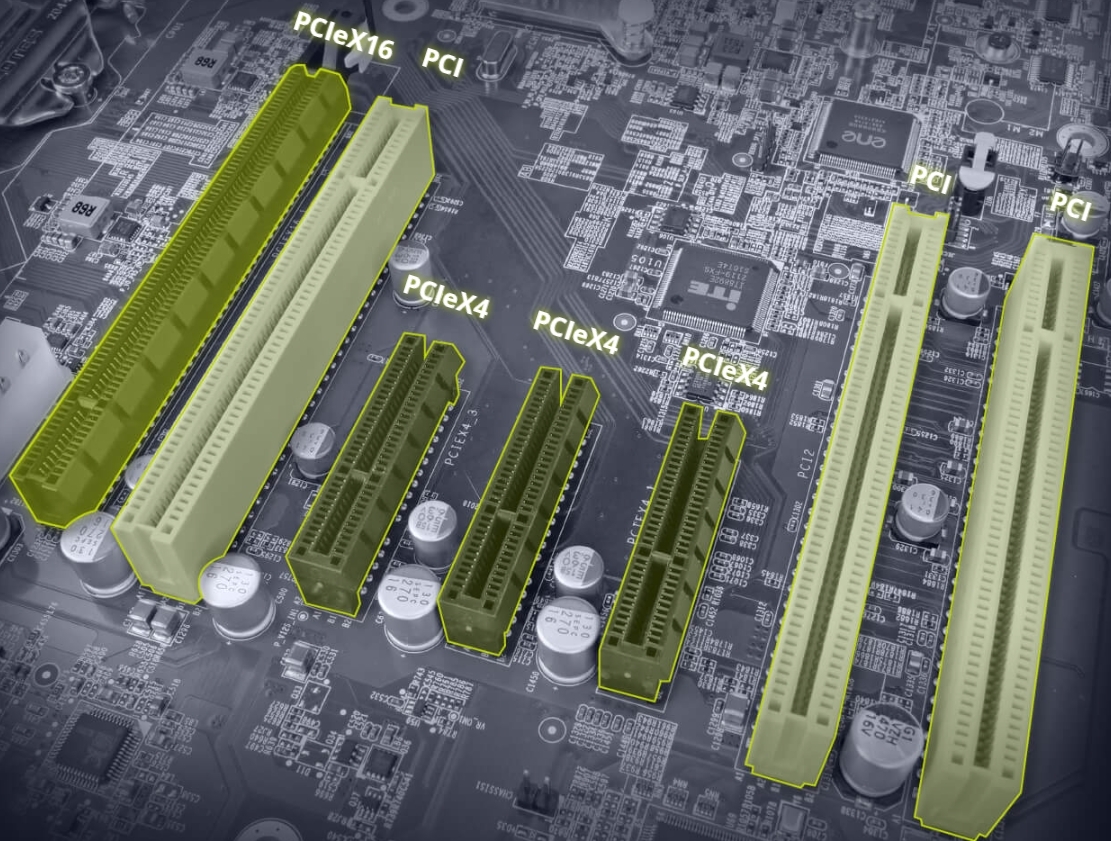

PCIe x16/4 & PCI Expansion Slots
There is an array of expansion interfaces on the IMBA-Q470 to meet different demands of each customer. It supports up to three PCI, three PCIe x4 , and one PCIe x16 slot, which can be used to install a variety of interface cards, including motion control cards, frame grabber cards, video capture cards, I/O cards, communication cards, AI accelerator cards and GPGPU cards.
Ready for Windows 11
To comply with Windows 11, IEI BIOS enables Intel firmware-based TPM function, Intel® PTT. TPM can be leveraged to encrypt your storage drive. This protects your data, including your identity and operating system files. Encryption also protects your data in the case of physical theft.
