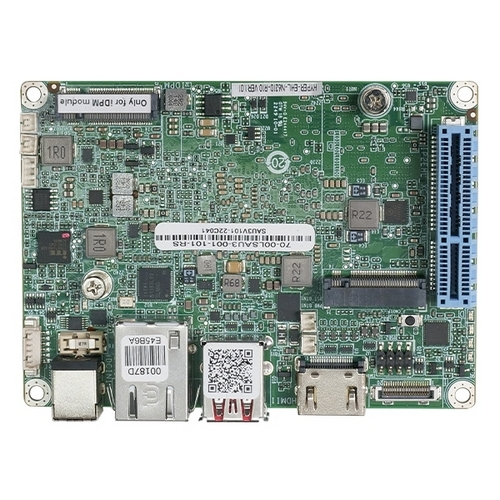

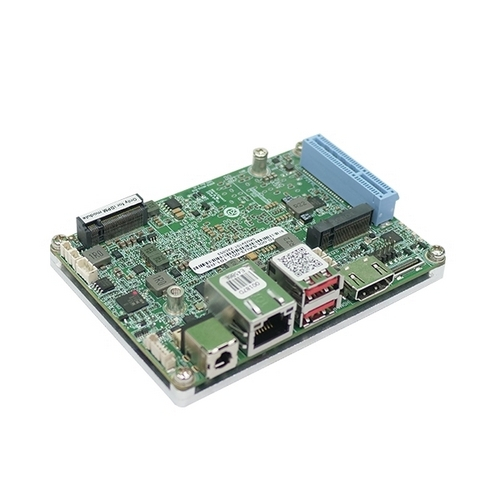

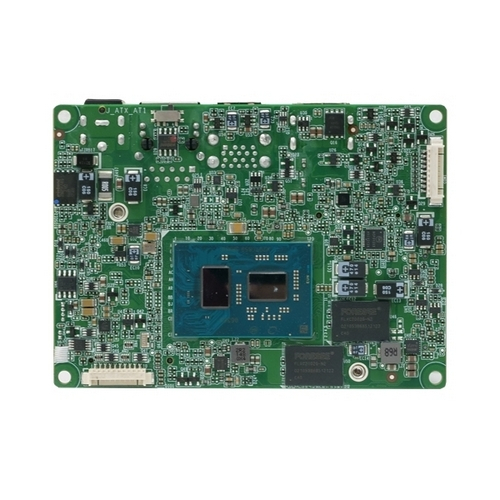

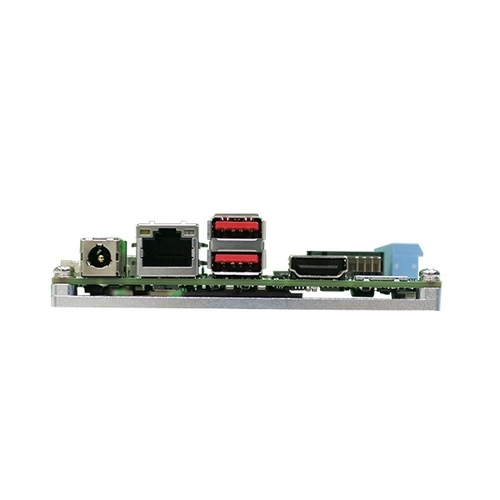

IEI, HYPER-EHL-J6412B-R10, PICO-ITX Single Board Computer Supports Intel® Quad-Core Celeron® J6412 2.0GHz on-Board SoC, with 4GB LPDDR4x Memory On Board Default, with HDMI, iDPM, M.2 M Key, USB 3.2, iSATA 6GB/s,COM, PCIe x4 for Riser Card and RoHS
HYPER-EHL-J6412B-R10 Includes Only:
- 1 x HYPER-EHL single board computer
- 1 x iSATA Cable
- 1 x Quick Installation Guide
Features:
- Support Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
- Support Intel® I225V/I226V 2.5GbE Ethernet controller
- Support dual independent display via HDMI™ and iDPM
- Support one PCIe x4 and one M.2 M Key expansions
- Support two USB 3.2 Gen 2, two USB 2.0, with up to 10Gb/s transfer speed
Applications:
- AMR/AGV
- Robot Arm
- Delivery Drone
- EV Charging Station
- Medical Care System
- Smart Parcel Locker
High Performance with Low Power Intel® Celeron® J6412 On-board SoC
Equipped with Intel® Celeron® J6412 processor and 4GB on-board LPDDR4X, the HYPER-EHL can deliver high levels of CPU and graphics performance at low power. Compared to the previous generation, it improves up to 1.7x on CPU and up to 2x on graphics, and gets up to 74% higher benchmark score. With the feature of low power and excellent throughput, the HYPER-EHL can benefit IoT edge computing by saving lots of energy while maintaining high computation.
Reliable 4GB LPDDR4x Memory
Equipped with 4GB dual-channel LPDDR4x soldered memory, the HYPER-EHL offers a fast memory speed of up to 3200MT/s and with low voltage (VDDQ voltage 0.6V). The soldered-on-board type enables the HYPER-EHL to deliver much more stable, solid operation compared to the socket-type memory for critical usage such as transportation, AMR and other mobile applications.
PCI Express Gen3 Slot Allows Extensive I/O and Function Expansion
The HYPER-EHL features a PCIe Gen3 x4 (x4 signal) slot, which is a new design of IEI 2.5" single board computer to provide easy integration of PoE cards, video capture cards, I/O cards or the compatible IEI riser cards for more function expansions. IEI riser cards are available with different orientations and configurations, offering great flexibility and expandability. Each of the riser card came with a metal holder for enhancing stability, not only the riser card itself but also the expansion card installed on
Dual Display Outputs Support Graphics in 4K
The integrated Intel® UHD Graphics, featuring max. 16 EUs, Up to 2x performance improvement and 4K support, makes the HYPER-EHL have the ability to drive a maximum resolution of 4kp30 on two simultaneous displays through the HDMI™ 1.4 port and the IEI-specific iDPM slot.
2.5GbE Network Enables Efficient Data Transfer
The RJ45 LAN port provides 2.5GbE connectivity by the integrated Intel® I225V controller. It accelerates overall network performance, delivers lightning-fast speed, and improves the bandwidth required at large-scale workloads. By connecting with a 2.5G network switch, it can form a solid, optimized infrastructure for the deployment of edge IoT to communicate between devices efficiently.
NVMe SSD via M.2 PCIe Gen3 Ensures Fast and Stable Data Transfer
SSD is widely used in industrial applications to provide reliable data storage due to its features of shock and temperature resistance, long lifetime and high stability. The equipped M.2 2242 M-key socket comes with PCI Express® Gen3 x2 bandwidth and supports up to 16Gbps data-transfer speeds, making them the perfect choice for installing NVMe SSD to provide fast data access in rugged environment.
Low-profile SATA 6Gb/s Port with Data and Power Integrated
SATA 6Gb/s SSD or HDD is supported through the iSATA connector that provides both SATA and SATA power (+5V) signals in a small footprint. This low-profile connector can save space in system integration while enabling high-speed data transfer between devices at the edge.
For more information, please see
Data Sheet
