Buy IEi DM-F24A/PC-R41, 23.8" FHD LCD Monitor Projected Capacitive Screen

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Display Size and Resolution:: Display Size and Resolution: Display Size 23.8", Resolution 1920 x 1080

IEI, DM-F24A/PC-R41, 23.8", 250 cd/m² FHD LCD Monitor, Aluminum Front Panel, Black Color, with USB Projected Capacitive Touch Screen, 9 ~36V DC Input, Powder Paint, R4

DM-F24A/PC-R41 Includes Only:

1 x DM-F24A
1 x Touch Pen
1 x USB Cable
1 x VGA Cable

Features:

Robust IP65 aluminum front bezel
Aesthetic ultra-thin bezel for seamless panel mount installation
DC input
DVI / VGA flexible video input solution
Resistive single touch
Wide temperature support

Interfaces

Dimensions

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Display

LCD Size

24”(16:9)

Brightness(cd/m²)

250

Max Resolution

1920 (W) x 1080 (H)

Contrast Ratio

3000:1

Backlight MTBF(hrs)

30000

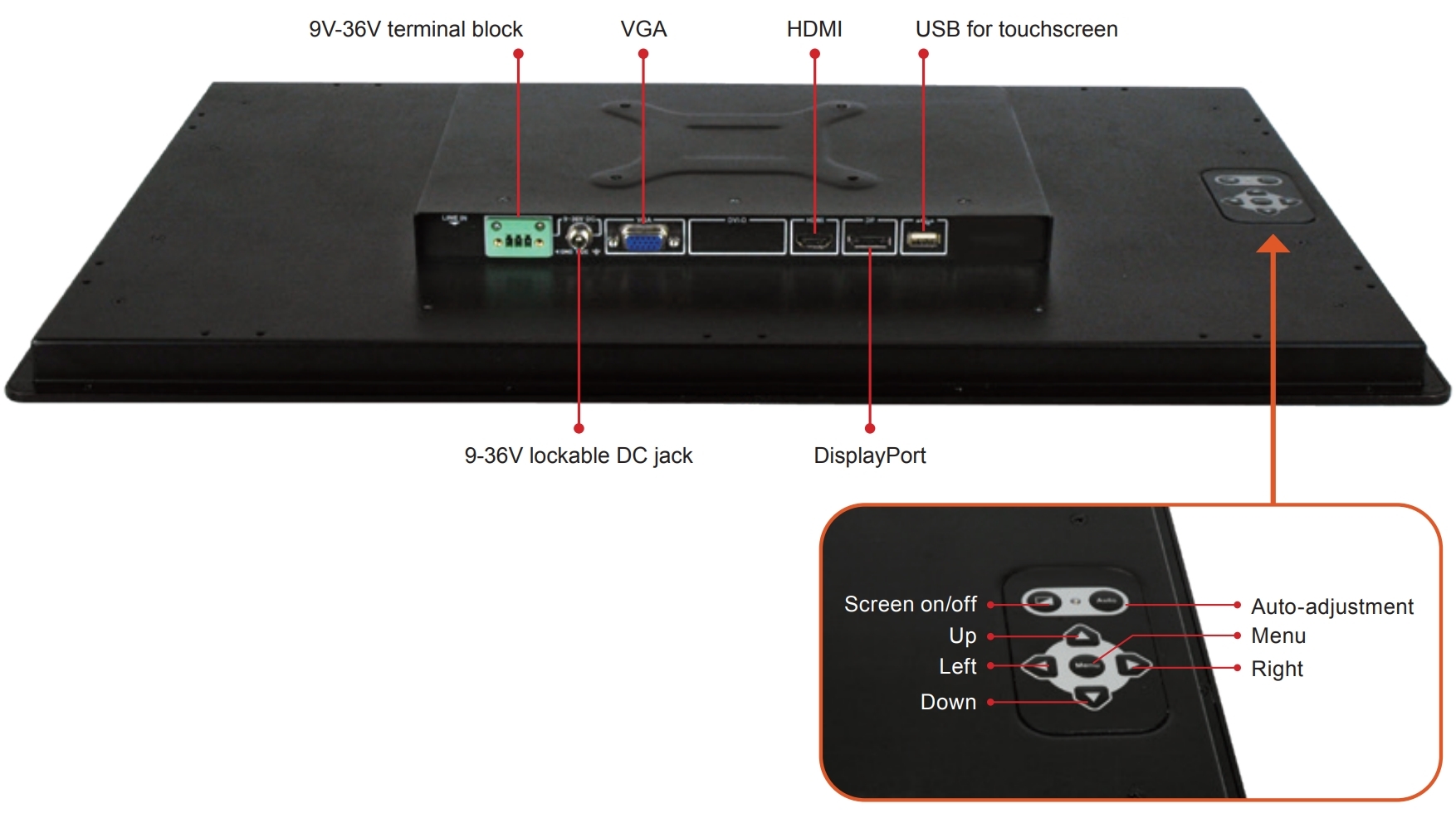

I/O Interface

I/O Ports and Switches

1 x VGA (DB-15)
1 x HDMI™
1 x DisplayPort 1.1
1 x USB 2.0 (touch)
1 x Lockable 12V DC jack
1 x 9V-36V terminal block

Power

Power adapter

9V~36V DC

Environment

Operating Temperature

-10°C ~ 50°C

Humidity

10% to 95% (non-condensing)

Storage Temperature

-20°C ~ 60°C

IP Level

IP 65 compliant front panel

Physical Characteristics

Dimensions (LxWxH) (mm)

382 x 600 x 49.4

Cutout Dimensions

358.6 x 576.6

LCD

LCD Color

16.7M

Pixel Pitch (mm)

0.28 x 0.28

Viewing Angle (H-V)

178° / 178°

Touch

Touch Screen

2-point projected capacitive touch window/ EETI EXC7200

Touch Controller

10-point Projected capacitive touch window, 6H/EETI EXC3188 (Anti-UV, Anti-Glare Surface)

Weight

7.6 / 10.9

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Display

LCD Size

24”(16:9)

Brightness(cd/m²)

250

Max Resolution

1920 (W) x 1080 (H)

Contrast Ratio

3000:1

Backlight MTBF(hrs)

30000

I/O Interface

I/O Ports and Switches

1 x VGA (DB-15)
1 x HDMI™
1 x DisplayPort 1.1
1 x USB 2.0 (touch)
1 x Lockable 12V DC jack
1 x 9V-36V terminal block

Power

Power adapter

9V~36V DC

Environment

Operating Temperature

-10°C ~ 50°C

Humidity

10% to 95% (non-condensing)

Storage Temperature

-20°C ~ 60°C

IP Level

IP 65 compliant front panel

Physical Characteristics

Dimensions (LxWxH) (mm)

382 x 600 x 49.4

Cutout Dimensions

358.6 x 576.6

LCD

LCD Color

16.7M

Pixel Pitch (mm)

0.28 x 0.28

Viewing Angle (H-V)

178° / 178°

Touch

Touch Screen

2-point projected capacitive touch window/ EETI EXC7200

Touch Controller

10-point Projected capacitive touch window, 6H/EETI EXC3188 (Anti-UV, Anti-Glare Surface)

Weight

7.6 / 10.9

Note

Note: Please read description carefully. Do not base your order on the picture presented.
