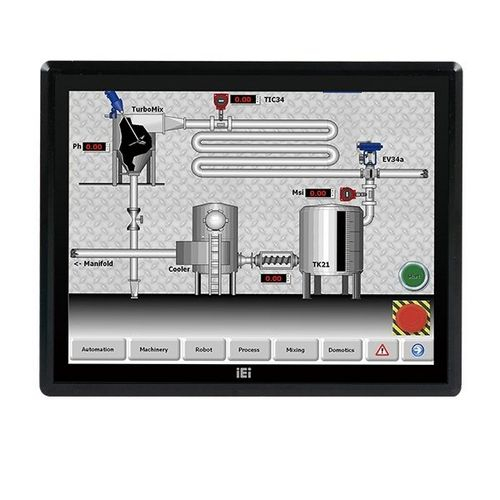

Buy IEi DM-F19A/R-R31, 19" SXGA LCD Monitor Resistive Screen

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Touchscreen:: Touchscreen: 5-Wire Resistive Single Touch Window

IEI, DM-F19A/R-R31, 19", 350 cd/m², SXGA LCD Monitor, Aluminum Die Casting Front Panel, Black Color, with USB Resistive Touch Screen, 9 ~36V DC Input, Powder Paint, R3

DM-F19A/R-R31 Includes Only:

1 x DM-F19A
1 x Touch Pen
1 x USB Cable
1 x VGA Cable

Features:

Robust IP65 aluminum front bezel
Aesthetic ultra-thin bezel for seamless panel mount installation
DC input
DVI / VGA flexible video input solution
Resistive single touch
Wide temperature support

Interfaces

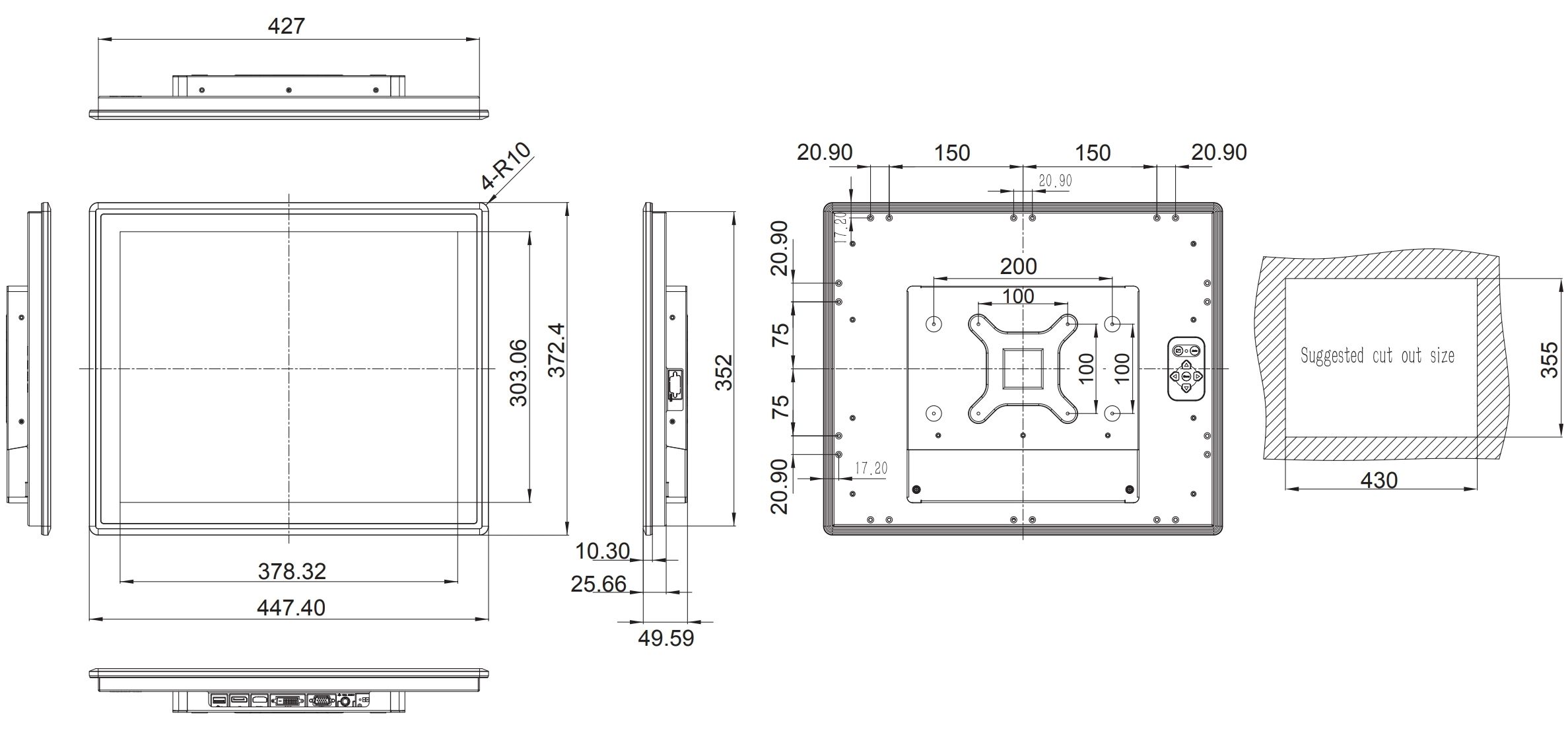

Dimensions

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Display

LCD Size

19”(4:3)

Brightness(cd/m²)

350

Max Resolution

1280 (W) x 1024 (H)

Contrast Ratio

1000:1

Backlight MTBF(hrs)

50000

I/O Interface

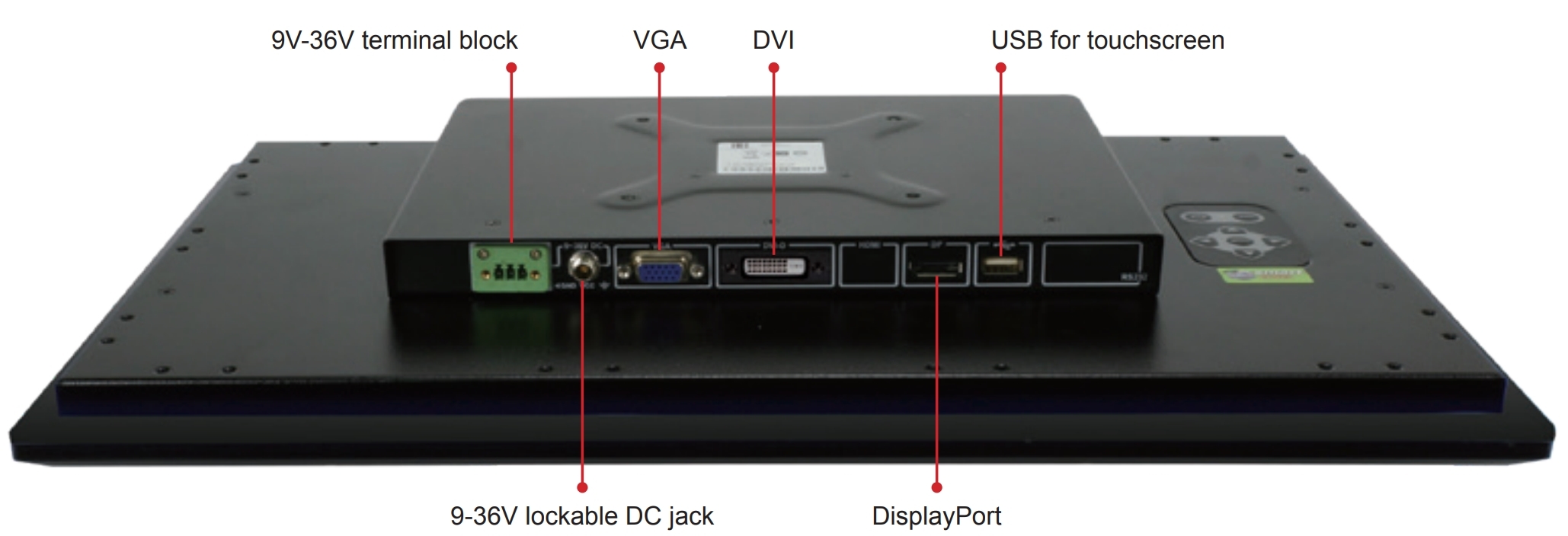

I/O Ports and Switches

1 x VGA (DB-15)
1 x DVI
1 x DisplayPort 1.1
1 x USB 2.0 (touch)
1 x RS-232
1 x Lockable 12V DC jack
1 x 9V-36V terminal block

Power

Power adapter

9V~36V DC

Environment

Operating Temperature

-20°C ~ 60°C

Humidity

10% to 95% (non-condensing)

Storage Temperature

-20°C ~ 70°C

IP Level

IP 65 compliant front panel

Physical Characteristics

Dimensions (LxWxH) (mm)

372.4 x 447.4 x 49.57

Cutout Dimensions

430 x 355

LCD

LCD Color

16.7M

Pixel Pitch (mm)

0.294 x 0.294

Viewing Angle (H-V)

170° / 160°

Touch

Touch Screen

2-point projected capacitive touch window/ EETI EXC7200

Touch Controller

5-wire resistive single touch window/ Penmount 6000

Weight

5.4 /8.4

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Display

LCD Size

19”(4:3)

Brightness(cd/m²)

350

Max Resolution

1280 (W) x 1024 (H)

Contrast Ratio

1000:1

Backlight MTBF(hrs)

50000

I/O Interface

I/O Ports and Switches

1 x VGA (DB-15)
1 x DVI
1 x DisplayPort 1.1
1 x USB 2.0 (touch)
1 x RS-232
1 x Lockable 12V DC jack
1 x 9V-36V terminal block

Power

Power adapter

9V~36V DC

Environment

Operating Temperature

-20°C ~ 60°C

Humidity

10% to 95% (non-condensing)

Storage Temperature

-20°C ~ 70°C

IP Level

IP 65 compliant front panel

Physical Characteristics

Dimensions (LxWxH) (mm)

372.4 x 447.4 x 49.57

Cutout Dimensions

430 x 355

LCD

LCD Color

16.7M

Pixel Pitch (mm)

0.294 x 0.294

Viewing Angle (H-V)

170° / 160°

Touch

Touch Screen

2-point projected capacitive touch window/ EETI EXC7200

Touch Controller

5-wire resistive single touch window/ Penmount 6000

Weight

5.4 /8.4

Note

Note: Please read description carefully. Do not base your order on the picture presented.
