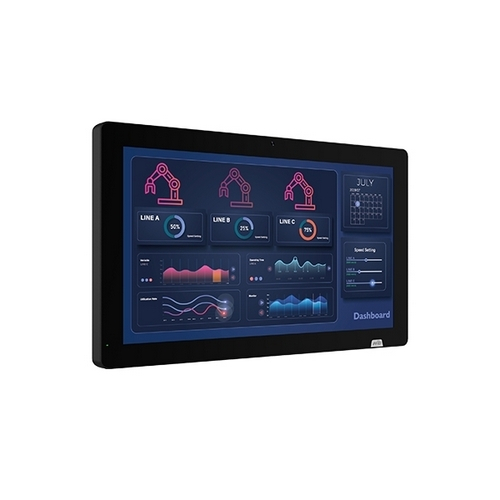

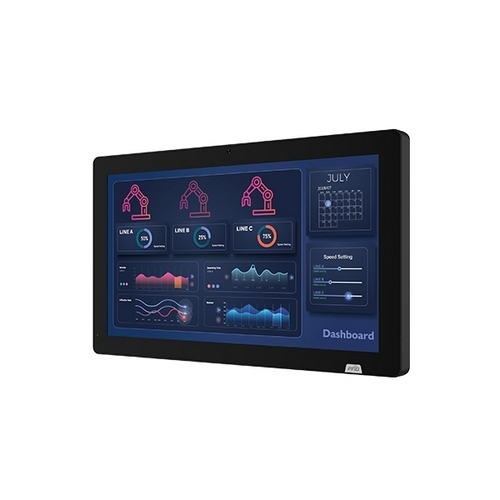

IEI, AFL3-W22C-ADLP-i3/8G-R10, AFOLUX Series Wide 21.5", 350cd/m², 1920x1080 Panel PC with 12th Generation Intel® Core™ i3-1220P on-Board Processor, PCAP Touch, 2M Camera, Microphone, 1x8GB DDR4 RAM, with AG, RoHS
AFL3-W22C-ADLP-i3/8G-R10 Includes Only:
- 1 x AFL3-W22C-ADLP
- 1 x Power Cord
- 1 x Power Adapter
- 1 x Quick Installation Guide
Features:
- 12th Gen Intel® Core™ Mobile i3 Processor
- Full HD capacitive touch screen
- Anti-AG and Anti-UV PCAP
- One E-Window that supports additional connector interface
- Support WiFi 6E and Bluetooth 5.2
- 10-point AG PCAP Touch with Anti-UV
- Wi-Fi 6E & Bluetooth 5.2
- Dual 2.5GbE
- IPMI Support
- Dual Storage
- Front Panel IP64
- Fanless
- Audiovisuals
Applications:
- Logistics
- Transportation
- Agriculture
- Gas Station
The AFL3-ADLP, a remarkable addition to IEI's AFOLUX series, is a fanless panel PC that boasts an appealing design tailored for the light industrial markets. Equipped with a powerful 12th Gen Intel Core processor, this panel PC ensures seamless performance even in demanding applications. With 8GB DDR4 memory, expandable up to 32GB, it offers ample space for multitasking and data storage. The AFL3-ADLP also features an optimized PCAP touchscreen for enhanced user experience and a wide range of I/O ports for connectivity convenience. Its inclusion of Wi-Fi 6E and Bluetooth 5.2 guarantees fast and reliable wireless communication, while the dual 2.5G LAN enables efficient data transfer. Additionally, the AFL3-ADLP series supports IEI IRIS2 modules, providing an IPMI 2.0 solution for efficient remote management that ensures optimal performance and minimizing downtime.
Unleashing Extraordinary Performance with the 12th Gen. Intel Core Processor
The AFL3-ADLP series incorporates the cutting-edge 12th Gen Intel® Core™ i3 processor, code name Alder Lake-P, to provide unmatched edge computing performance. This series excels in real-time IoT workload consolidation and AI inferencing. With a maximum of 12 cores, this powerful processor ensures exceptional multitasking capabilities and lightning-fast performance, reaching a burst frequency of 4.7GHz. Additionally, the AFL3-ADLP series boasts Intel® Iris® Xe graphics with up to 96 graphics execution units (EUs), enhancing graphics performance and enabling the panel PC to deliver high-quality visuals, ideal for imaging applications.

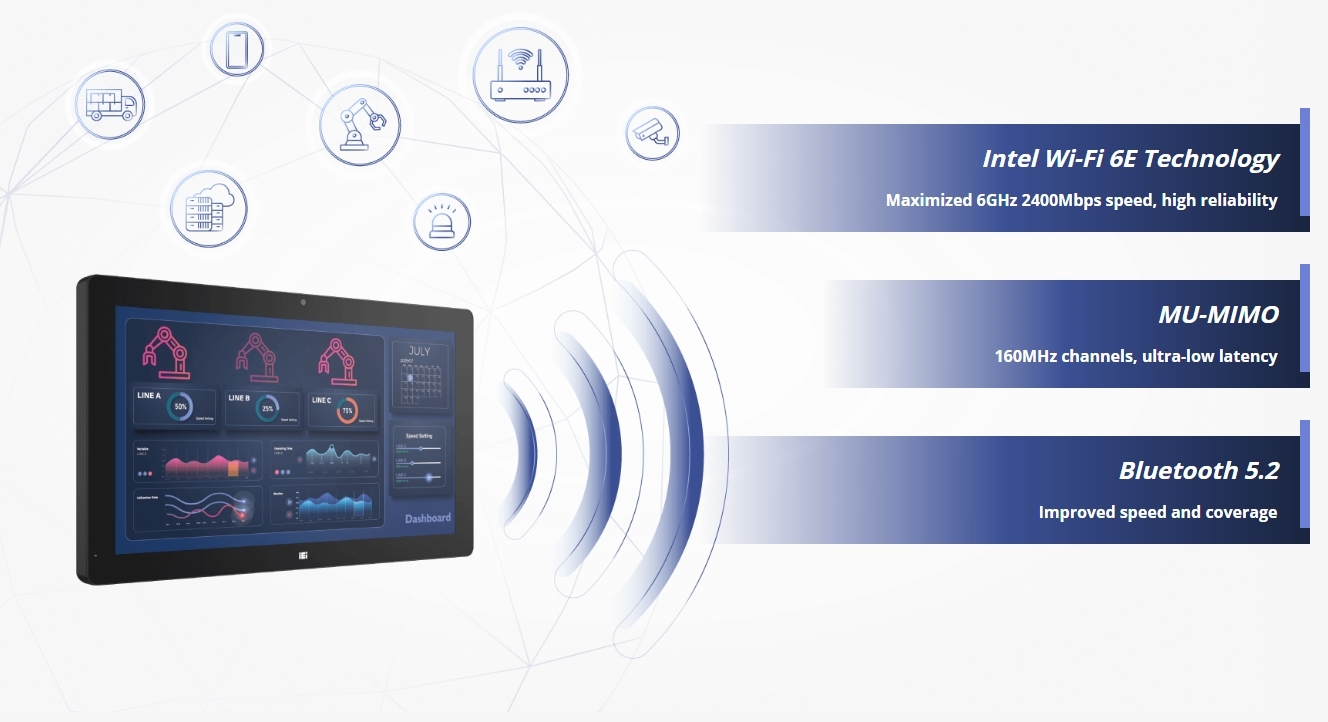

IoT Deployment Made Easy with Wireless Network Capability
The Internet of Things (IoT) encompasses various applications that have different connectivity requirements, necessitating both high bandwidth and low power and latency capabilities. The expansion of Wi-Fi into the 6 GHz band is crucial for supporting IoT devices in industrial settings worldwide, providing the necessary additional spectrum for Wi-Fi usage. The AFL3-ADLP industrial panel PC is equipped with an Intel® AX210 wireless module, featuring the advanced Wi-Fi 6E and Bluetooth 5.2 technologies, allowing businesses to work smarter, optimize processes, and unlock new possibilities for growth and innovation.

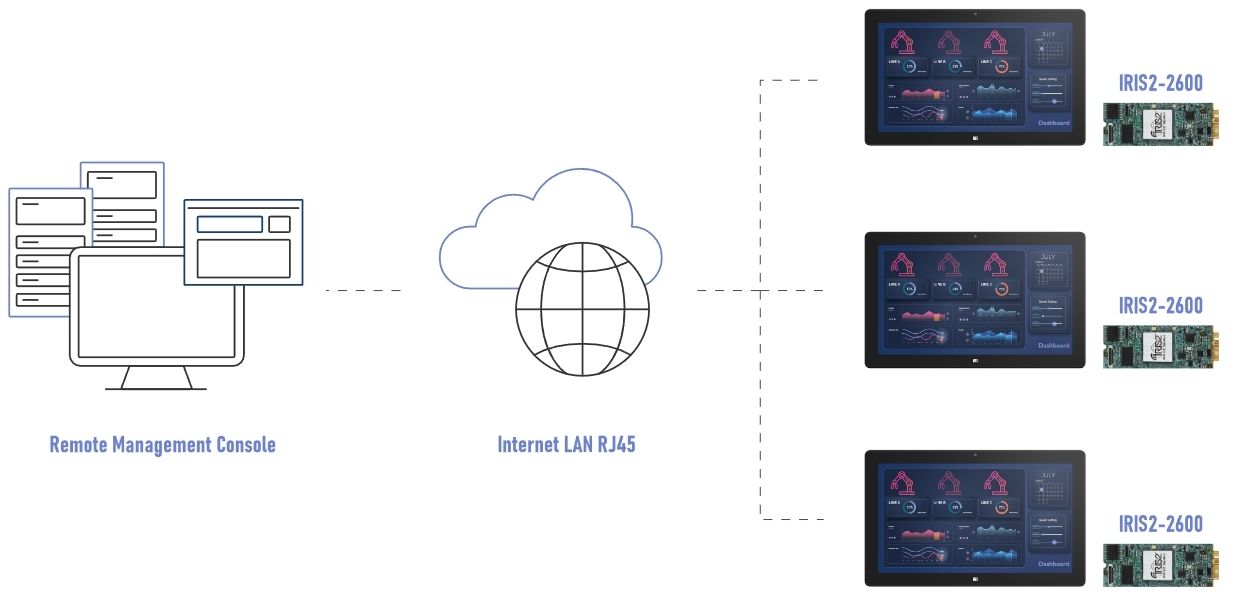

Support IPMI 2.0 for Out-of-band Management
The panel PC offers a range of advanced features, including the ability to provide IPMI 2.0 based remote management through the installation of an IEI IRIS2-2600 module. This allows for efficient out-of-band management, giving administrators easy access to the panel PC via the dedicated IPMI RJ45 port. With this functionality, administrators can perform tasks such as hardware health monitoring, secure remote KVM or virtual media access, and even remotely control power settings.

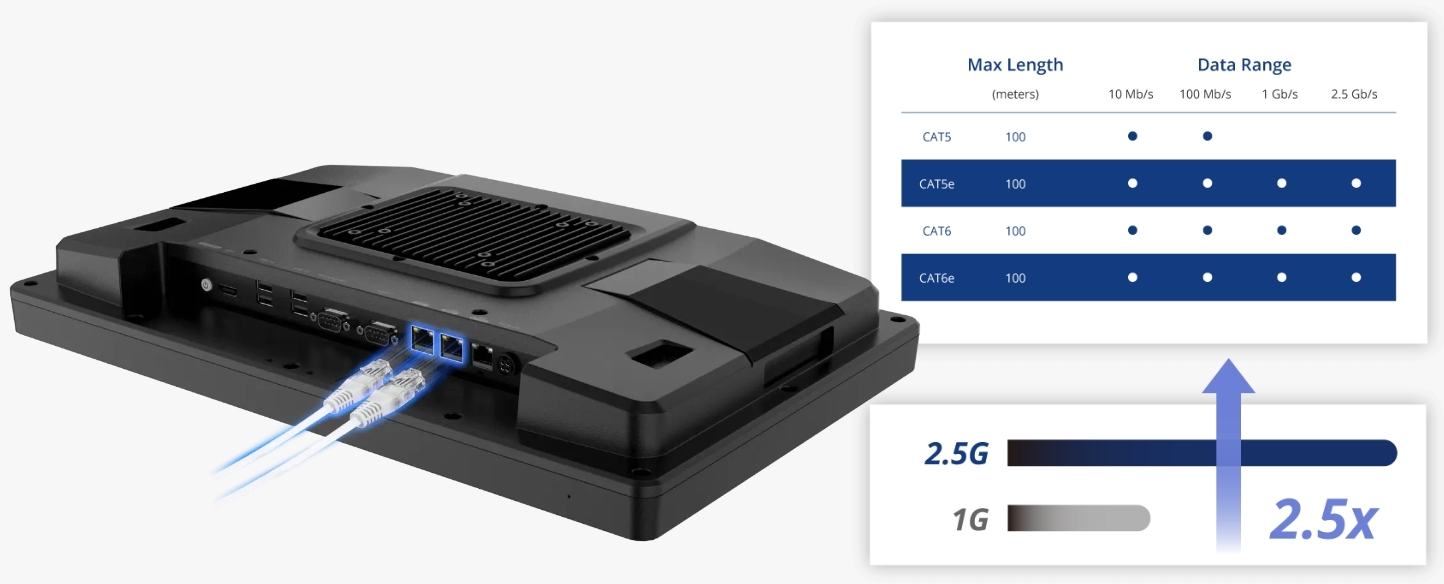

2.5GbE Connectivity - A Cost-Effective Solution for High-Bandwidth Workloads
With its two RJ45 LAN ports, the industrial panel PC offers 2.5GbE connectivity, allowing for a significant improvement in network performance. This enhanced speed is particularly beneficial for large-scale workloads that require high bandwidth. It allows users to achieve ultra-fast speeds without the need for cable changes, making it a cost-effective and efficient solution. With its backward compatibility and numerous benefits, 2.5G Ethernet is poised to become the go-to choice for businesses seeking to upgrade their network infrastructure and achieve lightning-fast internet speed.
PCAP Touch Screen with High Sensitivity, Visibility and Durability
With glass-glass PCAP touch technology and industrial-grade controllers, IEI's rugged touchscreen offers high sensitivity, visibility and durability for industrial applications. IEI AFOLUX panel PCs with this rugged touchscreen can work with gloves in harsh environments, such as food processing, chemical and beverage industries.
High Sensitivity
The 10-point touch enables the screen to detect and respond to multiple and complex touch inputs, even when the user is wearing gloves or has wet hands.

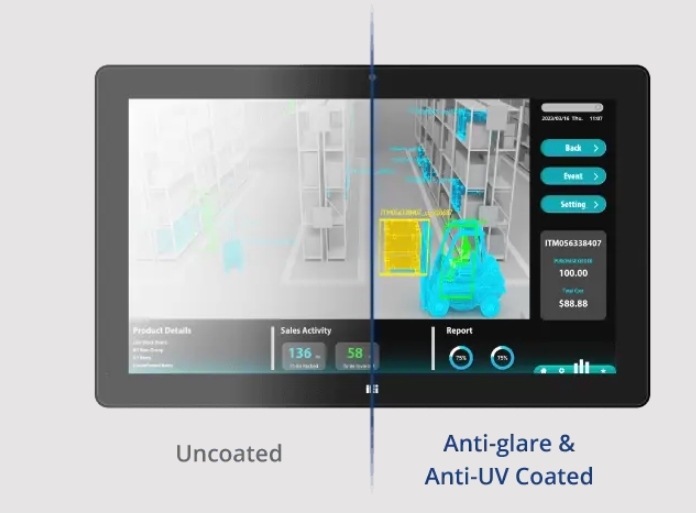

High Visibility
PCAP touchscreen has an anti-glare and anti-UV coating that prevents reflection and scratches, making it suitable for outdoor and bright light environments. It also has a high transmission rate of 87%, which ensures clear and bright images and text.
High Durability
The 7H scratch-resistant and UV-resistance strong glass protect the screen from physical and environmental damage.
- Blocks UV wavelengths less than ≈340nm
- Meets ASTM G154 performance criteria Cycle 1
Reliable Quality, Stable in Harsh Environment
Fanless
Quiet operation, free from dust accumulation, and no moving parts that can wear out
IP64 Front Panel
Withstands harsh environment, and prevents damage from dust or water ingress
0~50°C Operating Temperature
High and low temperature resistance

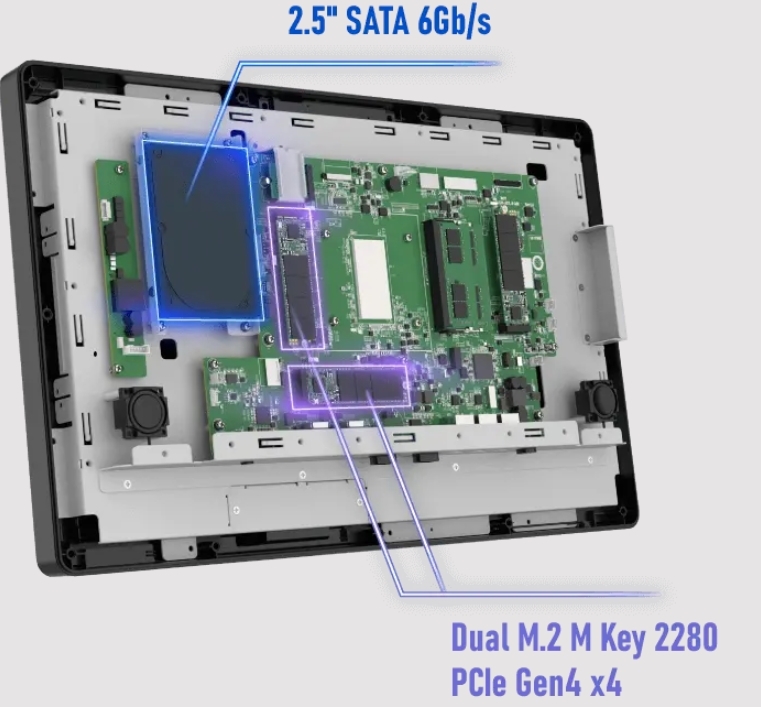

Dual M.2 NVMe and 2.5" SATA 6Gb/s - The Ultimate Storage Combination for Speed and Capacity
The AFL3-ADLP series provides flexible storage solutions to cater to diverse data storage requirements. It offers compatibility with both M.2 NVMe SSD and 2.5-inch SSD, enabling users to select the option that aligns with their specific needs. For real-time data processing and analysis in applications such as machine learning, surveillance, and industrial automation, the NVMe SSD slot emerges as an optimal choice, boasting a PCIe Gen4 x4 interface and impressive 64Gbps bandwidth that delivers exceptional performance capabilities.
Enhanced Flexibility and Convenience with E-Window Technology
The innovative E-Window technology offers a flexible solution for integrating various functions into the panel PC by utilizing modular components. With its standardized M.2 modules and I/O plates, system integrators can effortlessly customize and add new features without incurring significant costs. Furthermore, the easy maintenance and ability to replace modules with different ones make this technology a convenient choice for enhancing device functionality while minimizing downtime.

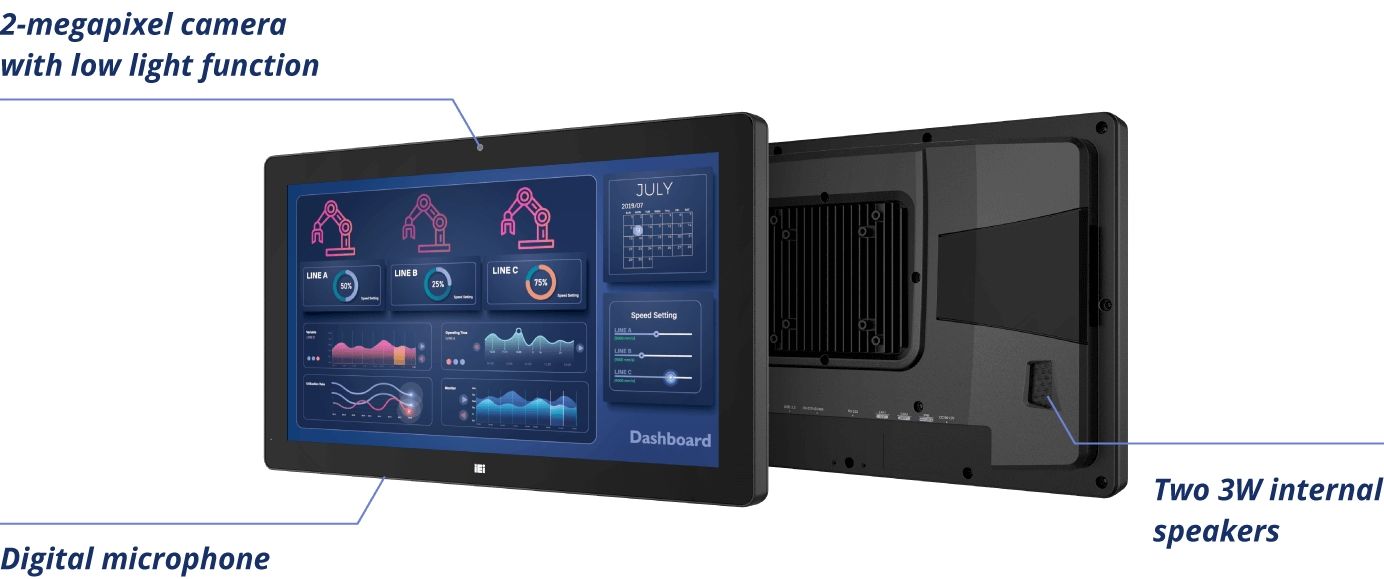

Advanced Audiovisual Features for Better Collaboration and Productivity
The AFL3-ADLP series offers a range of impressive audiovisual features that make it a versatile and efficient tool for various industries. The audiovisual features of the AFL3-ADLP series allow for remote monitoring and control of industrial processes, offering real-time insights that improve efficiency and safety. Moreover, its ability to provide interactive and multimedia content makes it suitable for applications in factory automation, retail, digital signage, transportation, and surveillance. With all these features integrated into one compact and rugged system, the industrial panel PC not only saves space but also reduces costs and maintenance.

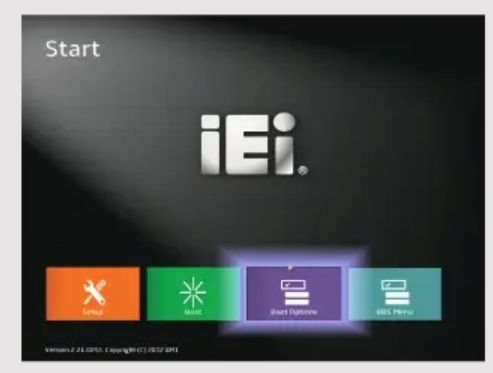

Touch-enabled BIOS
IEI's tBIOS allows users to navigate with finger on a touch-enabled monitor to make BIOS configuration easily. It helps eliminate excessive steps and unnecessary keyboard connection.
Shortcut to boot device setup
The main menu provides quick access to the boot device configuration, helping users save time on boot option priority setting.
Easy-access function keys
The BIOS function keys are arranged vertically on the side of the screen and indicated by icons, so that users can access them without the need of using a keyboard.

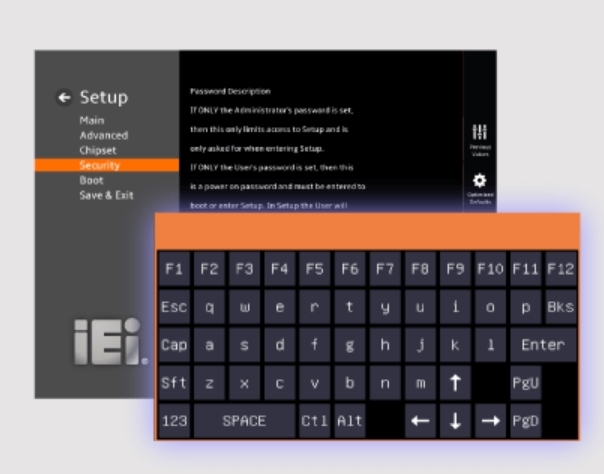

On-screen keyboard
An on-screen keyboard is available when it is needed to enter text in BIOS, such as administration password setup.
