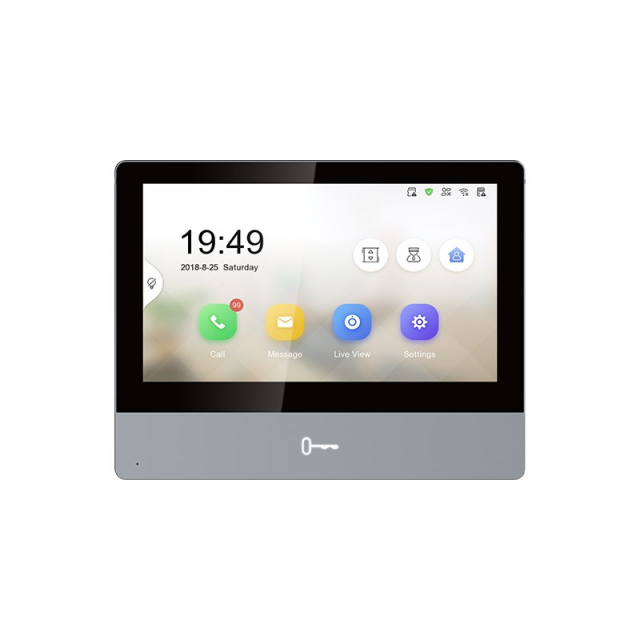

Buy Hikvision DS-KH8350-WTE1, Video Intercom Indoor Station, 7" IPS LCD

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Display Size:: Display Size: 7" Colorful IPS LCD

Features:

Premium Tempered Glass
Aerospace-Grade Aluminum
UI v2.0: User-Friendly Aluminum
7" Colorful IPS Capacitive Touch Screen with 1024 x 600 Resolution
8.6 mm Ultra-Slim Design
2017 Red Dot Design Award Winner
Standard PoE
Support Capture While Video Calling
Remote Unlocking via Client Software or Mobile Client
Views Live Videos of Door Stations and External Cameras

Hikvision's DS-KH8350-WTE1 Video Intercom Indoor Station features an 8.6 mm ultra-slim design, and a colorful 7" capacitive touch screen. It was a winner of the 2017 Red Dot Design Award. The indoor station can be combined with other Hikvision products and used to set up security solutions with varying levels of sophistication.

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Memory	128 MB
Flash	32 GB
Operation System	Embedded Linux operating system
Display Screen	7" colorful IPS LCD
Display Resolution	1024 x 600
Operation Method	Capacitive touch screen, physical button
Audio Input	Built-in omnidirectional microphone
Audio Output	Built-in loudspeaker
Audio Compression	Standard G.711 U
Audio Compression	Rate 64 kbps
Audio Quality	Noise suppression and echo cancellation
Wired Network	10/100 Mbps self-adaptive Ethernet
Wireless Network	Wi-Fi 802.11b/g/n
Network Protocol	TCP/IP, SIP, RTSP
Network Interface	1-port self-adaptive RJ-45 10/100 Mbps
Alarm Input	8-ch alarm inputs
I/O Output	2
TF Card	Up to 32 GB, SD 2.0 or lower
RS-485	Supported
Power Supply	12 VDC/1 A, IEEE802.3af, standard PoE
Power Supply via Detector	12 V, 200 mA
Power Consumption	≤7 W
Working Temperature	14° to 131° F (-10° to 55° C)
Working Humidity	10% to 95% non-condensing
Dimensions (W x H x D)	7.09" x 5.51" x 0.88" (180 mm x 140 mm x 22.4 mm)
Mounting	Surface mount
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE, UL, CB, RCM

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Memory	128 MB
Flash	32 GB
Operation System	Embedded Linux operating system
Display Screen	7" colorful IPS LCD
Display Resolution	1024 x 600
Operation Method	Capacitive touch screen, physical button
Audio Input	Built-in omnidirectional microphone
Audio Output	Built-in loudspeaker
Audio Compression	Standard G.711 U
Audio Compression	Rate 64 kbps
Audio Quality	Noise suppression and echo cancellation
Wired Network	10/100 Mbps self-adaptive Ethernet
Wireless Network	Wi-Fi 802.11b/g/n
Network Protocol	TCP/IP, SIP, RTSP
Network Interface	1-port self-adaptive RJ-45 10/100 Mbps
Alarm Input	8-ch alarm inputs
I/O Output	2
TF Card	Up to 32 GB, SD 2.0 or lower
RS-485	Supported
Power Supply	12 VDC/1 A, IEEE802.3af, standard PoE
Power Supply via Detector	12 V, 200 mA
Power Consumption	≤7 W
Working Temperature	14° to 131° F (-10° to 55° C)
Working Humidity	10% to 95% non-condensing
Dimensions (W x H x D)	7.09" x 5.51" x 0.88" (180 mm x 140 mm x 22.4 mm)
Mounting	Surface mount
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE, UL, CB, RCM

Note

Note: Please read description carefully. Do not base your order on the picture presented.
