Buy Hikvision DS-D5022FN-C, 21.5" FHD Borderless Monitor American Standard

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

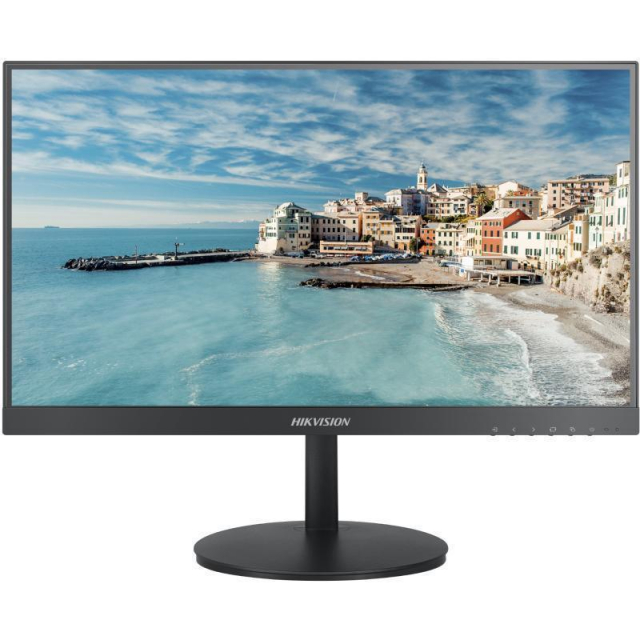

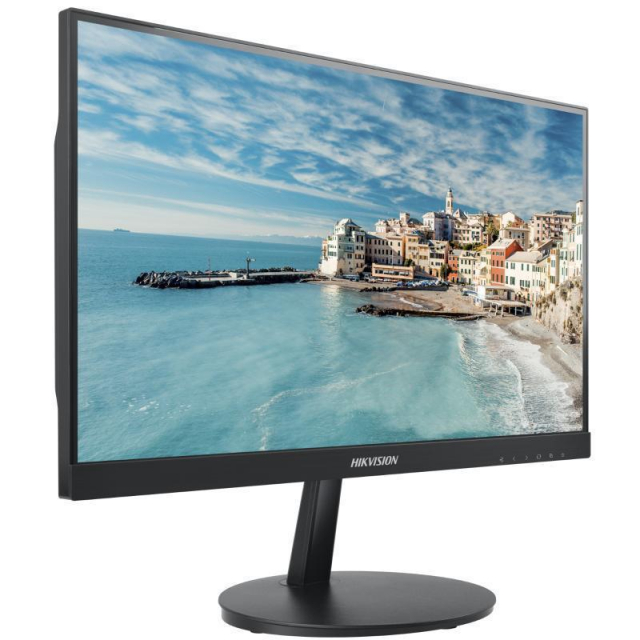

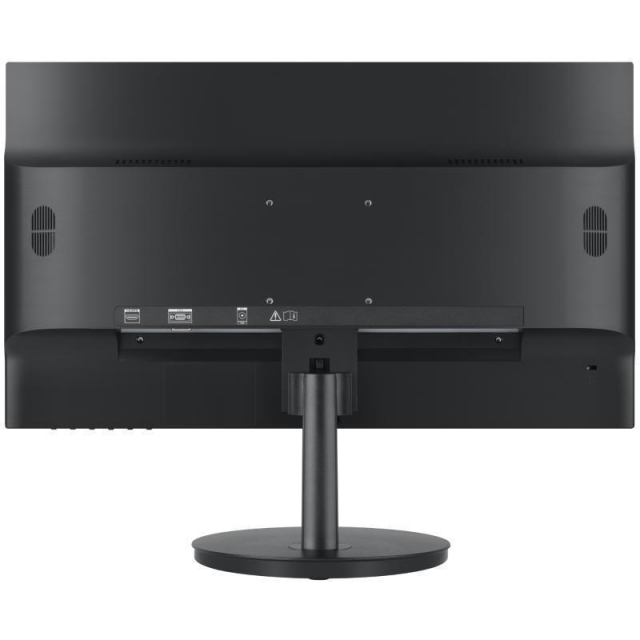

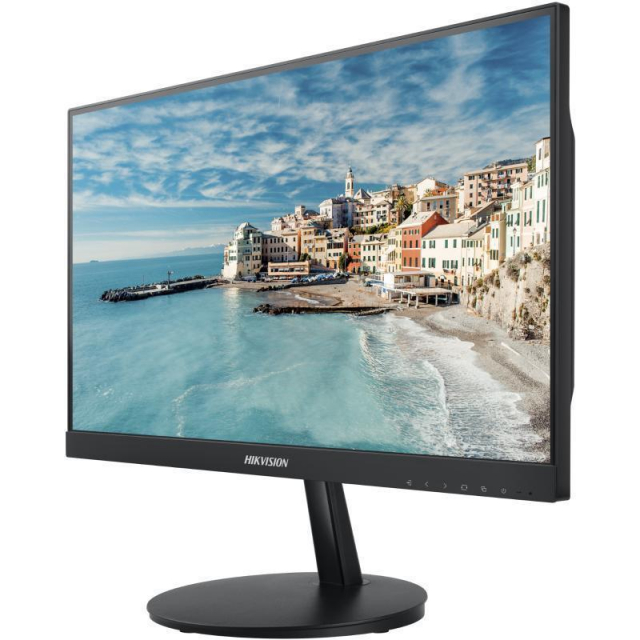

Hikvision, DS-D5022FN-C, 21.5" FHD Borderless Monitor (American Standard)

DS-D5022FN-C Includes Only:

Monitor x1
AC power cable x 1
Base bracket x 1
User manual x 1
Quick start guide x 1
HDMI cable x 1

Features:

Ultra-thin device body with ultra-thin border for 3 sides.
2 channels of 8 bit/10 bit LVDS HD (1920 x 1080) display.
178° ultra-wide view screen.
3D noise reduction.
Low blue light design for eye care.
Dual interface of HDMI and VGA.
Support VESA wall mount.

For more information, please see pdf file Data Sheet

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Display

Screen Size

21.5 inch

Active Display Area

478.656 (H) mm x 260.28 (V) mm

Resolution

1920 x 1080

Backlight

E-LED

Pixel Pitch

0.0831 (H) mm x 0.241 (V) mm

Brightness

250 cd/m²

Viewing Angle

178°(H)/178°(V)

Color Depth

8 bit

Contrast Ratio

3000:1

Response Time

6.5 ms

Refresh Rate

60 Hz

Haze

25%

Reliability

7 x 24 h

Color Gamut

72% NTSC

Interface

Video & Audio Input

HDMI 1.4 x 1, VGA x 1

Power

Power Supply

100 to 240 VAC, 50/60 Hz

Power Consumption

≤ 22 W

Standby Consumption

≤ 0.5 W

Working Environment

Working Temperature

0 °C to 40 °C (32 °F to 104 °F)

Working Humidity

20% to 90% RH (without condensation)

Storage Temperature

–20 °C to 60 °C (–4 °F to 140 °F)

Storage Humidity

10% to 90% RH (without condensation)

General

Casing Material

Plastic

VESA

75 mm x 75mm，4-M6 x 6 screw holes

Bezel Width

Top: 1.88 mm, bottom: 19 mm, left: 1.88 mm, right: 1.88 mm

Product Dimensions (W x H x D)

With base: 492.356 (W) mm x 390.11 (H) mm x 200.20 (D) mm (19.38'' x15.36'' x 7.88'')
Without base: 492.356 (W) mm x 289.680 (H) mm x 43.88 (D) mm (19.38'' x 11.40'' x 1.73'')

Package Dimensions (W x H x D)

647 (W) mm x 111 (H) mm x 406 (D) mm (25.49 '' x 4.37 '' x 15.99 '')

Net Weight

2.6 ± 0.5 kg (5.7 ± 1.1 lb.)

Gross Weight

4.0 ± 0.5 kg (8.8 ± 1.1 lb.)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Display

Screen Size

21.5 inch

Active Display Area

478.656 (H) mm x 260.28 (V) mm

Resolution

1920 x 1080

Backlight

E-LED

Pixel Pitch

0.0831 (H) mm x 0.241 (V) mm

Brightness

250 cd/m²

Viewing Angle

178°(H)/178°(V)

Color Depth

8 bit

Contrast Ratio

3000:1

Response Time

6.5 ms

Refresh Rate

60 Hz

Haze

25%

Reliability

7 x 24 h

Color Gamut

72% NTSC

Interface

Video & Audio Input

HDMI 1.4 x 1, VGA x 1

Power

Power Supply

100 to 240 VAC, 50/60 Hz

Power Consumption

≤ 22 W

Standby Consumption

≤ 0.5 W

Working Environment

Working Temperature

0 °C to 40 °C (32 °F to 104 °F)

Working Humidity

20% to 90% RH (without condensation)

Storage Temperature

–20 °C to 60 °C (–4 °F to 140 °F)

Storage Humidity

10% to 90% RH (without condensation)

General

Casing Material

Plastic

VESA

75 mm x 75mm，4-M6 x 6 screw holes

Bezel Width

Top: 1.88 mm, bottom: 19 mm, left: 1.88 mm, right: 1.88 mm

Product Dimensions (W x H x D)

With base: 492.356 (W) mm x 390.11 (H) mm x 200.20 (D) mm (19.38'' x15.36'' x 7.88'')
Without base: 492.356 (W) mm x 289.680 (H) mm x 43.88 (D) mm (19.38'' x 11.40'' x 1.73'')

Package Dimensions (W x H x D)

647 (W) mm x 111 (H) mm x 406 (D) mm (25.49 '' x 4.37 '' x 15.99 '')

Net Weight

2.6 ± 0.5 kg (5.7 ± 1.1 lb.)

Gross Weight

4.0 ± 0.5 kg (8.8 ± 1.1 lb.)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
