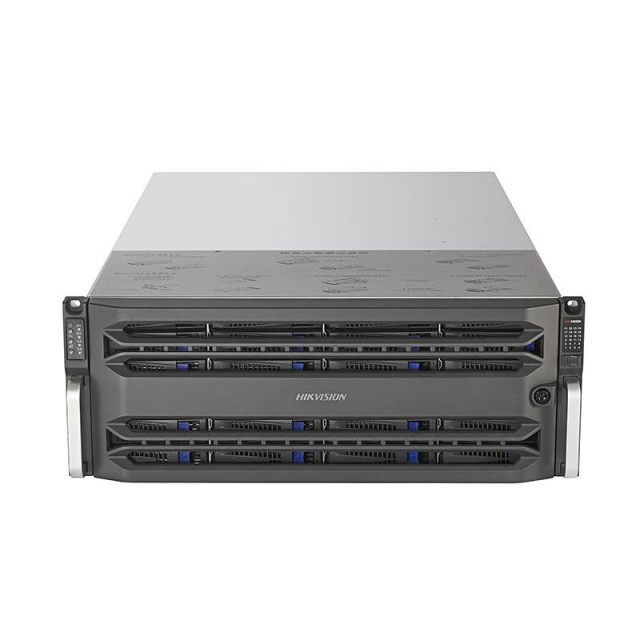

Buy Hikvision DS-AJ7824D, Storage Enclosure HDD

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

Mini SAS 3.0 Interface with Transmission Ability that is 4x Faster than 12G
Cascading Extension Supported
HDD SAS Interfaces Supported
Up to 12 TB Capacity for Each HDD

The DS-AJ7824D storage enclosure is a storage product designed for large-scale video surveillance projects. It can rapidly expand storage space, which reduces overall costs, and provides highly reliable functions and features such as hot swapping, redundant power supply, and a redundant fan.

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Number of Controllers	2
SAS Interface	(Upper-Level) 2 (12 Gbps)
SAS Interface	(Lower-Level) 1 (12 Gbps)
Number of HDD	Interfaces 24
HDD Interface	Type SAS
HDD Hot Swapping	Supported
Power Supply	Redundant (1+1)
Chassis	4U
Dimensions	(W x D x H) 17.6" x 6.8" x 20.7" (447 mm x 172 mm x 525 mm)
Weight	(without HDD) 88.2 lbs (40 kg)
Consumption	(with maximum HDD) ≤ 550 W
Working Temperature	41° to 104° F (5° C to 40° C)
Storage Temperature	-4° to 158° F (-20° C to 70° C)
Working Humidity	20 to 80% (non-condensing/frozen)
Storage Humidity	5 to 90% (non-condensing/frozen)

Product Details

Number of Controllers	2
SAS Interface	(Upper-Level) 2 (12 Gbps)
SAS Interface	(Lower-Level) 1 (12 Gbps)
Number of HDD	Interfaces 24
HDD Interface	Type SAS
HDD Hot Swapping	Supported
Power Supply	Redundant (1+1)
Chassis	4U
Dimensions	(W x D x H) 17.6" x 6.8" x 20.7" (447 mm x 172 mm x 525 mm)
Weight	(without HDD) 88.2 lbs (40 kg)
Consumption	(with maximum HDD) ≤ 550 W
Working Temperature	41° to 104° F (5° C to 40° C)
Storage Temperature	-4° to 158° F (-20° C to 70° C)
Working Humidity	20 to 80% (non-condensing/frozen)
Storage Humidity	5 to 90% (non-condensing/frozen)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
