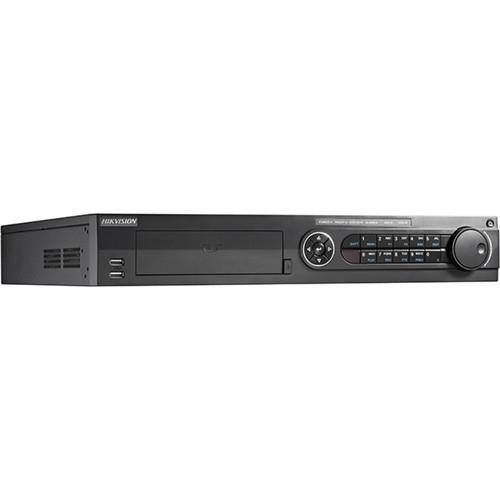

Hikvision DS-7316HUI-K4-32TB 16-Channel 5MP HD-TVI DVR with 32TB HDD

Stream and record up to 16 video channels with the DS-7316HUI-K4 TurboHD HD-TVI DVR from Hikvision at resolutions of up to 5MP. Equipped with four SATA ports, each supporting an HDD of up to 8TB, this DVR can accommodate up to 32TB of internal storage (32TB preinstalled). The recorder supports HD-TVI and SD analog cameras via its BNC interface. Additionally, it has a two-channel IP video input for IP cameras up to 8MP. With the help of H.265+, H.265, H.264+, and H.264 compression, file sizes are kept manageable while recording and playback quality are maintained. The DVR's interface includes RCA ports for two-way audio communication, as well as BNC, HDMI, and VGA connections for video output with support for dual streaming to maximize bandwidth efficiency. The HDMI connection can output up to 4K UHD resolution video.

Features:

• VGA output at up to 1920 x 1080 resolution
• HDMI output at up to 4K UHD resolution (3840 x 2160)
• H.265+, H.265, H.264+, and H.264 main stream encoding
• Self-adaptive HD-TVI/CVBS signal input
• Supports long-distance transmission over UTP and coaxial cable to a maximum of 3937' at 720p and 2625' at 1080p
• 16-channel synchronous playback
• Supports IP cameras up to 8MP
• Dual stream support
• Supported analytics include line crossing, intrusion, scene change detection, people counting, heat map functionality, and Video Quality Diagnostics (VQD)
• 1 x USB 3.0 and 2 x USB 2.0 ports
• RS-232, full-duplex RS-485, and keyboard serial interfaces
• 16 alarm inputs and four alarm outputs
• CSA, FCC, CE, and cUL certified
