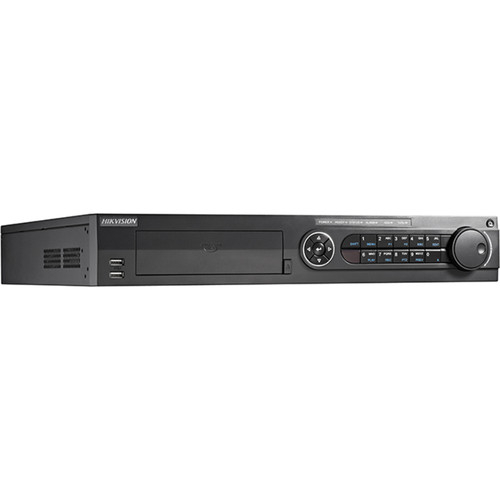

Hikvision DS-7316HQI-K4-16TB 16-Channel 3MP DVR with 16TB HDD

  • Brand Hikvision
  • Part # DS-7316HQI-K4-16TB
  • Condition
    Brand New
    Availability
    Contact Us
    Quantity
    Share:
    Ask a question

    The DS-7316HQI-K4 TurboHD 16-Channel 3MP DVR with 16TB HDD from Hikvision enables you to record from and manage up to 16 cameras. This DVR offers full channel recording at up to 3MP resolution. It comes with a 16TB HDD preinstalled. Storage is expandable to four SATA HDDs, each with a maximum 8TB capacity, for a total of 32TB. A BNC interface supports HD-TVI and analog cameras. Additionally, IP cameras up to 4MP are supported. H.265+, H.265, H.264+, and H.264 video compression keep file sizes manageable while maintaining quality. An RCA connector offers two-way audio communication. In addition, there are HDMI and VGA connections for video output with support for dual streaming to maximize bandwidth efficiency. The HDMI connection can output up to 4K UHD resolution video.

    Features:

    • Self-adaptive HD-TVI/CVBS signal input
    • Supports long-distance transmission over UTP and coaxial cable to a maximum of 3937' at 720p and 2625' at 1080p
    • 16-channel synchronous playback support
    • Supports IP cameras up to 4MP
    • Dual stream support
    • Supported analytics include line crossing, intrusion, scene change detection, people counting, heat map functionality, and Video Quality Diagnostics (VQD)
    • 1 x USB 3.0 and 2 x USB 2.0 ports
    • Self-adaptive 1000M Ethernet interface
    • RS-232, RS-485, and serial interface for a keyboard
    • 16 alarm inputs and four alarm outputs
    • CSA, FCC, CE, and cUL certified
    See more product information See less
    Return and Warranty

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    SignalAnalog, HD-TVI, IP
    Number of Channels16 (Synchronous)
    Playback ResolutionCVBS:
    704 x 576 (PAL)
    704 x 480 (NTSC)
    HD-TVI:
    3 MP
    1920 x 1080 at 30 fps
    1280 x 720 at 60 fps
    HDMI:
    3840 x 2160 at 30 Hz
    2560 x 1440 at 60 Hz
    1920 x 1080 at 60 Hz
    1280 x 1024 at 60 Hz
    1280 x 720 at 60 Hz
    1024 x 768 at 60 Hz
    VGA:
    1920 x 1080 at 60 Hz
    1280 x 1024 at 60 Hz
    1280 x 720 at 60 Hz
    1024 x 768 at 60 Hz
    Recording Resolution3 MP at 15 fps
    1080p at 15 fps
    720p at 30 fps
    VGA at 30 fps
    WD1 at 30 fps
    4CIF at 30 fps
    CIF at 30 fps
    PTZ SupportYes
    Bit Rate32 kb/s to 6 Mb/s (Video)
    64 kb/s (Audio)
    IP Camera Support2 (18 Expansion)
    Dual StreamingYes
    Encoding Resolution1080p, 720p, 4CIF, CIF, VGA, WD1, 3 MP
    A/V Ports1 x VGA Output
    2 x RCA Audio Output (1 Kilohm, Linear)
    4 x RCA Audio Input (2 V p-p, 1 Kilohm)
    Analog, Coaxitron: 16 x BNC Video Output (1 V p-p, 75 Ohm)
    CVBS: 1 x BNC Video Output (1 V p-p, 75 Ohm)
    Communication Ports1 x RJ45 Gigabit Ethernet
    1 x RS-232
    1 x RS-485 (Full-Duplex)
    1 x USB Type-A USB 3.1 / USB 3.2 Gen 1 (Rear)
    2 x USB Type-A USB 2.0 (Front)
    Audio Connections16 Inputs
    4 Outputs
    Drive Interfaces4 x SATA
    Remote Connections128
    Network ProtocolsDDNS, DHCP, DNS, HTTPS, Hik-Connect, NFS, NTP, ONVIF, PPPoE, SADP, TCP/IP, UPnP, iSCSI
    Product Details
    SignalAnalog, HD-TVI, IP
    Number of Channels16 (Synchronous)
    Playback ResolutionCVBS:
    704 x 576 (PAL)
    704 x 480 (NTSC)
    HD-TVI:
    3 MP
    1920 x 1080 at 30 fps
    1280 x 720 at 60 fps
    HDMI:
    3840 x 2160 at 30 Hz
    2560 x 1440 at 60 Hz
    1920 x 1080 at 60 Hz
    1280 x 1024 at 60 Hz
    1280 x 720 at 60 Hz
    1024 x 768 at 60 Hz
    VGA:
    1920 x 1080 at 60 Hz
    1280 x 1024 at 60 Hz
    1280 x 720 at 60 Hz
    1024 x 768 at 60 Hz
    Recording Resolution3 MP at 15 fps
    1080p at 15 fps
    720p at 30 fps
    VGA at 30 fps
    WD1 at 30 fps
    4CIF at 30 fps
    CIF at 30 fps
    PTZ SupportYes
    Bit Rate32 kb/s to 6 Mb/s (Video)
    64 kb/s (Audio)
    IP Camera Support2 (18 Expansion)
    Dual StreamingYes
    Encoding Resolution1080p, 720p, 4CIF, CIF, VGA, WD1, 3 MP
    A/V Ports1 x VGA Output
    2 x RCA Audio Output (1 Kilohm, Linear)
    4 x RCA Audio Input (2 V p-p, 1 Kilohm)
    Analog, Coaxitron: 16 x BNC Video Output (1 V p-p, 75 Ohm)
    CVBS: 1 x BNC Video Output (1 V p-p, 75 Ohm)
    Communication Ports1 x RJ45 Gigabit Ethernet
    1 x RS-232
    1 x RS-485 (Full-Duplex)
    1 x USB Type-A USB 3.1 / USB 3.2 Gen 1 (Rear)
    2 x USB Type-A USB 2.0 (Front)
    Audio Connections16 Inputs
    4 Outputs
    Drive Interfaces4 x SATA
    Remote Connections128
    Network ProtocolsDDNS, DHCP, DNS, HTTPS, Hik-Connect, NFS, NTP, ONVIF, PPPoE, SADP, TCP/IP, UPnP, iSCSI
