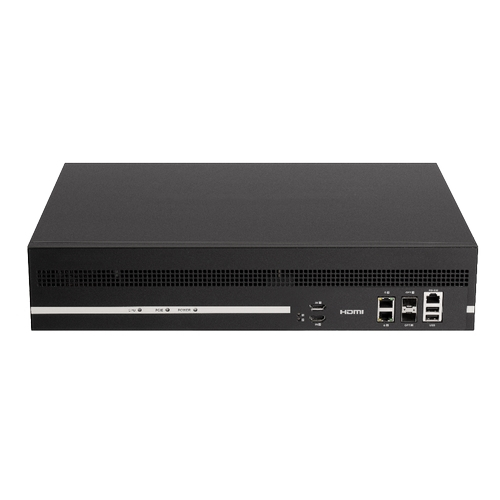

Buy Hikvision DC16, Ultra High Definition Decoder Video Wall Size 16

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Wall Size:: Wall Size: 16

Features:

Support computer, video conference terminals and other devices to serve as video input signal source.
Support HDMI 4K signal inputs.
Support network camera, NVR, and other devices to serve as network signal source.
Support embedded HDMI audio input; audio input supports 16 bit and 48K Hz, two audio channels and stereo sound.
Support 2-ch 1080p@50/60 or 1-ch 4K@30 encoding via HDMI 1.4 input interface.
Support 4K (3840 x 2160@30 Hz) UHD video output via HDMI 1.4 output interface.
Support two audio output methods: embedded HDMI audio output and external audio output.
Adopt frame synchronization technology to ensure complete synchronization of images from all output ports, complete pictures, smooth playback, and without lag, frame loss, tearing or splicing.
Support H.264 and H.265 encoding of input boards, and sub-stream and mainstream encoding; the default encoding format is H.264.
Support network cameras, NVR, and other network sources decoding of output boards, sub-stream and main stream decoding including H.264, H.265, Smart264, Smart265, MJPEG, HIK264 and main encapsulation formats such as PS, RTP, TS, ES.
Support up to 256 video decoding channels and simultaneously decoding of 128-ch 2 MP or 256-ch 720p video decoding on the wall.
Support decoding streams of multiple resolution no more than 32 MP.
Support rotate mode of front-end cameras decoding and up to 2560 x 1440 decoding output.

DC16 is capable of outputting decoded video via HDMI 1.4, BNC (to DB15) interfaces, and also supports multiple video stream formats, like H.265, H.264, MJPEG, Smart264 and Smart265, which has good decoding performance. It supports H.265/H.264 decoding no more than 32 MP and 4K ultra-high-definition (UHD) video output.

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Product Model	DC16
Alarm In	8-ch alarm in
Alarm Out	8-ch alarm out
Serial Interface	RS-232 (RJ45) x 1, RS-485 x 1
USB Interface	USB 2.0 x 2
Network Interface	RJ45 x 2, 10 M/100 M/1000 Mbps self-adaptive Ethernet interface, Optic Interface x 2 100 base-FX/1000 base-X, Supports optoelectronic self-adaptation
Video Walls	1
Video Wall Size	≤ 16
Layers Per Screen	1080p x 3 or 4K x 1.5
Layers	Layers Per Screen x Output Interface(s)
Split Window	yes
Scenes	64
Scene Auto-Switch Delay	3 s
Split Screen	1, 2, 4, 6, 8, 9, 12, 16, 25
Background Images	Background color only
Subtitles	N/A (optional to support)
Delay of Displaying Local Signal Source on Video Wall	120 ms
Delay of Displaying Decoded Signal Source on Video Wall	120 ms
Auto-Switching Plans	Support 256 auto-switching plans
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10％ RH to 90％ RH
Net Weight	< 8.42 kg (18.56 lb)
Gross Weight	8.42 kg (18.56 lb)
Power Consumption	< 150 W
Packing List	Decoder x 1, DB15M to 4 x BNC (4-ch CVBS Video Patch Wire) x 2, DB15M to 8 x BNC (8-ch Audio Patch Wire) x 2, Quick Start art Guide x 1, Regulatory Compliance and Safety Information x 1, Hanger x 1, Power Cord x 1, Mat x 4, Grounding Wire x 1
Dimensions (W x H x D)	440 mm x 321 mm x 88 mm (17.32'' x 12.64'' x 3.64'')
Power Supply	100 to 240 VAC
Audio Input Interfaces	2
Audio Input Interface Type	embedded HDMI audio input
Video Input Resolution	3840 x 2160@30 Hz, 1920 x 1080@50 Hz, 1920 x 1080@60 Hz, 1280 x 720@50/60 Hz
Video Input Interfaces	2
Video Input Interface Type	2-ch: HDMI 1.4
Max. Input Resolution	4K
Video Encoding Channel	2
Video Encoding Format	H.265/H.264, Default H.264
Video Encoding Capability	1-ch: 4K 30, 2-ch: 1080p 60
Audio Encoding Format	G722.1, G711U, G711A, AAC-LC
Max. Output Resolution	4K
Video Output Interface Type	HDMI 1.4
Video Output Interface(s)	16
Video Output Resolution	3840 x 2160@30 Hz, 2560 x 1440@30 Hz, 1920 x 1200@60 Hz, 1920 x 1080@60 Hz, 1920 x 1080@50 Hz, 1680 x 1050@60 Hz, 1600 x 1200@60 Hz, 1280 x 1024@60 Hz, 1280 x 720@60 Hz, 1280 x 720@50 Hz, 1024 x 768@60 Hz
Video Output Resolution (BNC)	PAL: 704 x 576@25 Hz, NTSC: 704 x 480@30 Hz
Video Output Interface (BNC)	4-ch: DB15 to BNC
Video Decoding Format	H.264, H.265, SmartH.264, SmartH.265, MJPEG
Video Decoding Resolution	Up to 32 MP
Video Decoding Channel(s)	256
Video Decoding Capability	Support 8-ch 32 MP/24 MP/16-ch 12 MP/32-ch 8 MP/40-ch 6 MP/64-ch 4 MP/128-ch 1080p/256-ch 720p and below real-time decoding (4 outputs in a group, sharing decoding capabilities)
Audio Output Interface Type	embedded HDMI audio output or DB15 to BNC independent audio output
Audio Output Interface(s)	16
Audio Decoding Format	G711A, G711U, G722.1, G726-16/U/A, MPEG, AAC-LC, PCM

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Product Model	DC16
Alarm In	8-ch alarm in
Alarm Out	8-ch alarm out
Serial Interface	RS-232 (RJ45) x 1, RS-485 x 1
USB Interface	USB 2.0 x 2
Network Interface	RJ45 x 2, 10 M/100 M/1000 Mbps self-adaptive Ethernet interface, Optic Interface x 2 100 base-FX/1000 base-X, Supports optoelectronic self-adaptation
Video Walls	1
Video Wall Size	≤ 16
Layers Per Screen	1080p x 3 or 4K x 1.5
Layers	Layers Per Screen x Output Interface(s)
Split Window	yes
Scenes	64
Scene Auto-Switch Delay	3 s
Split Screen	1, 2, 4, 6, 8, 9, 12, 16, 25
Background Images	Background color only
Subtitles	N/A (optional to support)
Delay of Displaying Local Signal Source on Video Wall	120 ms
Delay of Displaying Decoded Signal Source on Video Wall	120 ms
Auto-Switching Plans	Support 256 auto-switching plans
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10％ RH to 90％ RH
Net Weight	< 8.42 kg (18.56 lb)
Gross Weight	8.42 kg (18.56 lb)
Power Consumption	< 150 W
Packing List	Decoder x 1, DB15M to 4 x BNC (4-ch CVBS Video Patch Wire) x 2, DB15M to 8 x BNC (8-ch Audio Patch Wire) x 2, Quick Start art Guide x 1, Regulatory Compliance and Safety Information x 1, Hanger x 1, Power Cord x 1, Mat x 4, Grounding Wire x 1
Dimensions (W x H x D)	440 mm x 321 mm x 88 mm (17.32'' x 12.64'' x 3.64'')
Power Supply	100 to 240 VAC
Audio Input Interfaces	2
Audio Input Interface Type	embedded HDMI audio input
Video Input Resolution	3840 x 2160@30 Hz, 1920 x 1080@50 Hz, 1920 x 1080@60 Hz, 1280 x 720@50/60 Hz
Video Input Interfaces	2
Video Input Interface Type	2-ch: HDMI 1.4
Max. Input Resolution	4K
Video Encoding Channel	2
Video Encoding Format	H.265/H.264, Default H.264
Video Encoding Capability	1-ch: 4K 30, 2-ch: 1080p 60
Audio Encoding Format	G722.1, G711U, G711A, AAC-LC
Max. Output Resolution	4K
Video Output Interface Type	HDMI 1.4
Video Output Interface(s)	16
Video Output Resolution	3840 x 2160@30 Hz, 2560 x 1440@30 Hz, 1920 x 1200@60 Hz, 1920 x 1080@60 Hz, 1920 x 1080@50 Hz, 1680 x 1050@60 Hz, 1600 x 1200@60 Hz, 1280 x 1024@60 Hz, 1280 x 720@60 Hz, 1280 x 720@50 Hz, 1024 x 768@60 Hz
Video Output Resolution (BNC)	PAL: 704 x 576@25 Hz, NTSC: 704 x 480@30 Hz
Video Output Interface (BNC)	4-ch: DB15 to BNC
Video Decoding Format	H.264, H.265, SmartH.264, SmartH.265, MJPEG
Video Decoding Resolution	Up to 32 MP
Video Decoding Channel(s)	256
Video Decoding Capability	Support 8-ch 32 MP/24 MP/16-ch 12 MP/32-ch 8 MP/40-ch 6 MP/64-ch 4 MP/128-ch 1080p/256-ch 720p and below real-time decoding (4 outputs in a group, sharing decoding capabilities)
Audio Output Interface Type	embedded HDMI audio output or DB15 to BNC independent audio output
Audio Output Interface(s)	16
Audio Decoding Format	G711A, G711U, G722.1, G726-16/U/A, MPEG, AAC-LC, PCM
