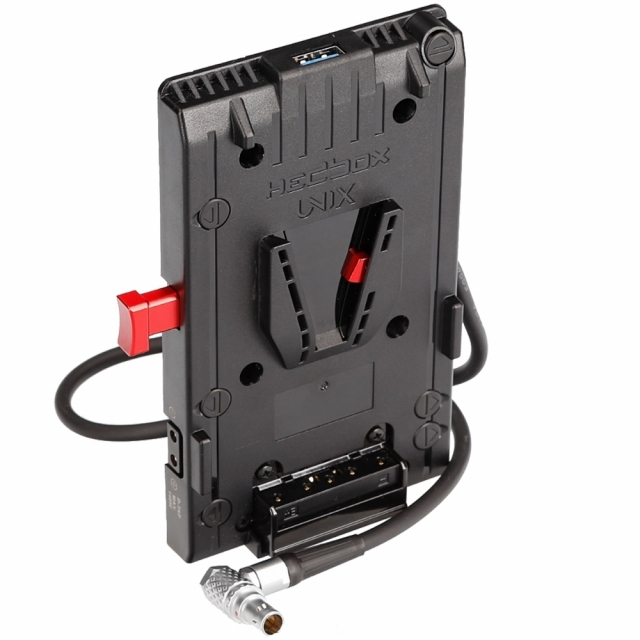

Hedbox, UNIX-0BL, Power V-Lock Adaptor Plate with Male Right Angle Connector
UNIX-0BL Includes Only:
- 1 x UNI-0bLX V-lock Power Adaptor Plate
- 1 x Screw Set (4 x M3x12 screw)
- 1 x User Manual (English)
- Supplied Connector Push Pul FHG.0B.302 Male - Right Angle
Features:
- V Lock Mount (High Dur Aluminium)
- 1 x USB Output 5.1V / 2.1A
- 3 x D-Tap Output 14.8V / 5A
- 1 x 50cm Power Cable with OBL type Professional push pul Conector"
Hedbox UNIX-0BL V-Lock Mount Professional Cine Battery Plate with 1 x USB (5.1V/2.1A) + 3x D-Tap (14.8V/10A) and 1x Breakaway 50cm Cable with 2-pin Push Pull FHG.1B.302 Male Right Angle Connector.
UNIX Professional Cine Battery V-Mount Plate enables the use of V-Lock battery packs on cameras and/or numerous professional peripherals simultaneously. Featuring a high-quality aluminiumv-lock release, Hedbox UNIX plates are designed and tested for up to 10,000 battery cycles.Three (3) D-Tap DC Power Outputs provide 14.8V/10A for extra devices and peripherals such as on-board recorders, LED lights, monitors, remote follow focus, wireless transmitters etc.A built-in USB 5V / 2.1A Power Output is located on the top of the UNIX plate.Designed with versatility in mind UNIX plates have multiple mounting holes to provide universal camera connection or peripheral mounting - 4x M3x12 screws are included with UNIX to mount the plate as required. The UNIX-0BL includes a hard-wired 50cm power cable with 2-pin Push Pull FHG.1B.302 Male Right Angle Connector that can be used to power Teradek products, and various professional photo/video devices that accept FGG.0B.302 or FHG.1B.302 Connectors.
Supplied Breakaway 50cm DC Cable with 2-pin Push Pul FGG.0B.302 Male Right Angle Connector
With an installed breakaway DC power cable, UNIX-0BL can be used to power various cameras and devices in the video and photo market. The breakaway cable is a 50cm long, standard 2-pin Push Pul FGG.0B.302 Male Right Angle connector.
High Quality Aluminium V-lock Release
Adopting technology that allowed us to use a high-quality aluminum alloy V-lock release, the lock and unlock provides up to 10,000 cycles for a V-mount battery on the Unix plate
3 x D-Tap DC Power Output
Unix provides three D-Tap 14.8V DC power outputs. Three D-taps allow for extra powering for cameras, on board recorders, LED lights, monitors, remote follow focus, wireless transition systems, etc.
Multiple Mounting holes for universal camera connection
With multiple mounting holes, (4 x M3x12 screws provided) Unix is able to mount on to any device or camera connection.
Build-in USB 5V / 2.1A Power Out Socket
The USB 5V/2.1A output can be used to power any external USB electronic devices. This function allows you to use the Unix V-lock plate like a power station to charge your cell phone, tablet, or any other electronic devices that can be powered with USB 5V power.
Metal Back Panel Support
With full Metal Back panel, UNIX body have durable and strong support. This provides a strong and firm connection between Camera or other electronic devices and UNIX plate itself.
Design made in Switzerland
With R&D (research & developing) department located in Switzerland - Europe, Hedbox team has an innovative approach to battery and power management product design.
Eco-Green Consistency
All materials used in Hedbox Products meet the highest eco-green requirements. Actively protecting the environment and preserving the highest standards of environmental protection.
IATA Transport Regulations
All Hedbox warehouses around the world are trained and certified according to the latest IATA guidelines. This enables safe packaging and preparation for the transport of all products worldwide via air, road and sea.
For more information, please see
Data Sheet and User Manual
