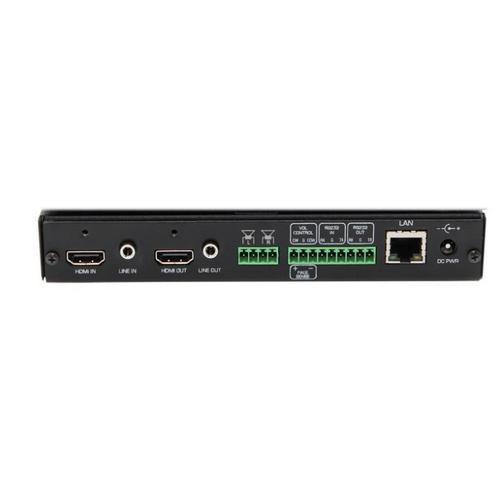

Hall Research EMX-I-AMP 4K HDMI Audio Extractor with Audio Amplifier

Hall Research, EMX-I-AMP, 4K HDMI Audio Extractor with Audio Amplifier, RS-232 and IP Control

The EMX-I-AMP is a 4K HDMI Audio Extractor with a built-in 50-watt audio amplifier for direct connection of 8-ohm speakers. It provides an additional line-level stereo audio input that can be mixed with the HDMI audio. The built-in WebGUI can control the basic functions of this model via LAN. Volume can also be controlled using front panel buttons, RS-232 commands, or via an external rotary digital encoder. An independent RS-232 output port can be used to control other devices. IP control adds Telnet and a WebGUI. This gives the user the ability to control the device through a PC or Smartphone. Telnet control uses the same commands as the serial interface. You can power the device on and off, select the Audio Mix, control volume up/down/mute functions, and if you have programmed RS-232 ON and OFF commands for your display, you can also control the power of the TV (or set it for Auto where the commands are automatically sent based on video detection). The webpage has buttons and indicators that show the state of that feature. The indicators are active even if buttons are disabled. The EMX-I-AMP can pass commands from its RS-232 input to the RS-232 output. It also has the ability to store user-defined ON and OFF commands for controlling devices connected to its RS-232 output (e.g. to control power on/off function of display). The stored RS-232 commands can be triggered automatically (based on detecting HDMI input) or manually by user command (RS-232), or contact closure.

Features:

• 4K HDMI audio extractor with EDID management
• Built-in 50 watt audio amp for direct connection to 8 Ohm speakers (25 watts/channel)
• Audio input for connecting line-level audio inputs (e.g. wireless microphones).
• Control via, front panel, RS-232, digital pot (rotary encoder), Webpage or Telnet
• HDMI Ducking (when Line input is detected, HDMI sound volume in the mix is automatically lowered)
• Primary RS-232 port for device control
• Secondary RS-232 port for auxiliary device control
• Store separate ON/OFF RS-232 commands for the auxiliary devices
• Supports HDMI, DVI, HDCP, 3D and Deep color
• Stereo or Mono output
• Priority Paging Sensor input (for automatically muting of the audio output)
• Compact, Rugged, Reliable, and Economical
