Grass Valley FGAN IQHIP1001B-RP IQHIP10 Content Monitoring Module

Grass Valley, FGAN IQHIP1001B-RP, IQHIP10 3G/HD/SD-SDI Hyperion Intelligent Processing and Content Monitoring Module, 7 SDI Main or Monitoring OSD Outputs

The IQHIP10 is a sophisticated monitoring module for multichannel playout facilities that continuously and automatically provides analysis and alarm reporting of signal content including video, audio and metadata verification to ensure that legal and technical obligations are met. With the delivery of video thumbnail images and audio level monitoring, the IQHIP10 can provide a secondary manual level of confidence that content is correct at both internal and remote locations. The IQHIP10 can be integrated with all major video display wall processors and through the RollMap Network Management system or via SNMP to other vendors' control and monitoring systems.

Features:

• Intelligent 3G/HD/SD-SDI processing module with integrated Hyperion QC monitoring
• Dedicated monitoring outputs with OSD for Hyperion audio/video alarms and audio level meter information
• Real-time content QC against genre profiles ensures any on-air issues are identified with minimal potential impact on revenue, such as scheduling errors or dropped frames on commercial content
• Remote monitoring over TCP/IP via video thumbnails
• Legal and technical validation of signal including detection and reporting of closed captions, content advisory rating, XDS program data
• Automated ingest QC significantly increases throughput efficiency over manual QC processes

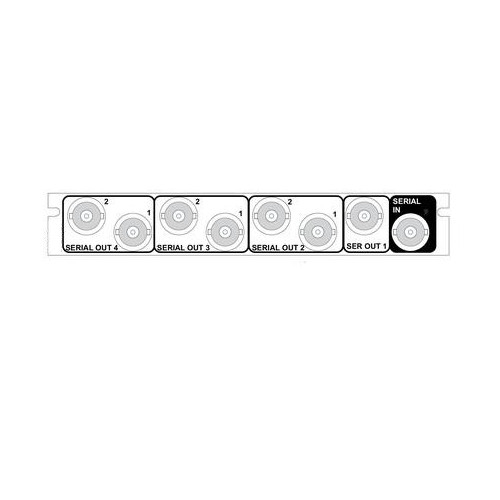

• Single SFP cage version suitable for fiber optic transmitter and receiver options, DIN or HD-BNC SDI input or outputs, and HDMI output option for local monitoring
