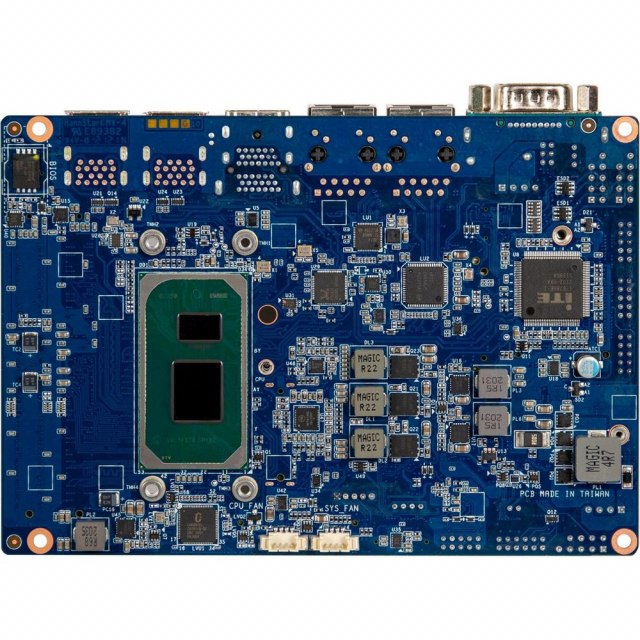

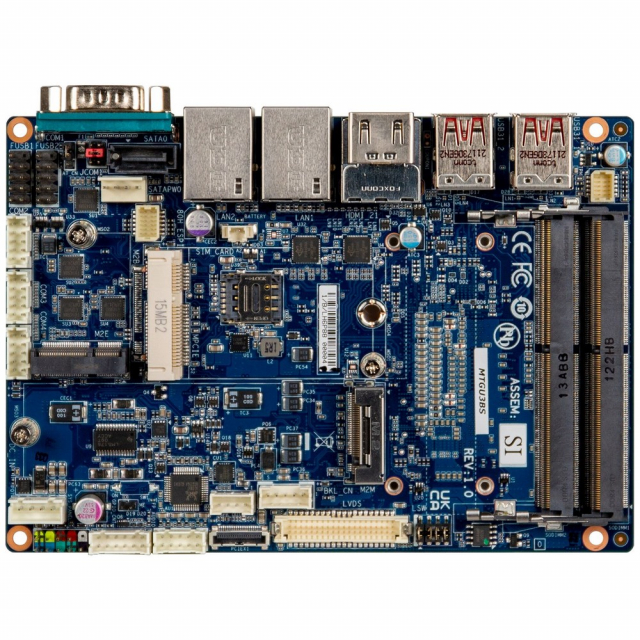

Gigabyte, QBIP-1135G7B, 3.5" SubCompact Motherboard with 11th Generation Intel Core i5-1135G7 Processor, Dual Channel DDR4 memory, 4 x COM, 1 x SATA 6Gb/s, 4 x USB 3.2 Gen 2x1, 4 x USB 2.0

Features:

3.5" SBC
Intel® Core™ i5-1135G7 Processor
Dual Channel DDR4, 2 x SO-DIMMs
2 x GbE LAN Ports
1 x SATA 6Gb/s Port
Ultra-Fast M.2 with PCIe Gen3 x2 interface

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Form Factor

3.5" SBC
146W x 101.7D(mm)

CPU

Intel® Core™ i5-1135G7 Processor
10nm SuperFin, 4 cores, 8 threads, up to 4.2 GHz
TDP 28W
8 MB Smart Cache

Socket

1 x FCBGA1449

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules

Ethernet

2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)

Video

Integrated Graphics Processor - Intel® Iris® X° Graphics: 2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 at60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200 at60Hz

(3 independent display outputs)

Audio

Realtek® Audio Codec

Storage

1 x SATA 6Gb/s Port (SATA RAID 0/1)

Expansion Slots

1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot
1 x PCIe x1 (Board to Wire connector, PCIe Gen3 x1)

Internal I/O

1 x 4-pin box power connector (DC in +9V~48VDC)
1 x SATA Power header
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
4 x USB 2.0 headers
3 x COM headers (RS-232/422/485)
1 x Backlight Control header
1 x AT/ATX mode select jumper
1 x GPIO (8-bits) & SMBus header
1 x SPI header

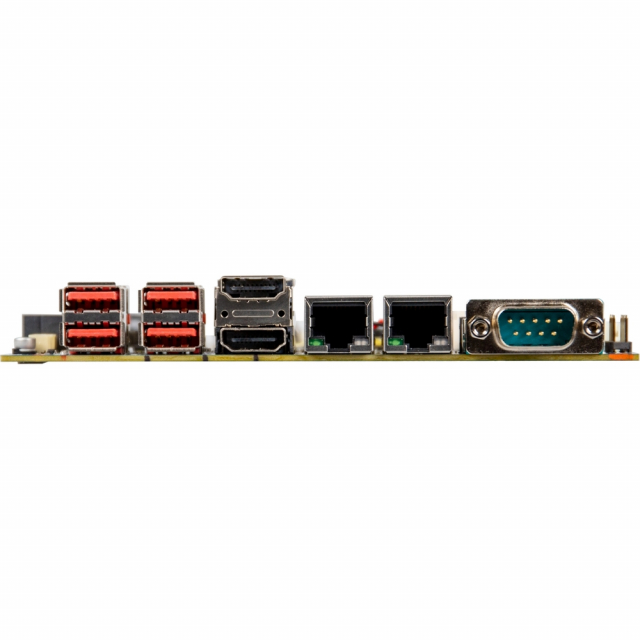

Rear I/O

1 x COM Port (RS-232/422/485 & RI/5V/12V)
2 x HDMI
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Form Factor

3.5" SBC
146W x 101.7D(mm)

CPU

Intel® Core™ i5-1135G7 Processor
10nm SuperFin, 4 cores, 8 threads, up to 4.2 GHz
TDP 28W
8 MB Smart Cache

Socket

1 x FCBGA1449

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules

Ethernet

2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)

Video

Integrated Graphics Processor - Intel® Iris® X° Graphics: 2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 at60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200 at60Hz

(3 independent display outputs)

Audio

Realtek® Audio Codec

Storage

1 x SATA 6Gb/s Port (SATA RAID 0/1)

Expansion Slots

1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot
1 x PCIe x1 (Board to Wire connector, PCIe Gen3 x1)

Internal I/O

1 x 4-pin box power connector (DC in +9V~48VDC)
1 x SATA Power header
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
4 x USB 2.0 headers
3 x COM headers (RS-232/422/485)
1 x Backlight Control header
1 x AT/ATX mode select jumper
1 x GPIO (8-bits) & SMBus header
1 x SPI header

Rear I/O

1 x COM Port (RS-232/422/485 & RI/5V/12V)
2 x HDMI
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1
