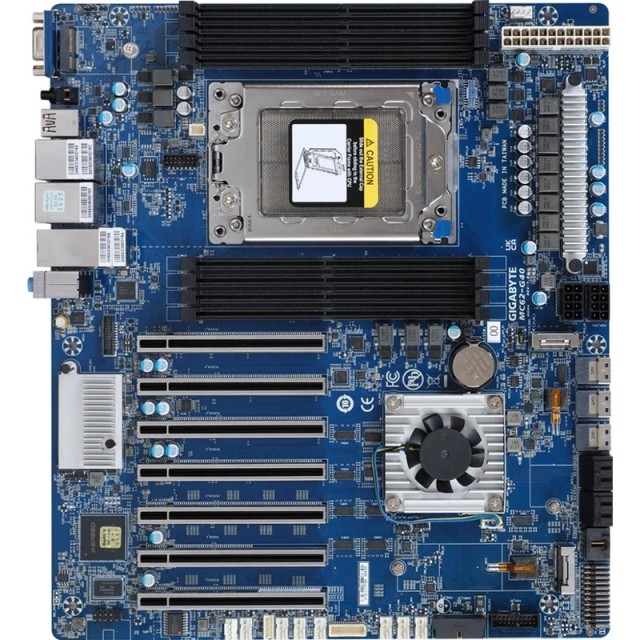

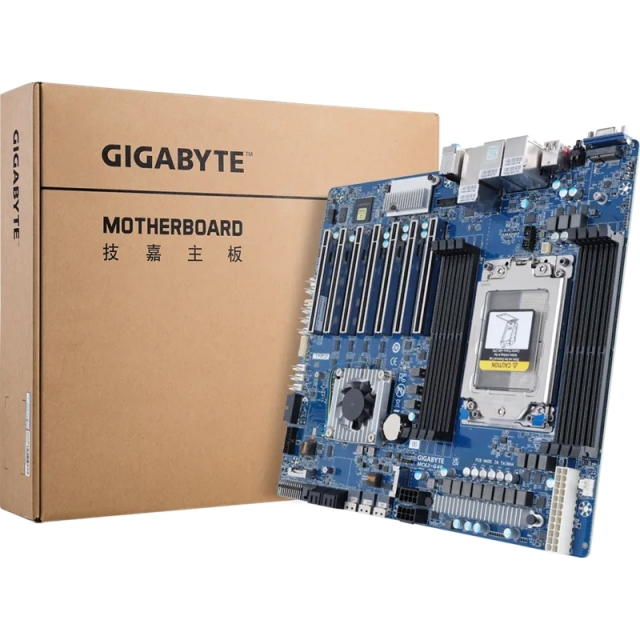

Gigabyte, MC62-G40, AMD Ryzen Threadripper PRO 3000WX Processors Motherboard

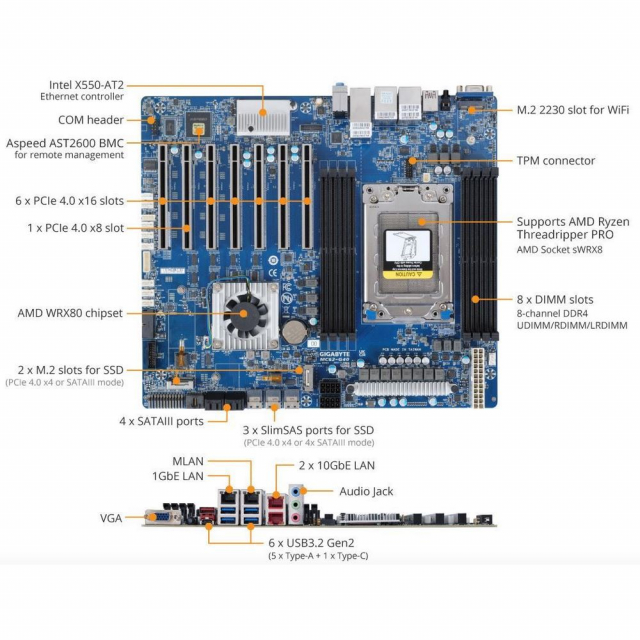

Features:
- Single AMD Ryzen™ Threadripper™ PRO 5000/3000 WX-Series Processors
- 8-Channel UDIMM/RDIMM/LRDIMM DDR4, 8 x DIMMs
- 2 x 10Gb/s LAN ports via Intel® X550-AT2
- 1 x 1Gb/s LAN port via Intel® I210-AT
- 3 x SlimSAS connectors with PCIe Gen4 x4 or SATA interface
- 4 x SATA 6Gb/s ports
- 2 x M.2 slots with PCIe Gen4 x4 or SATA interface
- 1 x M.2 slot for Wi-Fi add-in cards
- 7 x PCIe Gen4 x16 and x8 expansion slots
Workstation on Another Level
AMD Ryzen™ Threadripper™ PRO Processors For the professional workstation users that rely on workloads for visual effects design or rendering, there is the AMD Ryzen™ Threadripper™ PRO. Engineering, data science, and oil & gas exploration are among the fields that need the highest possible CPU platform to handle the large amounts of data in an efficient manner.
- Leading single and multi-threaded performance
- Top performance throughput with PCIe 4.0
- AMD Secure Processor: hardware root-of-trust
- Support for administrative and remote management
Multiple Memory Type and High Capacity
8 x DIMM slots for 8-channel DDR4-3200 memory. AMD Ryzen™ Threadrippper™ PRO platform has support for multiple memory types: UDIMM(ECC) / RDIMM / LRDIMM, while supporting up to 2TB of total system memory. It can offer a flexible options for workstations.
High Performance
Supports 4 x Double Wide Accelerators. AMD Ryzen™ Threadrippper™ PRO utilizes leadership architecture allotting the MC62-G40 with 128 PCIe 4.0 lanes from 6 x PCIe 4.0 x16 and 1 x PCIe 4.0 x8 slots. This makes the MC62-G40 versatile to handle content creation, deep learning, and virtual machine applications.
Storage Support - Mix Drives
Plentiful NVMe and SATA Storage interface can fulfill your hot and cold data processing requirement at once.
- 2 x M.2 2280 SSD slots (PCIe 4.0 x4 / SATAIII) from CPU for hot data
- 4 x SATAIII ports for cold data from WRX80 chipset
- 3 x SlimSAS ports (PCIe 4.0 x4 / 4x SATAIII) from WRX80 chipset
Dual Intel® 10GbE and 1GbE connections
The Intel® X550-AT2 adapter provides 2 ports of 10 GbE network connectivity as well as SR-IOV features. It is perfectly designed for demanding high bandwidth applications in virtualization, media centers, content creation, and data centers.
The Intel® Ethernet Controller i210-AT supports Windows Server OS with adapter fault tolerance, link aggregation, adaptive load balancing and more.
GIGABYTE Management Console
For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:
- Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
- Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
- Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.
