Gemtor HL3-3A Portable Horizontal Lifeline Add On System, 30' Span

Gemtor, HL3-3A, Portable Horizontal Lifeline Add On System for up to 30' Span

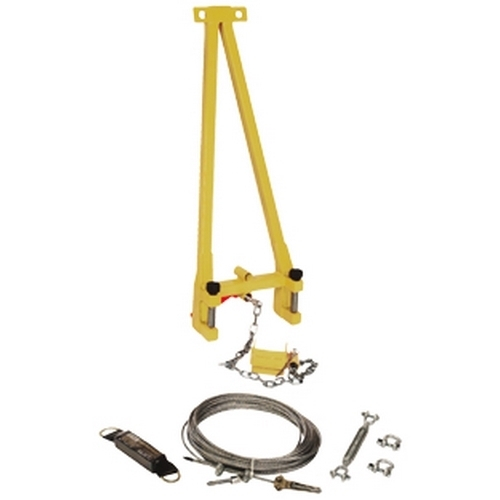

HL3-3A Includes Only:

• One (1) end stanchion
• Energy absorber
• Cable and hardware

Features:

• Fits beams of up to 3" thick and 36" wide.
• Unique design angles stanchion away from the worker allowing more room.
• Spans of up to 60 feet between two (2) stanchions.
• For use as fall protection and/or a hand rail by up to two (2) workers.
• Attaches with top mounted bolts, plated chain and quick insert pins.
• No drilling or welding required.
• Compact and lightweight (stanchions weigh 3 pounds each)

Gemtor's single/multi span horizontal lifeline system is the perfect choice for worker safety during bridge and building construction. Designed for quick and easy mounting to structural I Beams, this complete kit includes everything you need to protect your workers while performing their tasks at heights. Each two (2) stanchion system can be used on a span of up to 60 feet. Intermediate stanchions and Add-On systems can be deployed to create a system of unlimited length.

Large mounting bolts that provide more surface area contact are located on the top side of the stanchion base make attachment to a beam safer and easier than competitive systems. The stanchions feature an adjustable U shaped clamp and safety chain system that wraps around the opposite top flange of the beam providing additional security. The chain is attached to a bolt that has a long handled nut for ease of tightening.

The stanchions are extremely strong yet lightweight. They attach to the beam in a manner that minimally impacts the space required for the body of a worker to pass by. Stanchions fit beam flanges up to 3" thick and up to 36" wide.
