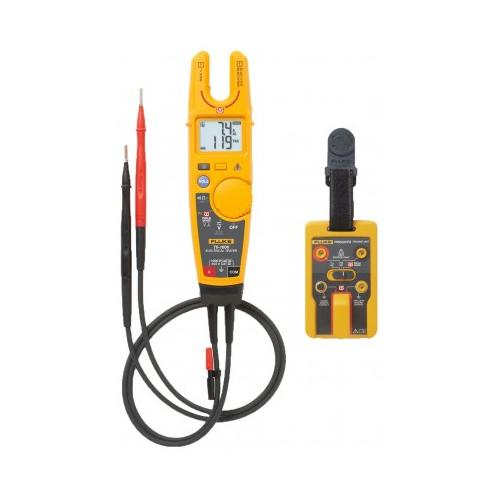

Buy Fluke T6-1000/PRV240FS, Electrical Tester and Proving Unit, 1000 V AC

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

T6-1000/PRV240FS Includes Only:

Electrical Tester
Attached Test Leads, with 0.16" (4 mm) Removable Probe Caps
User's Manual

Measure voltage up to 1000 V ac due to FieldSense technology, which easily and quickly takes measurements by sliding a conductor through the open fork. Additionally, without opening covers or removing wire nuts, on wires up to AWG 4/0 (120 mm2), carrying as much as 200 A which makes the jobs safer, faster and easier.

Features:

FieldSense technology for ac voltage, current and frequency measurement without making electrical contact to live voltage
Simultaneous voltage and current display shows all power supply measurements at a glance for efficient troubleshooting
1 to 1000 V ac or dc
0.1 to 200 A ac
Resistance 1 Ω to 100 kΩ
Frequency measurement 45 to 66 Hz
Works with wires up to AWG 4/0 (120 mm2) with a 0.7" (17.8 mm) jaw opening
Hold button temporarily freezes the reading for easy viewing
Easy to read display with backlight

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Requires Test Leads	No
Range	1000 V
Resolution	1 V
Accuracy	+/-(3% + 3 counts) 45 to 66 Hz
Requires Test Leads	No
Range	200.0 A
Resolution	0.1 A
Accuracy	+/-(3% + 3 counts) 45 to 66 Hz
Requires Test Leads	No
Range	45 to 66 Hz
Resolution	1 Hz
Accuracy	+/-(1% + 2 counts)
Requires Test Leads	Yes
Range	1000 V
Resolution	1 V
Accuracy	+/-(1.5% + 2 counts) 45 to 66 Hz
Requires Test Leads	Yes
Range	1000 V
Resolution	1 V
Accuracy	+/-(1% + 2 counts)
Requires Test Leads	Yes
Range	1000 V 2000 Ω 20 kΩ 100 kΩ
Resolution	1 V 1 Ω 0.01 kΩ 0.1 kΩ
Accuracy	+/-(1% + 2 counts)
Range	1000 V CAT III 600 V CAT IV
Calibration	One year calibration cycle
Jaw Opening	0.7" (17.8 mm)
Operating Temperature	14 to 122°F (-10 to 50°C)
Storage Temperature	-22 to 140°F (-30 to 60°C)
Operating Altitude	6562' (2000 m)
Storage Altitude	32,808' (10,000 m)
Relative Humidity	0 to 90%, 41 to 86°F (5 to 30°C) 0 to 75%, 86 to 104°F (30 to 40°C) 0 to 45%, 104 to 122°F (40 to 50°C)
Battery Type and Life	2 x AA (IEC LR6) 360 hours continuous Typical; 200 hours using FieldSense
Temperature Coefficient	0.1 x (specified accuracy) /°C for <18 or >28°C

Product Details

Requires Test Leads	No
Range	1000 V
Resolution	1 V
Accuracy	+/-(3% + 3 counts) 45 to 66 Hz
Requires Test Leads	No
Range	200.0 A
Resolution	0.1 A
Accuracy	+/-(3% + 3 counts) 45 to 66 Hz
Requires Test Leads	No
Range	45 to 66 Hz
Resolution	1 Hz
Accuracy	+/-(1% + 2 counts)
Requires Test Leads	Yes
Range	1000 V
Resolution	1 V
Accuracy	+/-(1.5% + 2 counts) 45 to 66 Hz
Requires Test Leads	Yes
Range	1000 V
Resolution	1 V
Accuracy	+/-(1% + 2 counts)
Requires Test Leads	Yes
Range	1000 V 2000 Ω 20 kΩ 100 kΩ
Resolution	1 V 1 Ω 0.01 kΩ 0.1 kΩ
Accuracy	+/-(1% + 2 counts)
Range	1000 V CAT III 600 V CAT IV
Calibration	One year calibration cycle
Jaw Opening	0.7" (17.8 mm)
Operating Temperature	14 to 122°F (-10 to 50°C)
Storage Temperature	-22 to 140°F (-30 to 60°C)
Operating Altitude	6562' (2000 m)
Storage Altitude	32,808' (10,000 m)
Relative Humidity	0 to 90%, 41 to 86°F (5 to 30°C) 0 to 75%, 86 to 104°F (30 to 40°C) 0 to 45%, 104 to 122°F (40 to 50°C)
Battery Type and Life	2 x AA (IEC LR6) 360 hours continuous Typical; 200 hours using FieldSense
Temperature Coefficient	0.1 x (specified accuracy) /°C for <18 or >28°C
