Buy Fluke Networks OFP-QUAD, OptiFiber Pro Quad OTDR Module

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Type:: Type: Quadmode

Features:

Automated setup senses fiber characteristics and sets measurement parameters
Manual Expert mode allows simple adjustments to automated settings for detailed testing.
EventMap automatically identifies events including connectors, splices, bends, and splitters
Gesture-based interface allows fast, in-depth trace analysis
SmartLoop™ OTDR technology tests two fibers in a single test eliminating the need to travel to the far end of the connection to perform tests.
Instantaneous on-board bi-directional averaging results included as standard
Integrates with LinkWare™ Live to manage jobs and testers from any smart device.
Future-ready VersivTM design supports copper certification to Category 8, fiber loss and inspection.

Many OTDRs designed for fiber troubleshooting are designed for carrier and contain cumbersome and complicated features. The OptiFiber Pro OTDR family is the first class of OTDRs that is built with features and usability for both the enterprise network engineers, and cable installers working in both enterprise and OSP environments.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Reviews

Magnification	200X with OptiFiber Pro Display
Light source	Blue LED
Power source	Versiv mainframe
Field of View (FOV)	Horizontal: 425 µm Vertical: 320 µm
Minimum detectable particle size	0.5 µm
Dimensions	Approximately 6.75 in x 1.5 in (1175 mm x 35 mm) without adapter tip
Weight	200 g
Temperature range	Operating: 32°F to 122°F (0 °C to +50 °C) Storage: -4°F to +158°F (-20°C to +70°C)
Certifications	CE (when used with the mainframe)
On/Off control	Mechanical switch and a button on the touch screen
Output power	316 µW (-5 dBm) = peak power = 1.0 mW (0 dBm)
Operating wavelength	650 nm nominal
Spectral width (RMS)	±3 nm
Output modes	Continuous wave Pulsed mode (2 Hz to 3 Hz blink frequency)
Connector adapter	2.5 mm universal
Laser safety (classification)	Class II CDRH Complies to EN 60825-2
Weight	Mainframe with module and battery: 3 lbs, 5 oz (1.28 kg)
Dimensions	Mainframe with module and battery: 2.625 in x 5.25 in x 11.0 in ( 6.67 cm x 13.33 cm x 27.94 cm)
Battery	Lithium ion battery pack, 7.2 volts
Battery life	Eight hour Auto OTDR operation, dual wavelength, no video probe connected, 150 m of fiber
Integrated Wi-Fi	Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)
Tester Off	Four hours to charge from 10% to 90% capacity
Tester On	Six hours to charge from 10% to 90% capacity with the tester on
Operating temperature	-10°C to 45°C
Storage Temperature	-10°C to +60°C
Operating altitude	4,000 m (13123 ft) 3200 m (10,500 ft) with ac adapter
Storage altitude	12,000 m
EMC	EN 61326-1
Type	Quad module
Wavelengths	850 nm +/- 10 nm 1300 nm +35/-15 nm 1310 nm +/- 25 nm 1550 nm +/- 30 nm
Event dead zone 1	850 nm: 0.5 m typical 1300 nm: 0.7 m typical 1310 nm: 0.6 m typical 1550 nm: 0.6 m typical
Attenuation dead zone 2	850 nm: 2.5 m typical 1300 nm: 4.5 m typical 1310 nm: 3.6 m typical 1550 nm: 3.7 m typical
Dynamic range 3, 5, 6	850 nm: 28 dB typical 1300 nm: 30 dB typical 1310 nm: 32 dB typical 1550 nm: 30 dB typical
Max distance range setting	MM: 40 km SM: 130 km

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Magnification	200X with OptiFiber Pro Display
Light source	Blue LED
Power source	Versiv mainframe
Field of View (FOV)	Horizontal: 425 µm Vertical: 320 µm
Minimum detectable particle size	0.5 µm
Dimensions	Approximately 6.75 in x 1.5 in (1175 mm x 35 mm) without adapter tip
Weight	200 g
Temperature range	Operating: 32°F to 122°F (0 °C to +50 °C) Storage: -4°F to +158°F (-20°C to +70°C)
Certifications	CE (when used with the mainframe)
On/Off control	Mechanical switch and a button on the touch screen
Output power	316 µW (-5 dBm) = peak power = 1.0 mW (0 dBm)
Operating wavelength	650 nm nominal
Spectral width (RMS)	±3 nm
Output modes	Continuous wave Pulsed mode (2 Hz to 3 Hz blink frequency)
Connector adapter	2.5 mm universal
Laser safety (classification)	Class II CDRH Complies to EN 60825-2
Weight	Mainframe with module and battery: 3 lbs, 5 oz (1.28 kg)
Dimensions	Mainframe with module and battery: 2.625 in x 5.25 in x 11.0 in ( 6.67 cm x 13.33 cm x 27.94 cm)
Battery	Lithium ion battery pack, 7.2 volts
Battery life	Eight hour Auto OTDR operation, dual wavelength, no video probe connected, 150 m of fiber
Integrated Wi-Fi	Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)
Tester Off	Four hours to charge from 10% to 90% capacity
Tester On	Six hours to charge from 10% to 90% capacity with the tester on
Operating temperature	-10°C to 45°C
Storage Temperature	-10°C to +60°C
Operating altitude	4,000 m (13123 ft) 3200 m (10,500 ft) with ac adapter
Storage altitude	12,000 m
EMC	EN 61326-1
Type	Quad module
Wavelengths	850 nm +/- 10 nm 1300 nm +35/-15 nm 1310 nm +/- 25 nm 1550 nm +/- 30 nm
Event dead zone 1	850 nm: 0.5 m typical 1300 nm: 0.7 m typical 1310 nm: 0.6 m typical 1550 nm: 0.6 m typical
Attenuation dead zone 2	850 nm: 2.5 m typical 1300 nm: 4.5 m typical 1310 nm: 3.6 m typical 1550 nm: 3.7 m typical
Dynamic range 3, 5, 6	850 nm: 28 dB typical 1300 nm: 30 dB typical 1310 nm: 32 dB typical 1550 nm: 30 dB typical
Max distance range setting	MM: 40 km SM: 130 km

Note

Note: Please read description carefully. Do not base your order on the picture presented.

Reviews

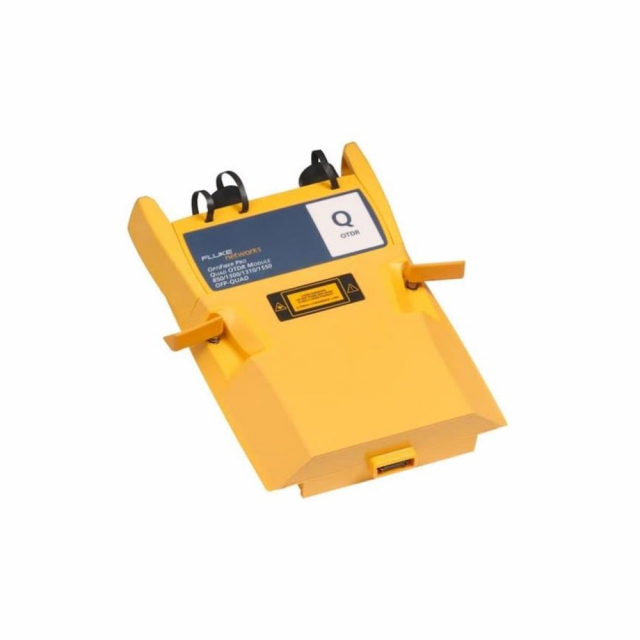

Fluke Networks OFP-QUAD OptiFiber Pro Quad OTDR Module
