Buy Fluke Networks DSX-602-NW, Cable Analyzer, 500mhz V2 with Wi-Fi

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Configuration:: Configuration: Integrated Wi-Fi Disabled

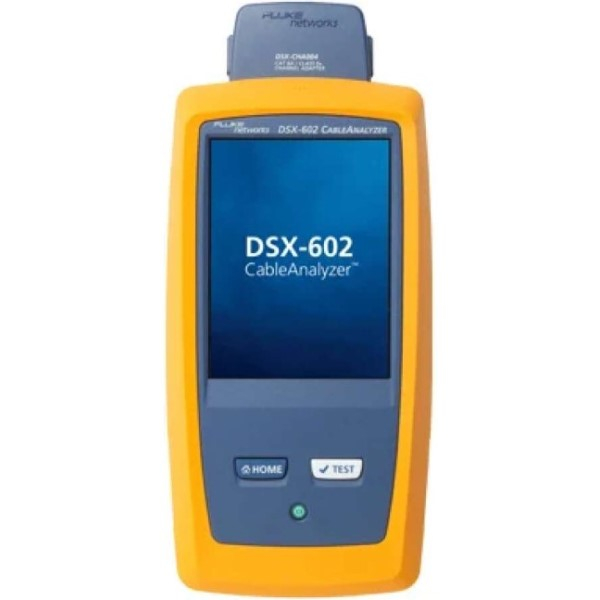

Fluke Networks, DSX-602-NW, Cable Analyzer, 500mhz V2 with Integrated Wi-Fi Disabled

DSX-602-NW Includes Only:

DSX-602 CableAnalyzer Main & Remote
Cat 6A/ Class EA channel adapters (2)
6-inch (15 cm) RJ45 reference patch cord (1)
Soft Carrying case
USB cable for PC communications
AC adapters (2) and DSX-602 Getting Started Guide

Features:

Cat 6A and Class E_A Copper Certification
Channel Measurement Adapters
10 second Cat 6A test time
ProjX™ Management System makes test setup fast and foolproof
HDTDX and HDTDR diagnostics pinpoint fault location
Integrates with LinkWare™ Live to manage jobs and testers from any smart device.
Quickly and easily create professional custom PDF reports with LinkWare™ PC.

The DSX-602 CableAnalyzer™ is the tool for essential certification of copper, twisted pair structured cabling from Cat 3 / Class C through Cat 6A / Class EA featuring speed, and reliability making you more efficient and productive - you can see the results on the bottom line. No other tester will deliver as consistently as the DSX-602. Its gesture-based user interface allows your techs to spend less time interpreting screens and more time testing. 500 MHz frequency range certifies Cat 6A/Class EA cabling for 10 Gigabit Ethernet in just 10 seconds. Advanced diagnostics pinpoint the location of a failure. LinkWare™ Live cloud-based service that lets you manage certification jobs anytime, anywhere, with anyone on any device.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Reviews

Shielded and unshielded pair LAN cabling	TIA Category 3, 4, 5, 5e, 6, 6A: 100 Ω ISO/IEC Class C, D, E, EA: 100 Ω and 120 Ω
TIA	Category 3, 5, 5e, 6, 6A per ANSI/TIA-568.2-D
ISO/IEC	Class C and D, E, EA certification per ISO/IEC 11801:2002 and amendments
IEEE 802.3	10BASE-T, 100BASE-TX, 1000BASE-T, 10GBASE-T
Speed of Autotest	Full 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds; Full 2-way Autotest of Category 6A/Class EA: 10 seconds
Supported test parameters (test standard determines parameters and frequency range reported)	Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), Near End Crosstalk (NEXT), Attenuation-to-Crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (PS ELFEXT), Power Sum NEXT, Power Sum ACR-N
Maximum frequency	500 MHz
Test Result Storage	12,000 Cat 6A with plots
Display	5.7 in LCD display with a projected capacitance touchscreen
Dimensions	Main Unit and Smart Remote: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm)
Weight	3 lbs (1.36 kg)
Battery	Lithium ion battery pack, 7.2 V
Battery Life	8 hours
Battery Charge Time	4 hours (below 40° C, with tester off)
Languages supported	English, French, German, Italian, Japanese, Portuguese, Spanish, Chinese, Korean, Russian, Trad Chinese, Czech, Polish, Swedish, Hungarian
Calibration	Service center calibration period is 1 year
Integrated Wi-Fi	Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)
Operating Temperature	32° F to 113° F (0° C to 45° C)
Storage Temperature	-22° F to +140° F (-30° C to +60° C)
Operating relative humidity (% RH without condensation)	0% to 90%, 32° F to 95° F: (0° C to 35° C) 0% to 70%, 95° F to 113° F: (35° C to 45° C)
Vibration	Random, 2 g, 5 Hz -500 Hz
Shock	1 m drop test with and without module and adapter attached
Safety	CSA 22.2 No. 61010, IEC 61010-1 3rd Edition
Altitude	13,123 ft (4,000 m) 10,500 ft (3,200 m) with ac adapter
EMC	EN 61326-1: Portable

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Shielded and unshielded pair LAN cabling	TIA Category 3, 4, 5, 5e, 6, 6A: 100 Ω ISO/IEC Class C, D, E, EA: 100 Ω and 120 Ω
TIA	Category 3, 5, 5e, 6, 6A per ANSI/TIA-568.2-D
ISO/IEC	Class C and D, E, EA certification per ISO/IEC 11801:2002 and amendments
IEEE 802.3	10BASE-T, 100BASE-TX, 1000BASE-T, 10GBASE-T
Speed of Autotest	Full 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds; Full 2-way Autotest of Category 6A/Class EA: 10 seconds
Supported test parameters (test standard determines parameters and frequency range reported)	Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), Near End Crosstalk (NEXT), Attenuation-to-Crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (PS ELFEXT), Power Sum NEXT, Power Sum ACR-N
Maximum frequency	500 MHz
Test Result Storage	12,000 Cat 6A with plots
Display	5.7 in LCD display with a projected capacitance touchscreen
Dimensions	Main Unit and Smart Remote: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm)
Weight	3 lbs (1.36 kg)
Battery	Lithium ion battery pack, 7.2 V
Battery Life	8 hours
Battery Charge Time	4 hours (below 40° C, with tester off)
Languages supported	English, French, German, Italian, Japanese, Portuguese, Spanish, Chinese, Korean, Russian, Trad Chinese, Czech, Polish, Swedish, Hungarian
Calibration	Service center calibration period is 1 year
Integrated Wi-Fi	Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)
Operating Temperature	32° F to 113° F (0° C to 45° C)
Storage Temperature	-22° F to +140° F (-30° C to +60° C)
Operating relative humidity (% RH without condensation)	0% to 90%, 32° F to 95° F: (0° C to 35° C) 0% to 70%, 95° F to 113° F: (35° C to 45° C)
Vibration	Random, 2 g, 5 Hz -500 Hz
Shock	1 m drop test with and without module and adapter attached
Safety	CSA 22.2 No. 61010, IEC 61010-1 3rd Edition
Altitude	13,123 ft (4,000 m) 10,500 ft (3,200 m) with ac adapter
EMC	EN 61326-1: Portable

Note

Note: Please read description carefully. Do not base your order on the picture presented.
