Flow Ezy Filters Y45-ST-149-2-S Y-Filters Port Filter, 149 Micron Element

Flow Ezy Filters, Y45-ST-149-2-S, Y-Filters 2-1/2" - 12 SAE Port Filter, 149 Micron Element, Buna N Seal, 2-PSI Valve, Suction Line Indicator

Features:

• These filters are built on the proven design of the common "Y" strainer, but instead of a coarse screen, they contain a true micron-rated filter the element whose pleated element surface area is up to four times greater.
• In fact, the filtering area in the "Y" filter design is equal to that found in standard hydraulic filters.
• The flow path in the "Y" design is through the inside surface of the element, where the contaminant is caught.
• There can be no dirt "wash-off" of the element downstream during servicing.
• This also minimizes the formation of air pockets within the filter element.
• Material of construction:
  • Cast iron (E-Coated) housing
  • 304 stainless steel element
  • 125 in² element screen area

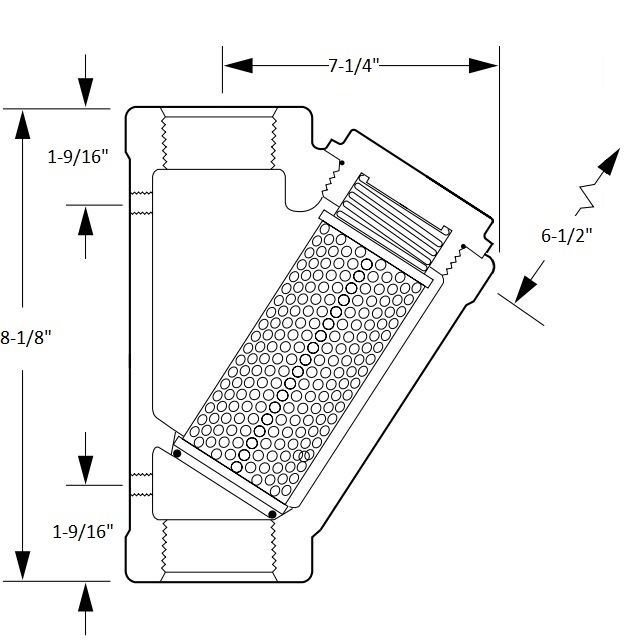

Dimensions:
