Pictures shown are for illustrative purpose only. Actual product may vary

Options and Related Products

Size (inch):: Size (inch): 22 x 10.9 x 5.1
Cover Type:: Cover Type: Gray Hinged Cover

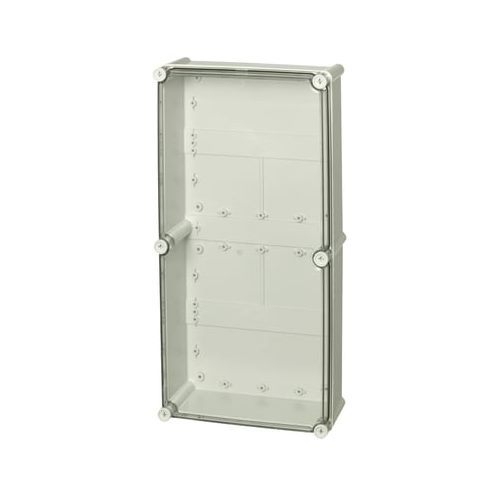

SOLID Enclosure, Gray Hinged Cover, 22 x 10.9 x 5.1 inch.

UL PC 5628 13 G-3FSH Includes Only:

Base with screws for mounting plate
Cover with PUR gasket and polyamide cover screws

Features:

Enclosure, PC, Gray Hinged Cover
This NEMA 4X rated UL listed watertight plastic electrical enclosure is, well, a solid choice for your next design
The SOLID series keep electronic and electrical components clean and dry and are an ideal alternative to polyester enclosures
It is molded in impact and UV-resistant, WI-FI friendly polycarbonate
SOLID features a formed-in-place polyurethane gasket and mounting pods in the base for DIN-Rails, or mounting pannels

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimensions (HxWxD-inch)	22 x 10.9 x 5.1
Material	Polycarbonate
Base colour	RAL 7035 -light gray
Cover colour	RAL 7035 -light gray
Gasket material	Polyurethane
Temperature °C (short term)	-40 - 120
Temperature °C (continuous)	-40 - 80
Temperature °F (short term)	-40 - 250
Temperature °F (continuous)	-40 - 175
Ingress Protection (EN 60529)	IP66; IP67
Impact Resistance (EN 62262)	IK08
Electrical insulation	Totally insulated
Halogen free (DIN/VDE 0472, Part 815)	1
UV resistance	UL 508
Flammability Rating	UL 746C 5in
Glow Wire Test (IEC 60695)	960 °C

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Dimensions (HxWxD-inch)	22 x 10.9 x 5.1
Material	Polycarbonate
Base colour	RAL 7035 -light gray
Cover colour	RAL 7035 -light gray
Gasket material	Polyurethane
Temperature °C (short term)	-40 - 120
Temperature °C (continuous)	-40 - 80
Temperature °F (short term)	-40 - 250
Temperature °F (continuous)	-40 - 175
Ingress Protection (EN 60529)	IP66; IP67
Impact Resistance (EN 62262)	IK08
Electrical insulation	Totally insulated
Halogen free (DIN/VDE 0472, Part 815)	1
UV resistance	UL 508
Flammability Rating	UL 746C 5in
Glow Wire Test (IEC 60695)	960 °C

Note: Please read description carefully. Do not base your order on the picture presented.
