Fibox AR IPW 1210 SC T 12" x 10" Hinged Screw Locking Clear Cover

Version: Hinged Screw Locking Clear Cover, Size (in): 12 x 10
  • Brand Fibox
  • Part # AR IPW 1210 SC T
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Options and Related Products

    Version:
    Version: Hinged Screw Locking Clear Cover
    Size (in):
    Size (in): 12 x 10

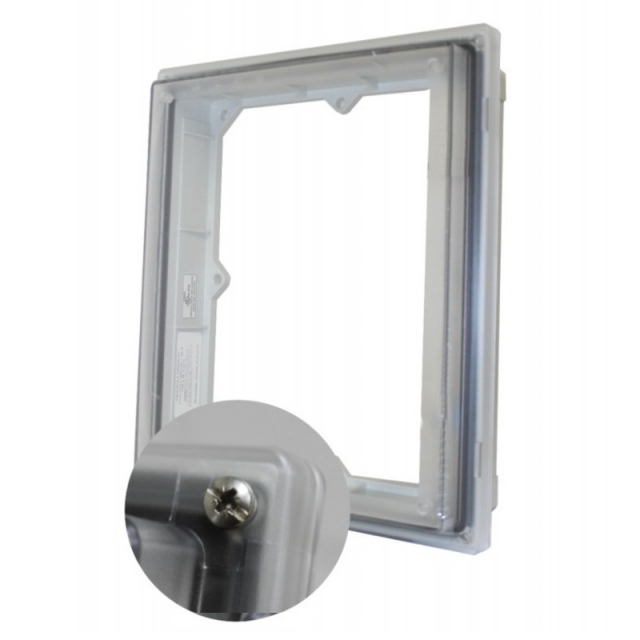

    Fibox, AR IPW 1210 SC T, 12" x 10" Opaque Hinged Screw Locking Clear Cover

    Features:

    • Protection Window - HMI Cover
    • Opaque hinged screw locking cover.

    With a secure low profile, continuous hinge design, and sleek integrated quarter turn locks, the ARCA Instrument Protection Window (IPW) minimizes access to where security and safety are needed.

    The Instrument Protection Window is a UL / cUL-listed, NEMA-type 4X-rated HMI cover. The IPW can be mounted on any manufacturer's enclosure to provide safe and secure access to underlying components and instruments.

    Once locked, the dual Formed-In-Place polyurethane gasket maintains a dry, dust-free environment.

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Materials
    MaterialPolycarbonate
    Base colorRAL 7035 -light grey
    Cover colorTransparent
    Gasket materialPolyurethane
    Dimensions
    Height (inch)12
    Width (inch)10
    Depth (inch)3.31
    Height (mm)342
    Width (mm)295
    Depth (mm)88
    Temperatures
    Temperature °F (short term)-40 - 250
    Temperature °F (continuous)-40 - 175
    Temperature °C (short term)-40 - 140
    Temperature °C (continuous)-40 - 80
    Ratings
    UL/cUL TypeUL/cUL 4, 4X, 6, 6P, 12, 12K and 13
    Ingress Protection (EN 60529)IP66; IP67;
    Impact Resistance (EN 62262)IK09;
    Halogen free (DIN/VDE 0472, Part 815)Yes
    UV resistanceUL 508
    Flammability RatingUL94-5VA (f1)
    Glow Wire Test (IEC 60695)960 °C
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    ***

    warningWARNING: This product may expose you to certain chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

    Product Details
    Materials
    MaterialPolycarbonate
    Base colorRAL 7035 -light grey
    Cover colorTransparent
    Gasket materialPolyurethane
    Dimensions
    Height (inch)12
    Width (inch)10
    Depth (inch)3.31
    Height (mm)342
    Width (mm)295
    Depth (mm)88
    Temperatures
    Temperature °F (short term)-40 - 250
    Temperature °F (continuous)-40 - 175
    Temperature °C (short term)-40 - 140
    Temperature °C (continuous)-40 - 80
    Ratings
    UL/cUL TypeUL/cUL 4, 4X, 6, 6P, 12, 12K and 13
    Ingress Protection (EN 60529)IP66; IP67;
    Impact Resistance (EN 62262)IK09;
    Halogen free (DIN/VDE 0472, Part 815)Yes
    UV resistanceUL 508
    Flammability RatingUL94-5VA (f1)
    Glow Wire Test (IEC 60695)960 °C
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
