Buy FiberFox Mini6S+W-FT3X, Wi-Fi Splicer with Calibration Service

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Package Included:: Package Included: Wi-Fi Splicer with 3-Pack FastTrack Calibration Service

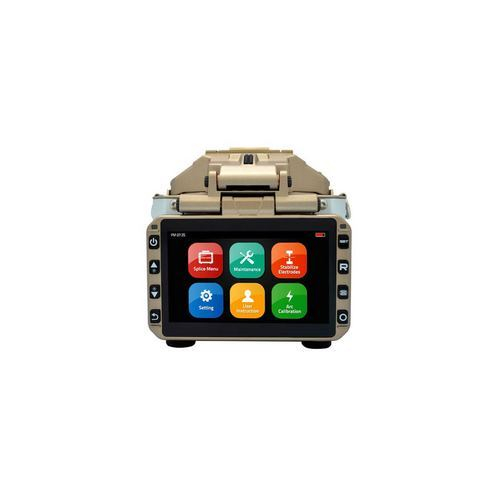

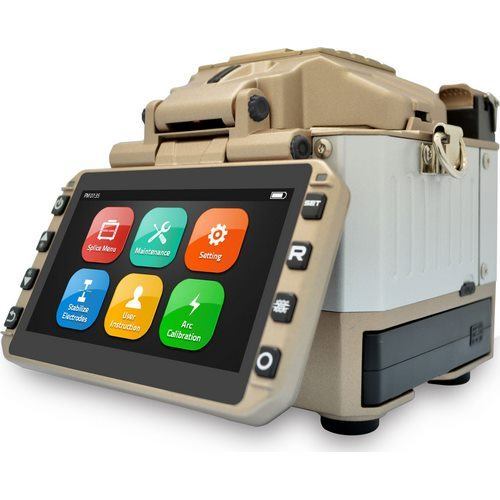

FiberFox, Mini6S+W-FT3X, Wi-Fi Core Alignment Auto Focus Splicer with 3-Pack FastTrack Calibration Service

Mini6S+W-FT3X Includes Only:

MiniSeries Splicer
Precision Cleaver w/ Auto Bin
Cleaver Soft Case
Two Battery Packs
Cooling Tray
Fiber Holders (1pr)
Shoulder Strap
Thermal Stripper
Manual Stripper
Universal SOC Holder (2)
SOC Heater Block
Mini USB Update Cable
Power cord / AC Adapter
Car Charger
Phillips Screwdriver
FiberFox Splice Sleeves
Spare Electrodes (pair)
Sweeper Brush)
Yellow Hard Case
Soft Cover User Manual
Operation Manual CD
3-pack FastTrack Calibration Service

Features:

6 sec with single-mode fiber
10 sec Heating time
6 sec with continuous heating mode
Comes with 2 Battery Packs
Full Touch Screen
SOC Compatible and Includes

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Splicing Method

Core Alignment AOCAT(Automatic Optical Core Analysis & Tracking) System

Average Loss

SM(0.02dB) / MM(0.01dB) / DS(0.04dB) / NZDS(0.04dB) / G.657(0.02dB)

Return Loss

>60dB

Splice Time

6s average SM

Electrodve Lifespan

>5,500 arcs

Applicable Fiber

SM(ITU-T G.652, MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655),
IT-G657A, IT-G657B, 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable)

Cleaved Length

Coating Diameter < 0.25mm = 8-16mm
Coating Diameter > 0.25mm = 16mm minimum

Coating Diameter

100-3,000um

Cladding Diameter

80-150um

Heating Programs

Factory-installed mode: 10
User installable mode: 32

Heating Time

10s ( 6 sec with continuous heating mode)

Protection Sleeve

40mm, 60mm, SOC Connector

Data Output

Mini USB

Splice Programs

Factory-installed mode: 38
User installable mode: 90

Splice Memory

Up to 10,000 records and 2,000 splice images

Battery

Typical 200 Cycles (Splice & Heat) / single battery <2 Batteries Standard>

Power Supply

AC 100-240V input or DC 9~14V

Monitor

720P Color 4.3" LCD monitor, with Full Touch Screen (Tempered Glass)

Cameras

2 CCD camera system

Magnification

XY style: 160 power, X/Y: 320 power

Fiber Display

X/Y or XY, single X.Y

Weight

3.09 lbs (without battery)

Size

4.8 x 4.88 x 5.4 (in)

Wind Protection

The max wind speed is 15m/s

Operating Environment

Elevation 0-5,000 meters, -15~60°C, 0~95% relative humidity

Storage Condition

Temperature -40 to 176°F, 0~95% relative humidity, battery -4~86°F

Pull Test

1.96~2.25N (standard)

Product Details

Splicing Method

Core Alignment AOCAT(Automatic Optical Core Analysis & Tracking) System

Average Loss

SM(0.02dB) / MM(0.01dB) / DS(0.04dB) / NZDS(0.04dB) / G.657(0.02dB)

Return Loss

>60dB

Splice Time

6s average SM

Electrodve Lifespan

>5,500 arcs

Applicable Fiber

SM(ITU-T G.652, MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655),
IT-G657A, IT-G657B, 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable)

Cleaved Length

Coating Diameter < 0.25mm = 8-16mm
Coating Diameter > 0.25mm = 16mm minimum

Coating Diameter

100-3,000um

Cladding Diameter

80-150um

Heating Programs

Factory-installed mode: 10
User installable mode: 32

Heating Time

10s ( 6 sec with continuous heating mode)

Protection Sleeve

40mm, 60mm, SOC Connector

Data Output

Mini USB

Splice Programs

Factory-installed mode: 38
User installable mode: 90

Splice Memory

Up to 10,000 records and 2,000 splice images

Battery

Typical 200 Cycles (Splice & Heat) / single battery <2 Batteries Standard>

Power Supply

AC 100-240V input or DC 9~14V

Monitor

720P Color 4.3" LCD monitor, with Full Touch Screen (Tempered Glass)

Cameras

2 CCD camera system

Magnification

XY style: 160 power, X/Y: 320 power

Fiber Display

X/Y or XY, single X.Y

Weight

3.09 lbs (without battery)

Size

4.8 x 4.88 x 5.4 (in)

Wind Protection

The max wind speed is 15m/s

Operating Environment

Elevation 0-5,000 meters, -15~60°C, 0~95% relative humidity

Storage Condition

Temperature -40 to 176°F, 0~95% relative humidity, battery -4~86°F

Pull Test

1.96~2.25N (standard)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
