Buy Euromex EDC-2000f, cMEX-2F 2.0 MP Digital USB-2 Color Camera

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Diameter (mm):: Diameter (mm): 2

Euromex, EDC-2000f, cMEX-2F 2.0 MP Digital USB-2 color camera with 1/2.9" CMOS Sensor

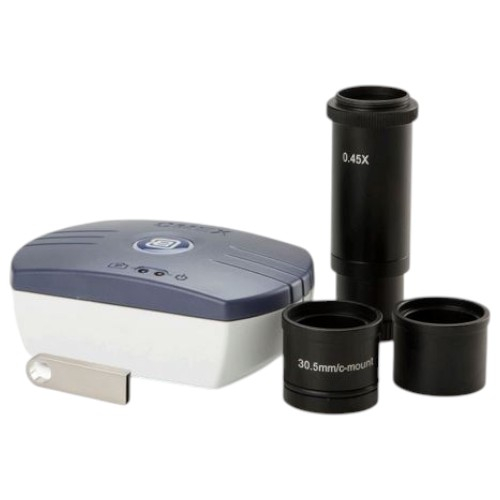

EDC-2000f Includes Only:

camera
0.45x objective with c-mount
USB 2.0 cable, 30 and 30.5mm adapters for stereo microscopes
76 x 24mm calibration slide
USB stick with ImageFocus Plus software
carton box

Features:

Entry-level camera for amateurs, education, and laboratories
2.0 Mpix CMOS color-USB 2.0 camera
1/2.9" sensor, 1920 x 1080 pixels
color depth 24 bits
Low signal/noise ratio
USB 2.0 interface

The cMEX-2f is equipped with an extra-fast CMOS sensor with 8-bit grayscale conversion and a 24-bit color rendering. The cMEX-f cameras are equipped with a USB-2 data interface and supplied with ImageFocus Plus software

Besides capturing images and videos, the ImageFocus Plus software allows measurements on still and live images and annotations on captured images, stitching and stacking of images, and more. compatible with Windows 10 and higher, both 32 and 64-bit configurations.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Sensor	CMOS 1/2.9 inch
Pixels	1920 x 1080 pixels, 2.0 Mpix
Scan mode	Progressive, rolling shutter
Pixel size	2.8 µm x 2.8 µm
Filter	RGB
Mount	c-mount
Max fps	Up to30 frames per second (1920x 1080 pixels)
Exposure	Automatic or manual
Exposure time	from 1 ms to 2s
White balance	Automatic/manual
Dynamic range	72 db
Sensitivity V/lux-sec	(at 550 nm) 1.51
Data interface	USB 2.0 at 480 Mb/s
Operation	10-85 % humidity
Storage temperature	0 to 60°c
Software	Windows 10 and higher (32 and 64-bit configurations)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Sensor	CMOS 1/2.9 inch
Pixels	1920 x 1080 pixels, 2.0 Mpix
Scan mode	Progressive, rolling shutter
Pixel size	2.8 µm x 2.8 µm
Filter	RGB
Mount	c-mount
Max fps	Up to30 frames per second (1920x 1080 pixels)
Exposure	Automatic or manual
Exposure time	from 1 ms to 2s
White balance	Automatic/manual
Dynamic range	72 db
Sensitivity V/lux-sec	(at 550 nm) 1.51
Data interface	USB 2.0 at 480 Mb/s
Operation	10-85 % humidity
Storage temperature	0 to 60°c
Software	Windows 10 and higher (32 and 64-bit configurations)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
