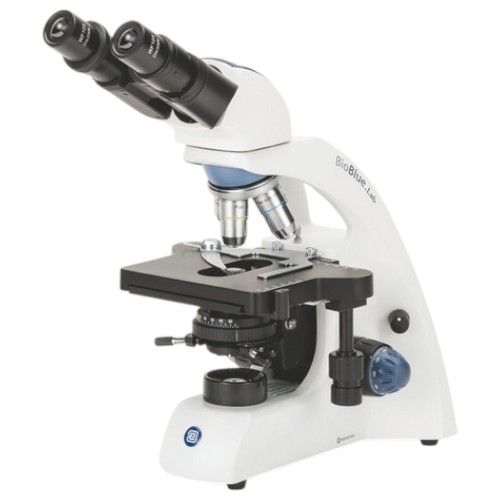

Euromex EBB-1152-PL BioBlue.Lab Binocular Microscope with Objectives

Euromex, EBB-1152-PL, BioBlue.Lab Binocular Microscope with Plan PL 4/10/S40/S100x Oil Objectives, Mechanical Rackless Stage and 3W NeoLED Illumination

EBB-1152-PL Includes Only:

• Microscope
• Power cord
• Dust cover
• Spare fuse
• User manual
• 5 ml immersion oil
• White filter
• Polystyrene box

Features:

• WF10x/20mm eyepieces
• Reversed quadruple nosepiece
• Plan and plan IOS objectives
• Finity and infinity optical system
• Integrated mechanical stage
• NeoLED™ illumination
• Ergonomic carrying grip

Head

• It has 30° inclined 30mm tubes
• The interpupillary distance is adjustable between 48 to 75 mm
• It has a ±5 diopter adjustment on the left tube
• Head is 360° rotatable and secured with a screw

Nosepiece

Reversed quadruple nosepiece on ball bearings. Slot for analyzer (BB.9602).

Focusing

• coaxial coarse and fine adjustments with 200 graduations
• Precision 1.5 μm per graduation, 0.3mm per rotation
• Total travel is approximately 28 mm
• Supplied with an adjustable rack stop to prevent damage to the sample and objectives
• The coarse adjustments are equipped with friction control

Stage

Rackless 150 x 140mm stage with mechanical 75 x 30mm X-Y translation stage.

Condenser

Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder. Supplied with a white filter.

Illumination

• It is supplied with an adjustable 3W NeoLED™ illumination system for increased light output
• Power supply with integrated 100-240 VAc

Anti-Theft Slot

At the back of the microscope, a Kensington Security Slot is placed, which can be used to secure the instrument from theft.
