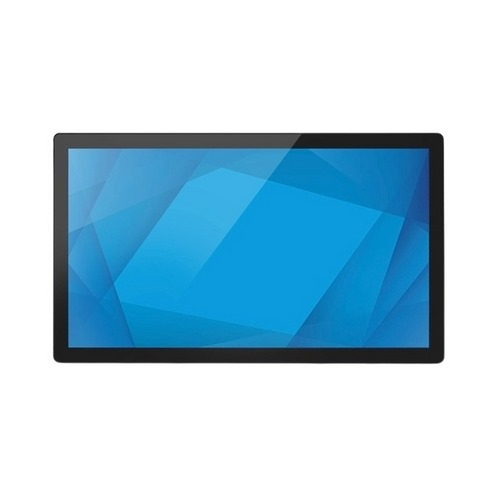

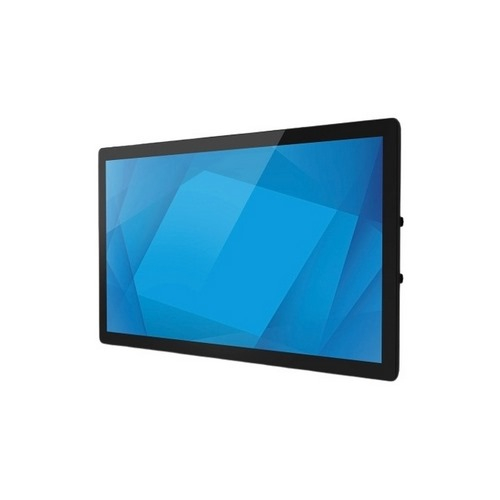

Buy ELO Touch E493782, Open Frame Touchscreen Display 23.8" FHD LCD

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Diagonal Size:: Diagonal Size: 23"

E493782 Includes Only:

HDMI cable
VGA Cable
RJ45 OSD Remote
Touch USB Cable
Quick Install Guide
For Zero-Bezel Models: Flush Mount Brackets w/Screws
For Bezeled - IntelliTouch/IntelliTouch DT Models: "L" (Side Mount) Brackets and w/Screws
EEI Label
Japan Class-B TM info sheet

The Elo 2494L 24-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.

Enabling Partners to Build Smarter Kiosks

With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.

Flexibility for Your Install

Commercial-grade open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.

Mounting Flexibility

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Enclosure Color

Black

Touch Technology & Capacity

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Touch Interface

TouchPro PCAP, IntelliTouch DT - USB 2.0

Diagonal Size

23.8'' diagonal, Active matrix TFT LCD (LED)

On Screen Display

Accessible through switches on the unit's tethered OSD Control box.
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru (Only available for TouchPro PCAP)
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power

Aspect Ratio

16:9

Active Area

20.75" x 11.67" / 527.04 mm x 296.46 mm

Resolution

1920 x 1080

Other Supported Resolutions

640 x 480 60Hz
720 x 400 70Hz
800 x 500, 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50, 60Hz

Viewing Angle

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

Number of Colors

16.7 million

Brightness (typical)

TouchPro PCAP: 225 nits

Response Time-total (typical)

16 msec

Contrast Ratio

3000:1

I/O Ports

Serial port (IntelliTouch only), USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort, 12V D/C in

Input Video Format

HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of DisplayPort video input

Input Video Frequency

Horizontal: 30 - 82 KHz
Vertical: 50 - 75 Hz

Power Supply

External DC - Optional power brick (sold separately)

Input power connector (Monitor)

Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)

Input Voltage

12VDC +/- 5%

Adapter Output Power Connector

DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)

Power Consumption (Typical)

ON (Default - 75% Brightness): 15.24 W
ON (Typical - 100% Brightness): 17.46 W
SLEEP FROM PC (monitor + adapter): 1.07 W
OFF (monitor + adapter): 0.2 W

Dimensions

TouchPro PCAP: 22.41" x 13.43" x 1.5" / 569.2 mm x 341.1 mm x 38 mm

Weight (Unpackaged)

TouchPro PCAP: 13.6 lbs / 6.17 Kg

Operating Temperature

0°C to 40°C / 32°F to 104°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%
Storage: 10% to 95%

Sealability

Touchscreen sealed to LCD

MTBF

50,000 hours demonstrated

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Enclosure Color

Black

Touch Technology & Capacity

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Touch Interface

TouchPro PCAP, IntelliTouch DT - USB 2.0

Diagonal Size

23.8'' diagonal, Active matrix TFT LCD (LED)

On Screen Display

Accessible through switches on the unit's tethered OSD Control box.
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru (Only available for TouchPro PCAP)
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power

Aspect Ratio

16:9

Active Area

20.75" x 11.67" / 527.04 mm x 296.46 mm

Resolution

1920 x 1080

Other Supported Resolutions

640 x 480 60Hz
720 x 400 70Hz
800 x 500, 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50, 60Hz

Viewing Angle

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

Number of Colors

16.7 million

Brightness (typical)

TouchPro PCAP: 225 nits

Response Time-total (typical)

16 msec

Contrast Ratio

3000:1

I/O Ports

Serial port (IntelliTouch only), USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort, 12V D/C in

Input Video Format

HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of DisplayPort video input

Input Video Frequency

Horizontal: 30 - 82 KHz
Vertical: 50 - 75 Hz

Power Supply

External DC - Optional power brick (sold separately)

Input power connector (Monitor)

Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)

Input Voltage

12VDC +/- 5%

Adapter Output Power Connector

DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)

Power Consumption (Typical)

ON (Default - 75% Brightness): 15.24 W
ON (Typical - 100% Brightness): 17.46 W
SLEEP FROM PC (monitor + adapter): 1.07 W
OFF (monitor + adapter): 0.2 W

Dimensions

TouchPro PCAP: 22.41" x 13.43" x 1.5" / 569.2 mm x 341.1 mm x 38 mm

Weight (Unpackaged)

TouchPro PCAP: 13.6 lbs / 6.17 Kg

Operating Temperature

0°C to 40°C / 32°F to 104°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%
Storage: 10% to 95%

Sealability

Touchscreen sealed to LCD

MTBF

50,000 hours demonstrated

Note

Note: Please read description carefully. Do not base your order on the picture presented.
