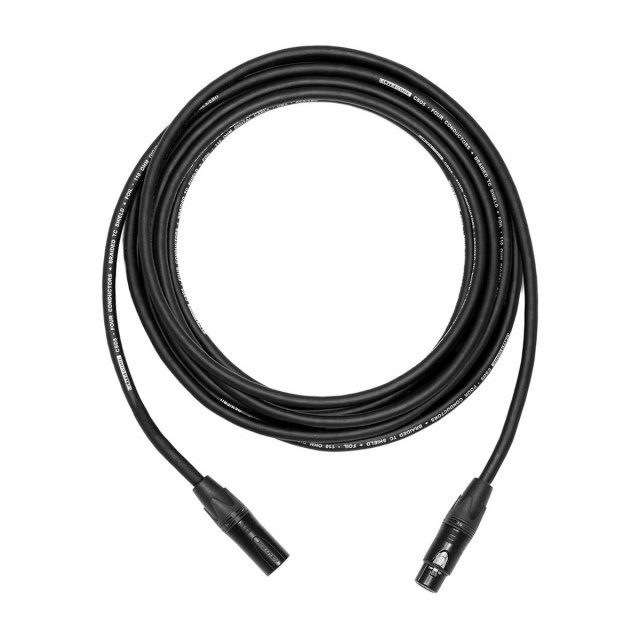

Elite Core CSD5-NN-200-TOP 200ft 5-Pin DMX Cable with Top Connectors

Cable Length (ft): 200
  • Brand Elite Core
  • Part # CSD5-NN-200-TOP
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Options and Related Products

    Cable Length (ft):
    Cable Length (ft): 200

    Features:

    • 110 Ω low capacitance.
    • Braided Copper shielding blocks EMI and RF interference.
    • Cotton filler allows the cable to remain exceptionally manageable and to coil easily.
    • They are designed to be extremely resilient and durable, from cable to connector.

    A braided copper shield and a natural cotton filler result in an extremely durable cable, while remaining easy to handle and comfortable to coil.

    Elite Core's CSD Custom Shop digital cables are hand-built by skilled technicians in Greenbrier, Arkansas, USA facility. Only the finest materials and most effective techniques are used. Every detail - the cable construction, the connector choice, the solder, the flux, the shrink tube, the testing, and the packaging, is carefully chosen to create the finest stage and touring DMX cable.

    Connectors

    CSD3 cables are hand-terminated at headquarters with genuine TOP Series connectors.

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    Wire22-AWG Wrap
    Material100% AL
    Jacket Swing Test≤ 1500
    DC Ω at 20°88.24 Ω/km
    Conductor20 x 0.12mm
    Copper Jacket Tensile Strength≤ 7 MPa
    Capacitance43 pF/m
    Drain Wire7 x 0.20 mm Cooper
    Insulation Tensile Strength≤ 10 mPa
    Jacket Elongation≤ 150%
    Rated Temperature Voltage (V/DC)60°C / 30°C
    Insulation Swing Test≤ 1500
    Jacket MaterialBlack PVC
    Characteristic Impedance110 Ω
    Insulation Elongation≤ 150%
    Jacket Thickness1.0mm
    Withstand Voltage0.5mA
    Insulation MaterialPolyethylene
    Shield Coverage87%
    Filler MaterialPPR
    Insulation Diameter
    1.65mm (±0.10mm)
    Shield DC Ω at 20°C12.97 Ω/km
    Outside Diameter
    8.0mm (±0.30mm)
    Insulation Thickness0.5mm

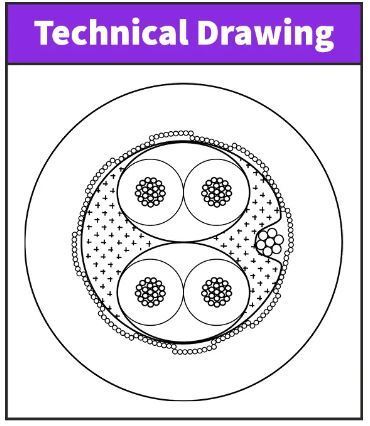

    Shield Construction
    16*9 0.20mm Braided Copper
    Notes
