Buy Elite Core CSD3-NN-200-TOP, 200ft 3-Pin DMX Cable with Top Connectors

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Pictures shown are for illustrative purpose only. Actual product may vary

Options and Related Products

Cable Length (ft):: Cable Length (ft): 200

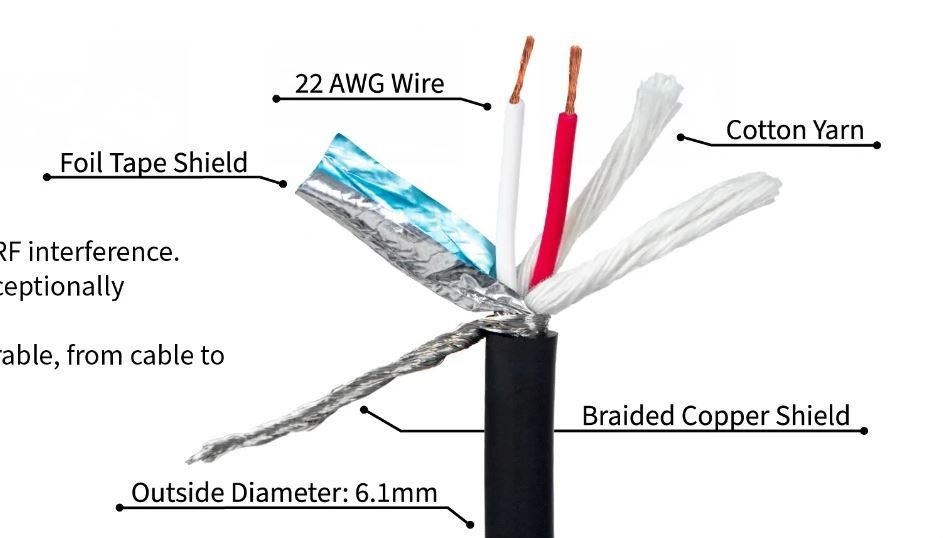

Features:

110 Ω low capacitance.
Braided Copper shielding blocks EMI and RF interference.
Cotton filler allows the cable to remain exceptionally manageable and to coil easily.
They are designed to be extremely resilient and durable, from cable to connector.

A braided copper shield and a natural cotton filler result in an extremely durable cable, while remaining easy to handle and comfortable to coil.

Elite Core's CSD Custom Shop digital cables are hand-built by skilled technicians in Greenbrier, Arkansas, USA facility. Only the finest materials and most effective techniques are used. Every detail - the cable construction, the connector choice, the solder, the flux, the shrink tube, the testing, and the packaging, is carefully chosen to create the finest stage and touring DMX cable.

Connectors

CSD3 cables are hand-terminated at headquarters with genuine TOP Series connectors.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Wire	22-AWG Wrap
Material	100% AL
Jacket Swing Test	≤ 1500
DC Ω at 20°	88.24 Ω/km
Conductor	20 x 0.12mm
Copper Jacket Tensile Strength	≤ 7 MPa
Capacitance	40 pF/m
Insulation Tensile Strength	≤ 10 MPa
Jacket Elongation	≤ 150%
Rated Temperature Voltage (V/DC)	30°C
Insulation Swing Test	≤ 1500
Jacket Material	Black PVC
Characteristic Impedance	110 Ω
Insulation Elongation	≤ 150%
Jacket Thickness	1.0mm
Withstand Voltage	0.5mA
Insulation Material	Polyethylene
Shield Coverage	94%
Filler Material	Cotton
Insulation Diameter	1.8mm (±0.10mm)
Shield DC Ω at 20°C	18.67 Ω/km
Outside Diameter	6.1mm (±0.20mm)
Insulation Thickness	0.5mm

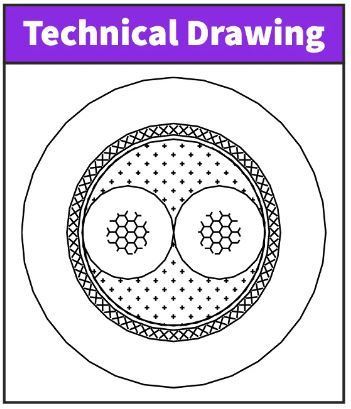

Shield Construction	16*9 0.10mm Braided Copper

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Wire	22-AWG Wrap
Material	100% AL
Jacket Swing Test	≤ 1500
DC Ω at 20°	88.24 Ω/km
Conductor	20 x 0.12mm
Copper Jacket Tensile Strength	≤ 7 MPa
Capacitance	40 pF/m
Insulation Tensile Strength	≤ 10 MPa
Jacket Elongation	≤ 150%
Rated Temperature Voltage (V/DC)	30°C
Insulation Swing Test	≤ 1500
Jacket Material	Black PVC
Characteristic Impedance	110 Ω
Insulation Elongation	≤ 150%
Jacket Thickness	1.0mm
Withstand Voltage	0.5mA
Insulation Material	Polyethylene
Shield Coverage	94%
Filler Material	Cotton
Insulation Diameter	1.8mm (±0.10mm)
Shield DC Ω at 20°C	18.67 Ω/km
Outside Diameter	6.1mm (±0.20mm)
Insulation Thickness	0.5mm
Shield Construction	16*9 0.10mm Braided Copper

Note

Note: Please read description carefully. Do not base your order on the picture presented.
