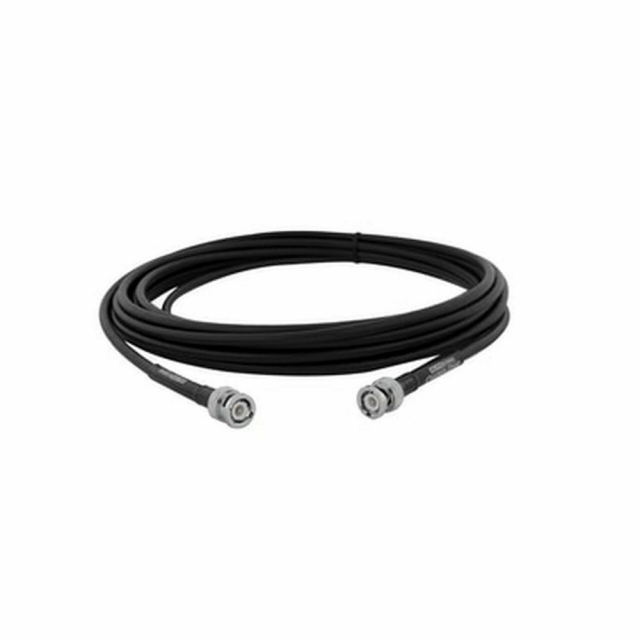

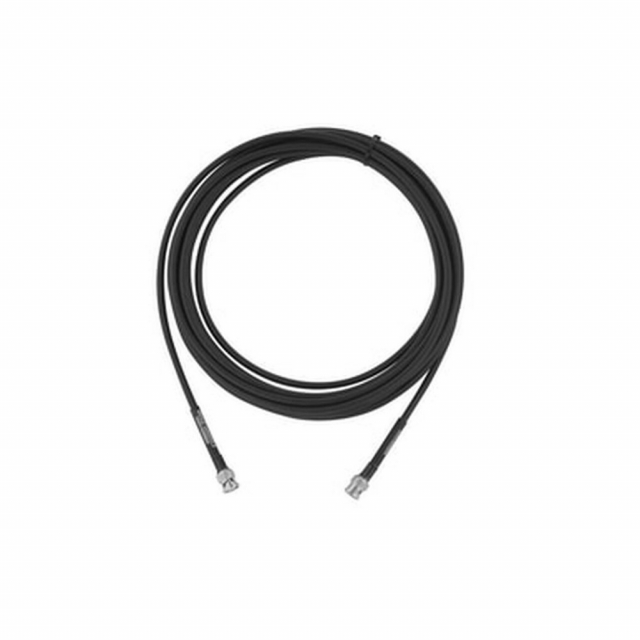

Buy Elite Core CSA-150, Antenna Cable, 150 ft

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Conductors	1
AWG Size	16
Stranding	19x29
Insulation with Tape Barrier	Gas Injected PE
Insulation Nom. O.D.	0.155"
Shield Type and % Coverage	Bare Copper Braid, 95%
Jacket Type	PVC
Nom. O.D.	0.242"
Nominal Capacitance Conductor to Shield	25pf per foot
Vel. of Prop.	82%
Nom. Imp.	50 ohms
Nom. D.C.R. (Resistance) at 68 degrees F	4.3 ohms per 1,000'

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Conductors	1
AWG Size	16
Stranding	19x29
Insulation with Tape Barrier	Gas Injected PE
Insulation Nom. O.D.	0.155"
Shield Type and % Coverage	Bare Copper Braid, 95%
Jacket Type	PVC
Nom. O.D.	0.242"
Nominal Capacitance Conductor to Shield	25pf per foot
Vel. of Prop.	82%
Nom. Imp.	50 ohms
Nom. D.C.R. (Resistance) at 68 degrees F	4.3 ohms per 1,000'

Note: Please read description carefully. Do not base your order on the picture presented.
