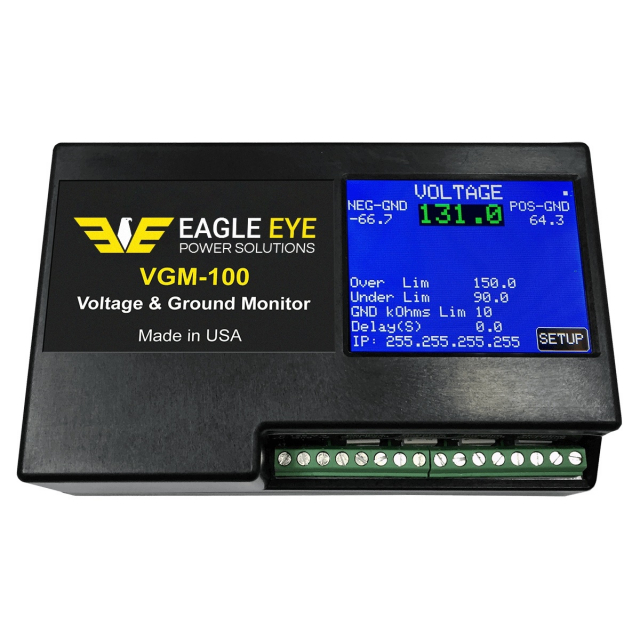

Eagle Eye VGM-100-24V 24Vdc Voltage Ground Monitor with Modbus

VGM-100-24V Includes Only:

• VGM-Series Monitor
• DIN rail mounting clip
• Backplate for wall mounting

Features:

• Color touchscreen with simple interface
• Ethernet connectivity to web interface
• Modbus TCP/IP output for all measured parameters
• Simple installation with mounting kit for DIN rail or wall mount
• Monitor 24, 48, 125, or 250 volt batteries
• Form C contacts for each measured parameter

The Eagle Eye VGM-Series is an inexpensive and simple solution for monitoring battery string voltage and battery ground faults. For monitoring of both string voltage and ground faults, the VGM-100 is available. The VM-100 is available for only monitoring string voltage, and the GFM-100 is available for monitoring of ground faults. All models read battery bus status, detect out-of-limit conditions, and provide alarm indications per user settings. The monitor's status, under-voltage and over-voltage trip values, ground fault, time delay, and IP address settings are accessible on the color touchscreen. Output contacts and Modbus protocol are available on all units. The VGM-Series is extremely durable and easily installed as a wall, panel, or DIN rail unit.
