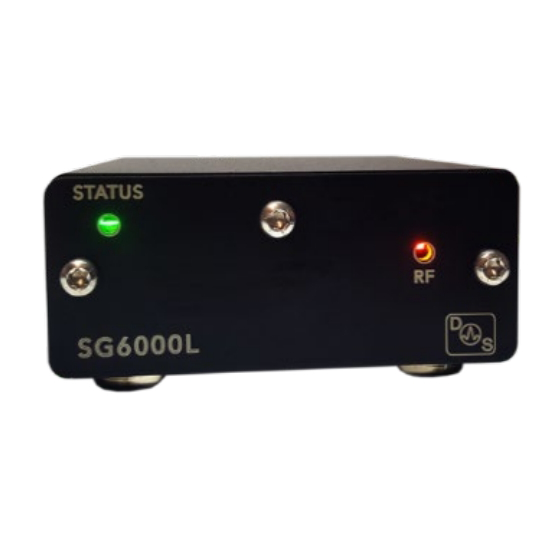

DS Instruments SG6000 6GHz Compact Signal Generator, without Display

Features:

• Stand-alone and USB remote operation
• Up to 6GHz output frequency
• Adjustable output power (Step & Variable)
• Industry-standard SCPI command support
• Internal ±2.5PPM TCXO 10MHz reference
• Front user frequency step buttons
• Frequency-sweeping support
• Front-mounted bright OLED display
• Sturdy black all-aluminum enclosure
• Simple Windows control GUI
• Low voltage monitor
• Powered from standard micro-USB like a smartphone
• Easy to interface with all software packages (Matlab, python, android, linux, ios...)
• Optional Ethernet control
• Optional internal lithium-ion battery pack

The DS Instruments SG6000L ultra-compact RF Signal Generator continues to set the industry standard in affordable and portable RF Signal Generation. The SG6000L enables users to generate a high quality RF signal easily and at extremely low cost without need for a host PC. This fully synthesized, modern fractional N synthesis device covers 7 octaves from 24 to 6000 MHz. Max output power is typically above +15 dBm and can be adjusted downward in 0.5dB steps, or continuously via the internal variable attenuator. The RF output step size varies from a maximum of ~3 KHz to less than 40 Hz, depending on band of operation. The crisp OLED display provides useful feedBack for the user, and front control buttons provide a quick alternative to USB control. Like most of products, the SG6000L easily fits in the palm of your hand, making it a truly portable and bench-space-saving device.

System Operation Modes:

• RF Power Meter and Frequency Counter (simultaneous)
• Signal Generator & Power Meter (simultaneous)
• Power Meter (manual frequency calibration)
• Frequency Counter
• RF Signal Generator
• High-power RF Divider (1X, 2X, 4X, 8X)

SG6000L Common Applications:

• Automated testing environments
• General RF Lab use
• Flexible LO sourcing
• Antenna design
• EMC Testing
• Production verification and testing
• Educational / university lab use
• Aerospace / Defense Research
• 802.11n Development / Testing
• LTE Engineering

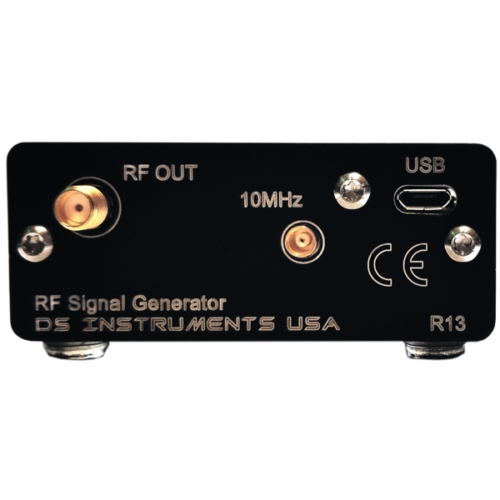

Signal Source Mechanical Data:

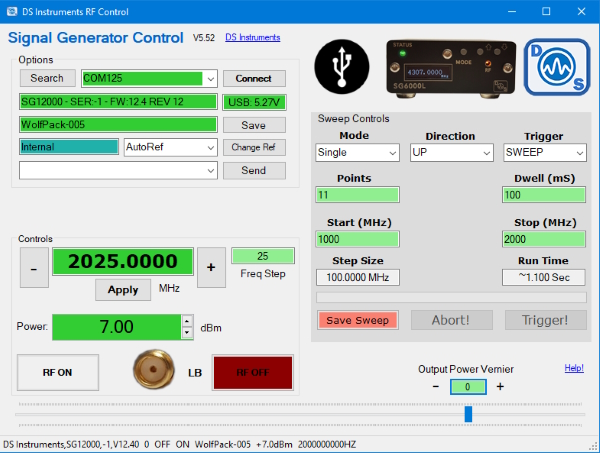

Windows PC Control Software:

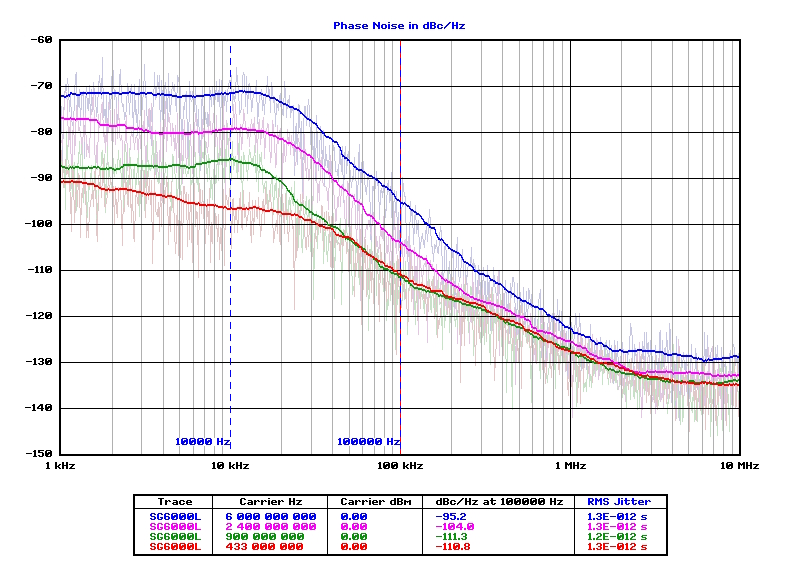

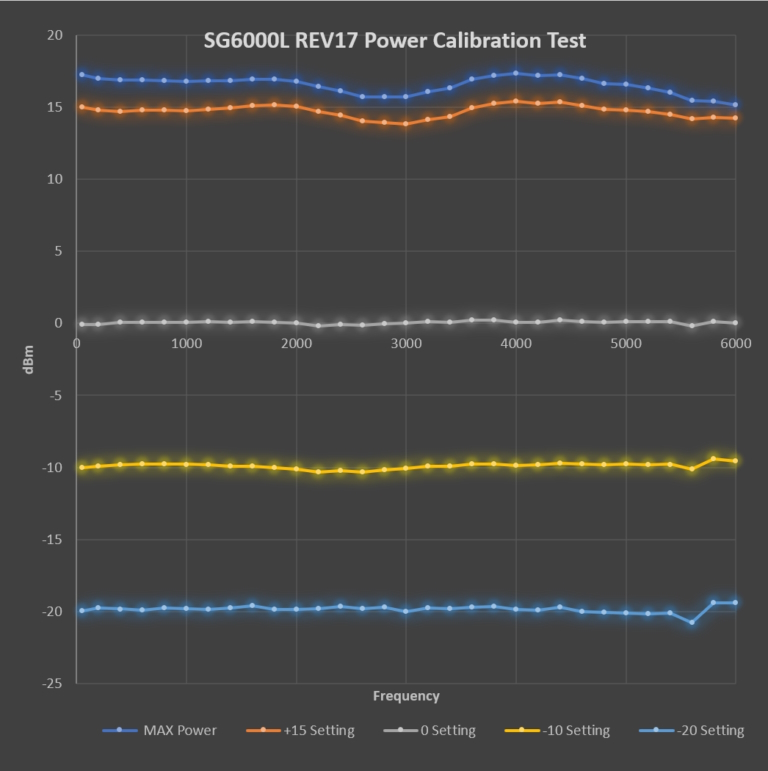

RF Performance Highlights:
