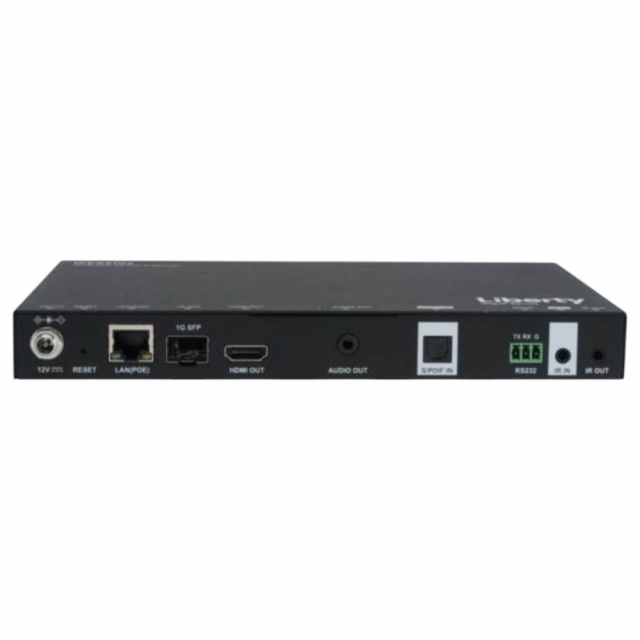

Buy DigitaLinx IPEX5102, DigiIP 5100 Series AV Over IP Decoder

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Model:: Model: IPEX5102

IPEX5102 Includes Only:

HDMI Over IP Encoder
Installation Guide
Power Supply with US, UK, EU, and AU adapters
3-pin Removable Screw Terminal
Mounting Brackets (4 ea)
IR Emitter
IR Receiver

Features:

Fully routable AV over IP decoder over 1Gbps network supporting resolutions up to 4K60 4:4:4 & dynamic HDR formats such as HDR10 & Dolby Vision
Supports Video Walls up to 16x16
Dual network input including RJ45/PoE and SFP for fiber applications
Supports 4K60 4:4:4, Dolby Vision, HDR10, and 7.1 Audio
HDCP 2.2 Compliant
Fully routable/switchable USB Supports Isochronous data up to 190Mbps
Dante audio support included with all 5100 encoders & decoders
802.1X & SSH security with AES256 video stream encryption
Build, Manage, & Control with simplicity using Liberty's award winning Arranger software
TAA Compliant

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Input/Output Connections

HDMI Input

One (1) HDMI Type A Receptacle

HDMI Output

One (1) HDMI Type A Receptacle

LAN

One (1) 8P8C port (Shielded RJ45)

Power

One (1) 5.5 mm OD, 2.6 mm ID Threaded Barrel

RS232 Port

One (1) 3-pin Removable Terminal Block Connector

USB Device

One (1) USB Type B Port

Audio Input

One (1) 3.5 mm TRS Receptacle

Audio Output

One (1) 3.5 mm TRS Receptacle

IR Input

One (1) 3.5 mm TRS Receptacle

IR Output

One (1) 3.5 mm TRS Receptacle

Reset

One (1) Momentary Push Button

Mode

One (1) Two Position Slider Switch

DIP

One (1) Four Position DIP Switch

Supported Audio, Video and Control

Video Resolutions

SMPTE: 480p, 576p, 720p, 1080i, 1080p, 2160p/30 (4:4:4), 2160p/60 (4:2:0)
VESA: Resolutions up to 1920x1200

Color Depth

24, 30, 36 bit

Video Compliance

HDMI 1.4 and HDCP 1.4/2.2

Embedded Audio

Up to PCM 8 channel, Dolby Digital True HD, DTS-HD Master Audio, Dolby Atmos and DTS-X

ARC (Audio Return Channel)

HEC (HDMI Ethernet Channel)

CEC (Consumer Electronics Control)

Supported Baud Rates

2400, 4800, 9600, 19200, 38400, 57600, 115200

USB Compliance

USB 2.0 Full Speed up to 12Mbps

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

WARNING: This product can expose you to chemicals including DINP and/or DEHP, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Details

Input/Output Connections

HDMI Input

One (1) HDMI Type A Receptacle

HDMI Output

One (1) HDMI Type A Receptacle

LAN

One (1) 8P8C port (Shielded RJ45)

Power

One (1) 5.5 mm OD, 2.6 mm ID Threaded Barrel

RS232 Port

One (1) 3-pin Removable Terminal Block Connector

USB Device

One (1) USB Type B Port

Audio Input

One (1) 3.5 mm TRS Receptacle

Audio Output

One (1) 3.5 mm TRS Receptacle

IR Input

One (1) 3.5 mm TRS Receptacle

IR Output

One (1) 3.5 mm TRS Receptacle

Reset

One (1) Momentary Push Button

Mode

One (1) Two Position Slider Switch

DIP

One (1) Four Position DIP Switch

Supported Audio, Video and Control

Video Resolutions

SMPTE: 480p, 576p, 720p, 1080i, 1080p, 2160p/30 (4:4:4), 2160p/60 (4:2:0)
VESA: Resolutions up to 1920x1200

Color Depth

24, 30, 36 bit

Video Compliance

HDMI 1.4 and HDCP 1.4/2.2

Embedded Audio

Up to PCM 8 channel, Dolby Digital True HD, DTS-HD Master Audio, Dolby Atmos and DTS-X

ARC (Audio Return Channel)

HEC (HDMI Ethernet Channel)

CEC (Consumer Electronics Control)

Supported Baud Rates

2400, 4800, 9600, 19200, 38400, 57600, 115200

USB Compliance

USB 2.0 Full Speed up to 12Mbps

Note

Note: Please read description carefully. Do not base your order on the picture presented.
