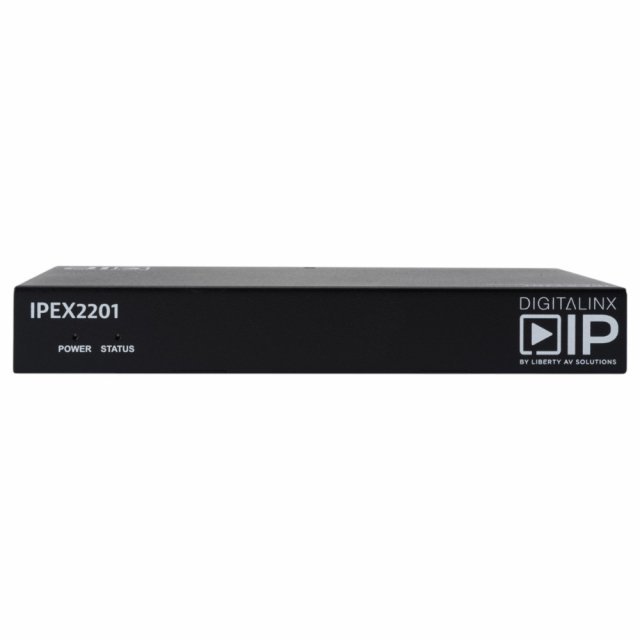

DigitaLinx IPEX2201 DigitalinxIP 2200 Series AV/IP 1080P Encoder

Model: IPEX2201
  • Brand DigitaLinx
  • Part # IPEX2201
  • Model # DigitalinxIP 2200 Series
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Options and Related Products

    Model:
    Model: IPEX2201

    IPEX2201 Includes Only:

    • AV/IP Encoder
    • Installation Guide
    • Power Supply with US, UK, EU, and AU adapters
    • 3-pin Removable Screw Terminal (Phoenix) (2 ea)
    • Mounting Ears (2 ea)
    • IR Emitter Cable (1)
    • IR Receiver Cable (1)

    Features:

    • Transmits HDMI video and audio over 1Gb network infrastructure using H.264 / 265 encoding with a data rate up to 30 Mbps
    • Supports video signals up to 1080p at60 Hz
    • An analog audio output port de-embeds the audio from the HDMI content, while still streaming the audio with the video content
    • Support video wall configurations
    • Operate 3rd party devices via RS232
    • Device supports PoE
    • Backward compatible with all 2100 series DiiIP products for video distribution applications.
    • For video wall applications, ensure entire video wall is 2100 or 2200 series

    Applications:

    • Video Distribution, Digital Signage, Restaurant, Bar, Entertainment, Hospitality
    • Large Scale HDMI distribution
    • Video Wall
    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews

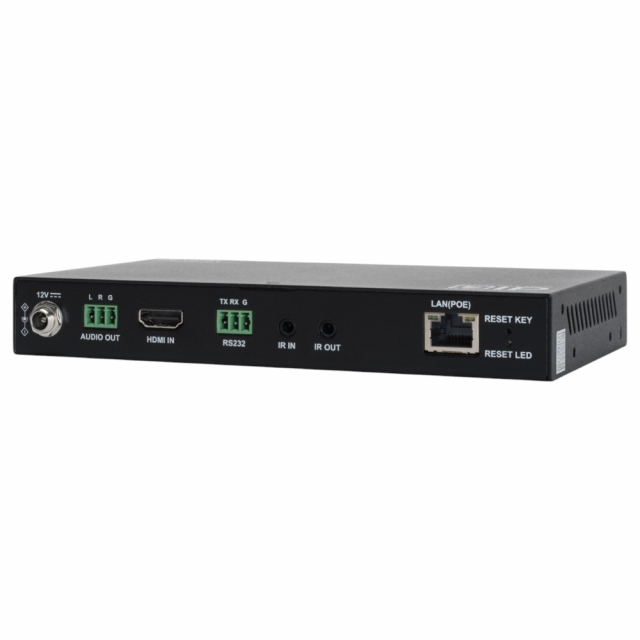

    Input/Output Connections
    HDMI InputOne (1) HDMI Type A Receptacle
    LAN One(1) 8P8C port (Shielded RJ45)
    Power One(1) 5.5 mm OD, 2.6 mm ID Threaded Barrel
    RS232 Port One(1) 3-pin Removable Terminal Block Connector
    Audio Output One(1) 3-pin Removable Terminal Block Connector
    Supported Audio, Video and Control
    Input Video Resolution Support640 x 480 at60Hz, 480p at60Hz, 576i at50Hz, 576P at50Hz, 800 x 600 at60Hz, 1024 x 768 at60Hz, 720p at50Hz, 720p at60Hz, 1280 x 800 at60Hz, 1280 x 1024 at60Hz, 1360 x 768 at60Hz, 1366 x 768 at60Hz, 1400 x 1050 at60Hz, 1440 x 900 at60Hz, 1680 x 1050 at60Hz, 1920 x 540 at60Hz, 1080i at50Hz, 1080i at60Hz, 1080p at50Hz, 1080p at60Hz
    Video ComplianceHDMI 1.3 and HDCP 1.4
    Embedded Audio PCM2 Channel Stereo
    De-embedded Audio2 Channel Stereo
    ARC (Audio Return Channel)No
    HEC (HDMI Ethernet Channel)No
    CEC (Consumer Electronics Control)Yes
    Supported Baud Rates2400, 4800, 9600, 19200, 38400, 57600, 115200
    Streaming Signal Characteristics
    Maximum Distance (point to point)100 m (328 ft)
    Cable Requirements Solid CoreCategory 5e or greater with TIA/EIA-568B crimp pattern
    Encoding DataRate Up to 30 Mbps, Support CBR and VBR
    Encoding MethodH.264/H.265 MPEG-4 AVC
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    ***

    WARNING: This product can expose you to chemicals including DINP and/or DEHP, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

    Product Details
    Input/Output Connections
    HDMI InputOne (1) HDMI Type A Receptacle
    LAN One(1) 8P8C port (Shielded RJ45)
    Power One(1) 5.5 mm OD, 2.6 mm ID Threaded Barrel
    RS232 Port One(1) 3-pin Removable Terminal Block Connector
    Audio Output One(1) 3-pin Removable Terminal Block Connector
    Supported Audio, Video and Control
    Input Video Resolution Support640 x 480 at60Hz, 480p at60Hz, 576i at50Hz, 576P at50Hz, 800 x 600 at60Hz, 1024 x 768 at60Hz, 720p at50Hz, 720p at60Hz, 1280 x 800 at60Hz, 1280 x 1024 at60Hz, 1360 x 768 at60Hz, 1366 x 768 at60Hz, 1400 x 1050 at60Hz, 1440 x 900 at60Hz, 1680 x 1050 at60Hz, 1920 x 540 at60Hz, 1080i at50Hz, 1080i at60Hz, 1080p at50Hz, 1080p at60Hz
    Video ComplianceHDMI 1.3 and HDCP 1.4
    Embedded Audio PCM2 Channel Stereo
    De-embedded Audio2 Channel Stereo
    ARC (Audio Return Channel)No
    HEC (HDMI Ethernet Channel)No
    CEC (Consumer Electronics Control)Yes
    Supported Baud Rates2400, 4800, 9600, 19200, 38400, 57600, 115200
    Streaming Signal Characteristics
    Maximum Distance (point to point)100 m (328 ft)
    Cable Requirements Solid CoreCategory 5e or greater with TIA/EIA-568B crimp pattern
    Encoding DataRate Up to 30 Mbps, Support CBR and VBR
    Encoding MethodH.264/H.265 MPEG-4 AVC
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
