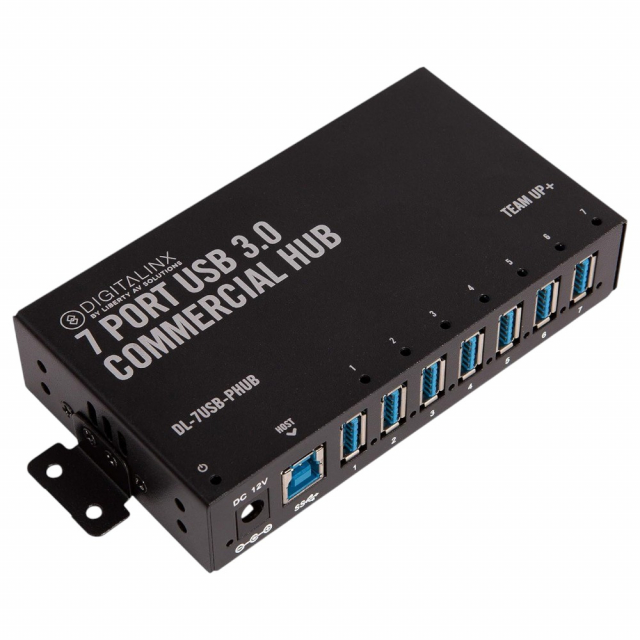

DigitaLinx DL-7USB-PHUB TeamUp+ Series 7 Port Powered Commercial Hub

DigitaLinx, DL-7USB-PHUB, TeamUp+ Series 7 Port Powered USB 3.0 Commercial Hub

DL-7USB-PHUB Includes Only:

• Powered hub
• Mounting brackets
• USB 3.0 cable
• User manual
• External power supply

Features:

• Expansion: Instantly grow from 1 USB port to 7, each equipped with USB 3.0 technology, capable of data at speeds up to 5gbps. Connect various USB peripherals to your laptop or personal computer such as web cameras, microphones, cable cards and disk drives
• Commercial Design: Eliminate cable clutter, metal chassis with vented slots for heat dissipation, provided brackets and screws allow you to mount behind a display or underneath a conference table
• Protection: Overcurrent, overvoltage, and other advanced safety features allow you to maintain and protect your connected devices
• Compliance: Gen USB 3.1 while being fully backways compatible for USB 3.0/ USB 2.0/ USB 1.1
• Data Transfer Rate: Up to 5Gbps shared between all ports
• Support on Upstream Port: SuperSpeed (SS), HighSpeed (HS) and FullSpeed (FS) traffic. Note: Transfer rates are device and USB host controller dependentSupport on Downstream Ports: SuperSpeed (SS), HighSpeed (HS), FullSpeed (FS) and LowSpeed (LS) traffic
• Power Input: Hub will not receive power from host connection. Must use provided, external power supply
• Power Output: Each USB port can receive up to 5v, 1A. Note - All connected USB downstream devices can still receive power even when the hub is not connected to a computer, external power supply needs to be connected. Blue LED lights will not be lite unless the hub is connected to the computer
• Charging Protocol: Supports USB-IF Rev1.2 and BC 1.2 which means the current can output up to 1.5A instead of the standard 0.9A on USB 3.0 when connected to a PC.vices quickly! In addition, data transfer can also take place in accordance with USB 3.0
• Complete Plug and Play: NO additional driver or software required to be recognized by the computer

Applications:

• Perfect for providing power to external USB devices such as cameras, microphones, and other components
