DigitaLinx DL-1H1A1UCWP-H3 HDMI HDBT Wall Plate Extender Set

DL-1H1A1UCWP-H3 Includes Only:

• 1x HDMI + USB-C Wall Plate Transmitter
• 1x HDBaseT Receiver
•  1x Faceplate
•  1x 2pin-3.81mm Phoenix Connector (male)
•  2x 3pin-3.81mm Phoenix Connector (male)
•  1x 24V/2.7A Desktop Power Supply with 2pin-3.81mm Male Phoenix
• Connector (for TX)
•  1x 24V/1A Multinational Locking Power Supply (for RX)
• 4x American Standard Slotted Semi-countersunk Head Screws (6#-32)
•  4x American 6 # -32 Screw
•  4x Machine Screw (M3.5*12)
•  2x Mounting Ear
•  1x User Manual

Features:

• Double Gang Decora style wall plate format Transmitter and standard style Receiver set with accessories
• Uncompressed HDMI 2.0 extension featuring HDBaseT 3.0 offers resolution support up to 4K60 4:4:4, control, and USB2.0 with isochronous data support for cameras and other USB peripherals
• HDMI / USB-C auto switching based on video sense or 5V detection
• USB-C full featured passes AV via ALT-DP, acts as a USB host, and provides power to connected devices when optional second power supply is used
• HDMI 2.0b, HDCP 2.2 18Gbps 4K60 4:4:4 to 40m over Cat6a or above, 10.2Gbps 4K60 4:2:0 to 70m
• Supports HDR, HDR10+, Dolby Vision LLM, HLG
• Supports USB2.0 High Speed (1) Host (2) Clients on TX, (2) Clients on RX
• Supports Isochronous USB data for maximum camera compatibility
• Audio de-embed on RX
• Includes 2 power supplies and 4 mounting ears. First power supply is for the RX. RX will supply PoC power to the wall plate TX for full functionality. Second power supply is optional and will supply charging power to the USB-C port for charging connected devices.

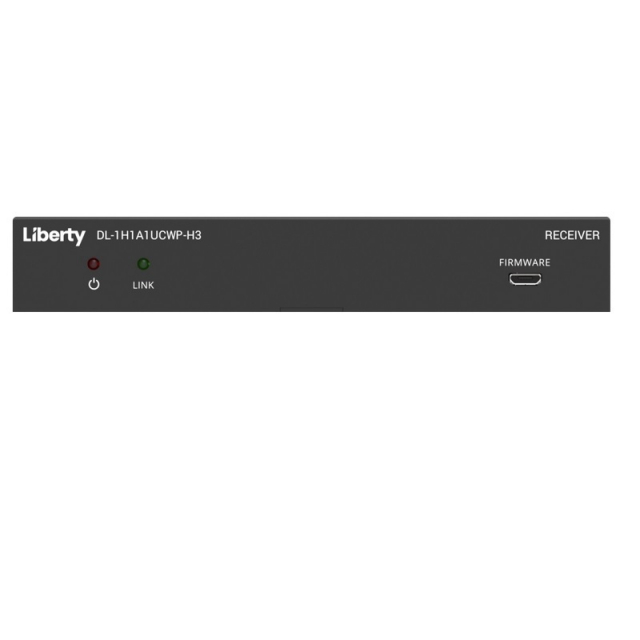

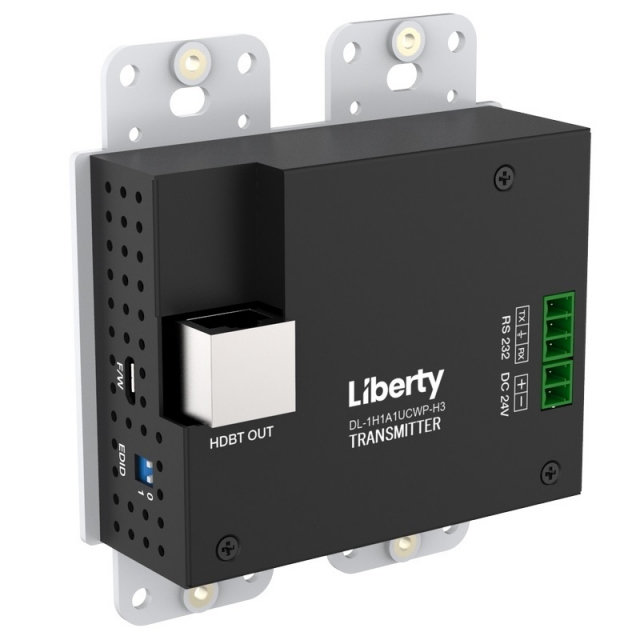

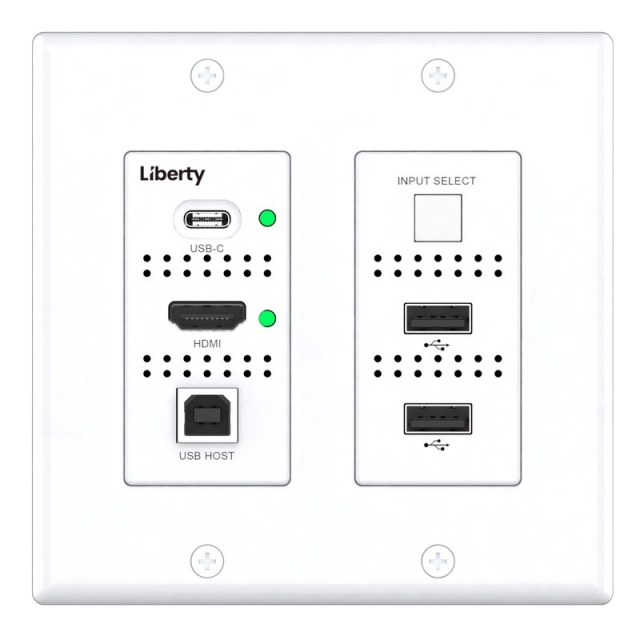

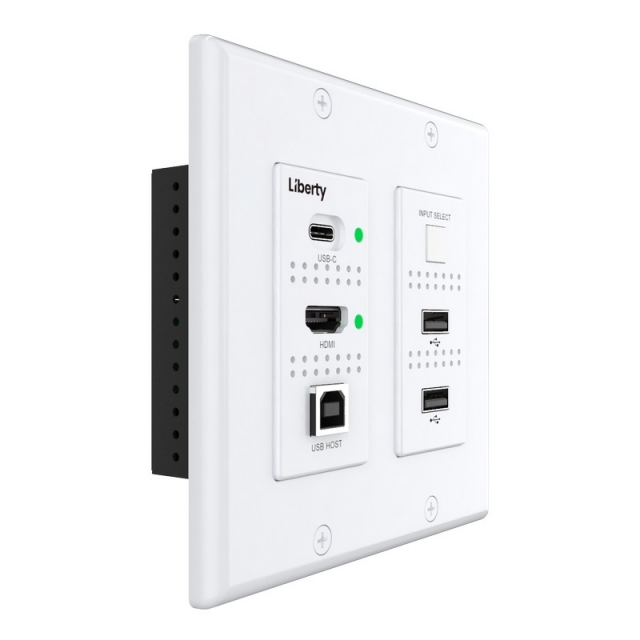

This wall plate extension set is based on HDBaseT 3.0 VS300R, with a standard US 2GANG Decora design. Uncompressed video signaltransmission distance can be extended up to 230ft/70m for 4K at30Hz, or 131ft/40m for 4K at60Hz over a single CAT6A/7 (F/FTP) cable as well as power and USB2.0 data. The transmitter features 1x HDMI input, 1x USB-C (40W charging), 1x USBB host and 2x USB-A client ports. USB-C passes ALT-DP Audio/Video, USB 2.0 Data, and power. Ensure all connected USB-C sources support ALT-DP mode prior to use. The receiver features1x HDMI output, 2x USBA client ports, 1x Audio de-embedding port. This product supports RS-232 signal pass-through, EDID management and 24V bidirectional PoC (power over cable) function.
