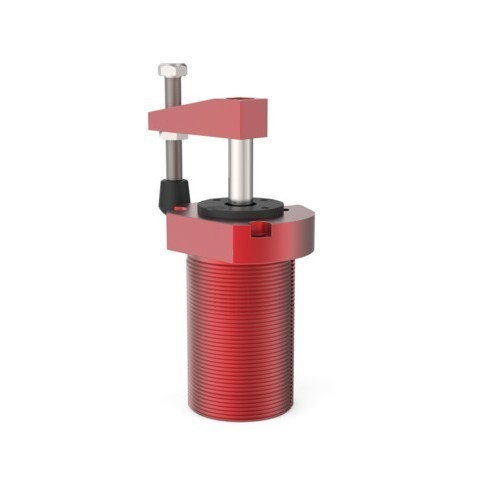

Buy Destaco 8216, 8200 Series Left Hand Pneumatic Swing Cylinder

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Clamping Arm:: Clamping Arm: Included

Features:

Threaded body may be mounted in a tapped hole. May be mounted with the upper flange
Sensor ready for use with round style sensors
Clamp arm and spindle included

Applications:

Assembly
Welding
Light machining

For more information, please see pdf file Data Sheet

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Stroke during rotation (in)

0.75

Vertical clamp stroke (in)

0.5

Weight (lb)

2.2

Clamping Force at 5Bar (72Psi) (lbf.)

Stroke (in)

1.25

Air Consumption (per double stroke at 7 psi) (in³)

0.015

Cylinder Bore (in)

1.5

Swing Direction

Mount

Threaded Body

Product Function

Clamping

Sensor Ready

Yes

Air Port size

3/8-16

Dimensions

ØD1 - 3" (76,2mm)
ØD2 - 0.5" (12,7mm)
ØD3 - 0.28" (7,1mm)
ØD4 - 2.66" (67,6mm)
Stroke - 1.25" (31,8mm)
H1 - 0.97" (24,6mm)
H2 - 0.81" (20,6mm)
H3 - 3.36" (85,3mm)
H4 - 0.75" (19,1mm)
H5 - 0.67" (17mm)
H6 - 0.25" (6,4mm)
L1 - 1.16" (29,5mm)
L2 - 2" (50,8mm)
L3 - 0.38" (9,6mm)
L4 - 0.75" (19,1mm)
M - 2-1/4-12
M1 - 5/16-18
M2 - 1/8 NPT
M3 - 3/8-16

Notes
