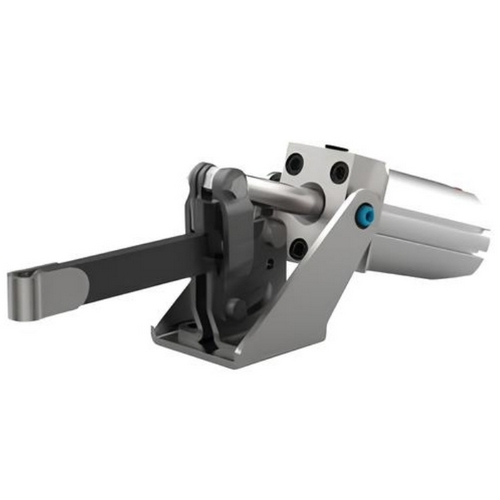

Buy Destaco 807-S-LC, 8000 Series Replacement Clamp Assembly Less Cylinder - Mega Solutions LLC

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

Pneumatic version of Series 207 manual clamps
Sensor ready for round or T-slot sensors
Built-in flow restriction eliminates need for external flow controls

Applications:

Assembly
Welding

Standard powerclamp less cylinder.

For more information, please see pdf file Data Sheet and User Manual

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Maximum Holding Capacity
Inner	2220 N [500 lbf]
Outer	1160 N [260 lbf]
Max. Exerting Force at 5 bar [72 PSI]
Inner	2412 N [540 lbf]
Outer	804 N [180 lbf]
Weight	1.66 lbs (0.75kg)
Bore Size	1.26" (32mm)
Air Consumption ft³	0.015ft³
Port Size	1/8 NPT

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Maximum Holding Capacity
Inner	2220 N [500 lbf]
Outer	1160 N [260 lbf]
Max. Exerting Force at 5 bar [72 PSI]
Inner	2412 N [540 lbf]
Outer	804 N [180 lbf]
Weight	1.66 lbs (0.75kg)
Bore Size	1.26" (32mm)
Air Consumption ft³	0.015ft³
Port Size	1/8 NPT
