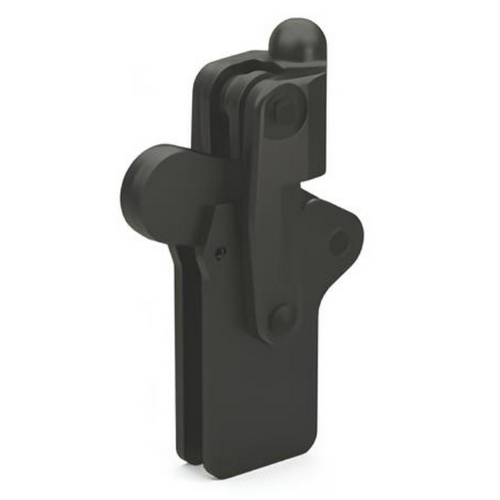

Buy Destaco 505-MB, 500 Series Vertical Hold-Down Toggle Locking Clamp

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

Applications:

For more information, please see pdf file Data Sheet

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Weight (lb)	3.09
Height To Top Of Clamp Arm (in)	3.89
Maximum Holding Capacity (lbf)	2400
Clamp Arm Length (in)	0.99
Clamp Bar Opening (+10°) (degrees)	200
Product Function	Clamping
Base Mounting Style	Swivel
Product Type	Modular Hold-Down Clamps
Accomodates Workpiece Variation	No
Handle	Vertical
Toggle Lock Plus	No
Clamp Arm Style	Weldable
Standard Material	Forged alloy steel
Duty Cycle	3
Service Environment	Harsh/Dirty

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Weight (lb)	3.09
Height To Top Of Clamp Arm (in)	3.89
Maximum Holding Capacity (lbf)	2400
Clamp Arm Length (in)	0.99
Clamp Bar Opening (+10°) (degrees)	200
Product Function	Clamping
Base Mounting Style	Swivel
Product Type	Modular Hold-Down Clamps
Accomodates Workpiece Variation	No
Handle	Vertical
Toggle Lock Plus	No
Clamp Arm Style	Weldable
Standard Material	Forged alloy steel
Duty Cycle	3
Service Environment	Harsh/Dirty

Note: Please read description carefully. Do not base your order on the picture presented.
