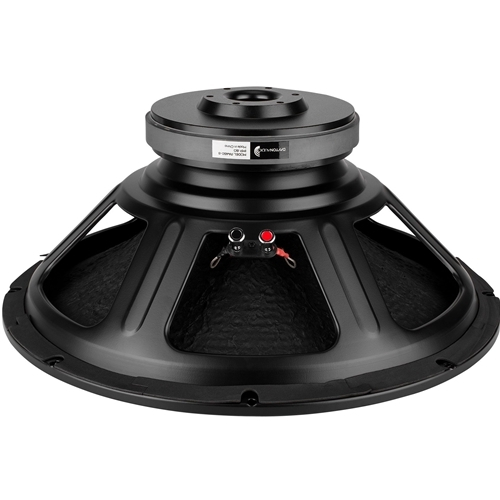

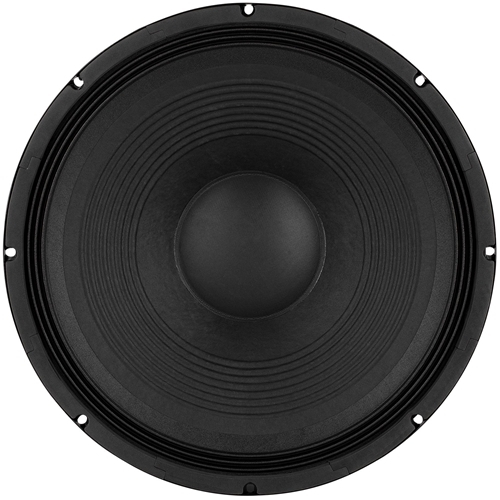

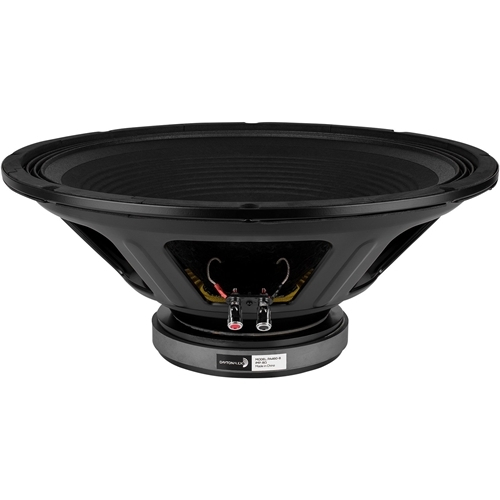

Dayton Audio 295-036 PA460-8 18" Pro Woofer Speaker, 8 Ohm

Nominal Diameter (in): 18
  • Brand Dayton Audio
  • Part # 295-036
  • Model # PA460-8
  • Condition
    Brand New
    Availability
    Typically In Stock
    Quantity
    Share:
    Ask a question

    Options and Related Products

    Nominal Diameter (in):
    Nominal Diameter (in): 18

    Features:

    • Strong, low-mass carbon fiber-impregnated paper cone
    • I-beam rolled edge 1.5 mm steel frame
    • Low distortion motor system w/copper cap
    • Powerful 80 oz. ceramic ferrite magnet
    • Vented pole piece/vented voice coil gap improves thermal management
    • Black motor parts and black polyimide voice coil former dissipate heat
    • Bumped back plate for an unrestricted excursion

    Dayton Audio PA Series Pro Woofers are a great upgrade for a musical instrument or sound reinforcement cabinets and also excel in custom-built speaker systems. High power handling, smooth response, low distortion, deep punchy bass, and rugged reliability are the features that set PA Series woofers apart from other drivers - premium performance, but value priced.

    Dimensions:

    Note: Speakers with a burned voice coil are not returnable for exchange, repair, or refund credit, as this is not covered by its warranty.

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Technical Details

    Reviews
    ColorBlack
    Product Shipping Weight (lbs.)24.5
    Speaker TypeWoofer
    Nominal Diameter18"
    Power Handling (RMS)500 watts
    Power Handling (max)Continuous Program Power
    Impedance8 ohms
    Sensitivity97.8 dB at 2.83V/1m
    Frequency Response26 - 2,000 Hz
    Voice Coil Diameter76 mm
    Magnet Weight80 oz.
    DC Resistance (Re)5.6 ohms
    Voice Coil Inductance (Le)3.9 mH
    Resonant Frequency (Fs)28.3 Hz
    Mechanical Q (Qms)11.2
    Electromagnetic Q (Qes)0.34
    Total Q (Qts)0.33
    Diaphragm Mass Inc. Airload (Mms)171g
    Mechanical Compliance of Suspension (Cms)0.19 mm/N
    Surface Area Of Cone (Sd)1,241.1 cm2
    Volume of Displacement (Vd)746.5 cm3
    BL Product (BL)22.3 Tm
    Compliance Equivalent Volume (Vas)402 liters
    Maximum Linear Excursion (Xmax)6.0 mm
    Cone / Diaphragm MaterialPaper / Carbon Fiber Cone
    Surround MaterialCloth
    Voice Coil Wire MaterialCopper
    Voice Coil FormerKapton® / Polyimide
    Basket/Frame MaterialSteel
    Magnet MaterialFerrite
    Overall Outside Diameter460 mm
    Overall Depth198 mm
    Baffle Cutout Diameter425 mm
    # Mounting Holes8
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    ColorBlack
    Product Shipping Weight (lbs.)24.5
    Speaker TypeWoofer
    Nominal Diameter18"
    Power Handling (RMS)500 watts
    Power Handling (max)Continuous Program Power
    Impedance8 ohms
    Sensitivity97.8 dB at 2.83V/1m
    Frequency Response26 - 2,000 Hz
    Voice Coil Diameter76 mm
    Magnet Weight80 oz.
    DC Resistance (Re)5.6 ohms
    Voice Coil Inductance (Le)3.9 mH
    Resonant Frequency (Fs)28.3 Hz
    Mechanical Q (Qms)11.2
    Electromagnetic Q (Qes)0.34
    Total Q (Qts)0.33
    Diaphragm Mass Inc. Airload (Mms)171g
    Mechanical Compliance of Suspension (Cms)0.19 mm/N
    Surface Area Of Cone (Sd)1,241.1 cm2
    Volume of Displacement (Vd)746.5 cm3
    BL Product (BL)22.3 Tm
    Compliance Equivalent Volume (Vas)402 liters
    Maximum Linear Excursion (Xmax)6.0 mm
    Cone / Diaphragm MaterialPaper / Carbon Fiber Cone
    Surround MaterialCloth
    Voice Coil Wire MaterialCopper
    Voice Coil FormerKapton® / Polyimide
    Basket/Frame MaterialSteel
    Magnet MaterialFerrite
    Overall Outside Diameter460 mm
    Overall Depth198 mm
    Baffle Cutout Diameter425 mm
    # Mounting Holes8
    Note

    Note: Please read description carefully. Do not base your order on the picture presented.
