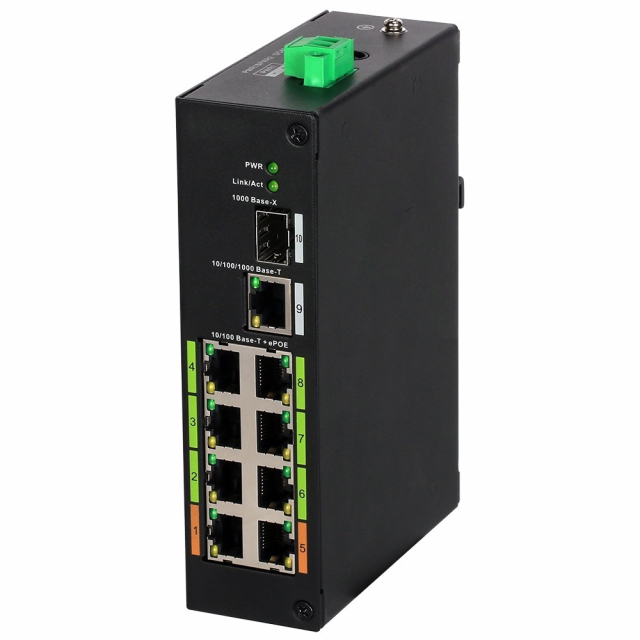

Buy Dahua DH-LR2110-8ET-120, 8-Port ePoE Layer 2 Switch

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Features:

Layer 2 Network ePoE Switch
Enhanced Power and Data Transmission Distances with ePoE
Supports Long Distance ePoE Transmission, up to 800 m (2524 ft)
MAC Auto Study and Aging, 8K MAC Address List Capacity
Supports the IEEE802.3af and IEEE802.3at Standards and Hi-PoE Conforms to the IEEE802.3, IEEE802.3u, IEEE802.3ab/z and the IEEE802.3X Standards
Indicator LEDs Display the Transmission Mode (IEEE, E100, E10)
Designed for Extreme Temperature Environments

The DH-LR2110-8ET-120 is an 8-port ePoE Ethernet switch that supports PoE, PoE+, Hi-PoE, and PoC transmission standards. The switch is a component of Dahua's innovative Enhanced Power over Ethernet (ePoE) system that transmits power and data over long distances without the need for repeaters or multiple switches.

For more information, please see Data Sheet

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Uplink Ports

One (1) 1000 Base-X Port
One (1) 10/100/1000 Base-T Port

Downstream Ports

Eight (8) 10/100 Base-T Ports (PoE Power Supply)

PoE Power Consumption

Hi-PoE: Ports 1 and 5 Consumption: up to 60 W per port
IEEE802.3af, IEEE802.3at: Ports 2, 3, 4, 6, 7, 8 Consumption: up to 30 W per port
Enhanced PoE (ePoE) : Ports 1 to 8
Total PoE Budget: ≤ 120 W

PoE Protocol

PoE (IEEE802.3af) , PoE+ (IEEE802.3at) , Hi-PoE

Switching Capacity

8.8 Gbps

Packet Forwarding Rate

4.17 Mpps

Packet Buffer Memory

2.75 MB

MAC Table Size

Flow Control

Enable by default

Power Requirements

48 VDC to 57 VDC Power Adapter

Operating Temperature

-30° C to 65° C (-22° F to 149° F)

Application Humidity

10% to 90%

Lightning Protection

Common Mode: 4 KV
Differential Mode: 2 KV

Dimensions (W x D x H)

150.0 mm x 100.0 mm x 42.0 mm / 5.91 in. x 3.94 in. x 1.65 in.

Weight

0.59 kg (1.30 lb)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Uplink Ports

One (1) 1000 Base-X Port
One (1) 10/100/1000 Base-T Port

Downstream Ports

Eight (8) 10/100 Base-T Ports (PoE Power Supply)

PoE Power Consumption

Hi-PoE: Ports 1 and 5 Consumption: up to 60 W per port
IEEE802.3af, IEEE802.3at: Ports 2, 3, 4, 6, 7, 8 Consumption: up to 30 W per port
Enhanced PoE (ePoE) : Ports 1 to 8
Total PoE Budget: ≤ 120 W

PoE Protocol

PoE (IEEE802.3af) , PoE+ (IEEE802.3at) , Hi-PoE

Switching Capacity

8.8 Gbps

Packet Forwarding Rate

4.17 Mpps

Packet Buffer Memory

2.75 MB

MAC Table Size

Flow Control

Enable by default

Power Requirements

48 VDC to 57 VDC Power Adapter

Operating Temperature

-30° C to 65° C (-22° F to 149° F)

Application Humidity

10% to 90%

Lightning Protection

Common Mode: 4 KV
Differential Mode: 2 KV

Dimensions (W x D x H)

150.0 mm x 100.0 mm x 42.0 mm / 5.91 in. x 3.94 in. x 1.65 in.

Weight

0.59 kg (1.30 lb)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
