Buy D-Link DGS-1510-52X, Smart Switch w/ 10G Uplinks, 52-Port, 4 10Gb SFP+

info@megasolutions.llc

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Interface:: Interface: 48 x 10/100/1000BASE-T Ports

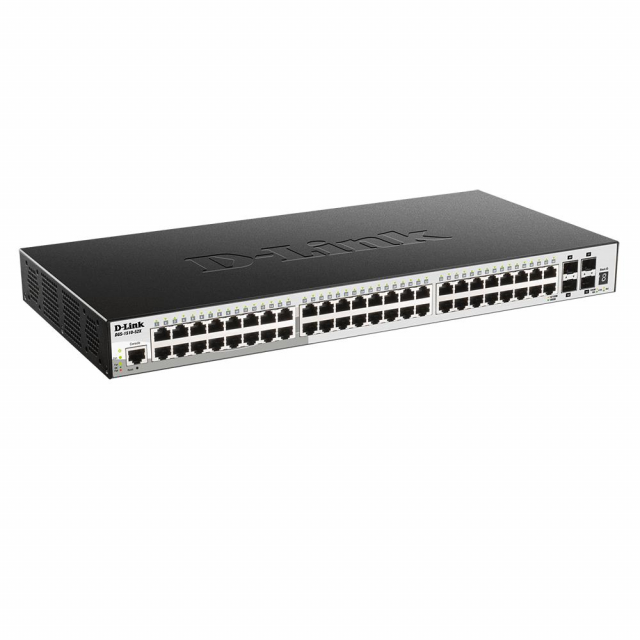

D-Link, DGS-1510-52X, Gigabit Stackable Smart Managed Switch with 10G Uplinks, 52-Port, 4 10GbE SFP+ Ports

Features:

Power over Ethernet
Two 10G SFP+ stacking/uplink ports
Flexibility and scalability
Extensive Layer 2 features
QoS, bandwidth control
Secure your network
IPv6 ready
Versatile management
Layer 3 traffic management
Energy saving

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Hardware Version

Size

19” standard rack width, 1U height

Interfaces

48 x 10/100/1000 Mbps
4 x 10G SFP+

Port Standards and Functions

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3ae 10 Gigabit Ethernet
IEEE 802.3x Flow Control for full-duplex mode, auto-negotiation

Network Cables

UTP Cat. 5, Cat. 5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)

Duplex Mode

Full/half-duplex for 10/100 Mbps and full-duplex for 1000 Mbps speed

Media Interface Exchange

Auto or configurable MDI/MDIX

Switching Capacity

176 Gbps

Transmission Method

Store-and-forward

MAC Address Table

Up to 16,384 entries per device

MAC Address Update

Up to 512 static MAC entries
Enable/disable auto-learning of MAC addresses

Maximum Packet Forwarding Rate

130.95 Mpps

Packet Buffer Memory

3 MB per device

MTBF

423,302 hours

Diagnostic LEDs

Power/Stacking ID/Fan (per device)
Link/Activity/Speed (per 10/100/1000 Mbps port)
Link/Activity/Speed (per Gigabit SFP port)
Link/Activity/Speed (per 10G SFP+ port)

AC Input

100 to 240 VAC 50/60 Hz internal universal power supply

Maximum Power Consumption

48 W

Standby Power Consumption

30.3 W

Fans

1 x smart fan

Acoustics

49.7 dB(A)

Heat Dissipation

163.68 BTU/hr

Operating Temperature

23 F to 122 F (-5 C to 50 C)

Operating Humidity

0% to 95% non-condensing

Dimensions

17.36 x 8.26 x 1.73 in (440 x 210 x 44 mm)

Weight

6.83 lbs (3.1 kg)

Certifications

CE, FCC, C-Tick, VCCI, BSMI, CCC

Safety

cUL, CB

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Hardware Version

Size

19” standard rack width, 1U height

Interfaces

48 x 10/100/1000 Mbps
4 x 10G SFP+

Port Standards and Functions

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3ae 10 Gigabit Ethernet
IEEE 802.3x Flow Control for full-duplex mode, auto-negotiation

Network Cables

UTP Cat. 5, Cat. 5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)

Duplex Mode

Full/half-duplex for 10/100 Mbps and full-duplex for 1000 Mbps speed

Media Interface Exchange

Auto or configurable MDI/MDIX

Switching Capacity

176 Gbps

Transmission Method

Store-and-forward

MAC Address Table

Up to 16,384 entries per device

MAC Address Update

Up to 512 static MAC entries
Enable/disable auto-learning of MAC addresses

Maximum Packet Forwarding Rate

130.95 Mpps

Packet Buffer Memory

3 MB per device

MTBF

423,302 hours

Diagnostic LEDs

Power/Stacking ID/Fan (per device)
Link/Activity/Speed (per 10/100/1000 Mbps port)
Link/Activity/Speed (per Gigabit SFP port)
Link/Activity/Speed (per 10G SFP+ port)

AC Input

100 to 240 VAC 50/60 Hz internal universal power supply

Maximum Power Consumption

48 W

Standby Power Consumption

30.3 W

Fans

1 x smart fan

Acoustics

49.7 dB(A)

Heat Dissipation

163.68 BTU/hr

Operating Temperature

23 F to 122 F (-5 C to 50 C)

Operating Humidity

0% to 95% non-condensing

Dimensions

17.36 x 8.26 x 1.73 in (440 x 210 x 44 mm)

Weight

6.83 lbs (3.1 kg)

Certifications

CE, FCC, C-Tick, VCCI, BSMI, CCC

Safety

cUL, CB

Note

Note: Please read description carefully. Do not base your order on the picture presented.
