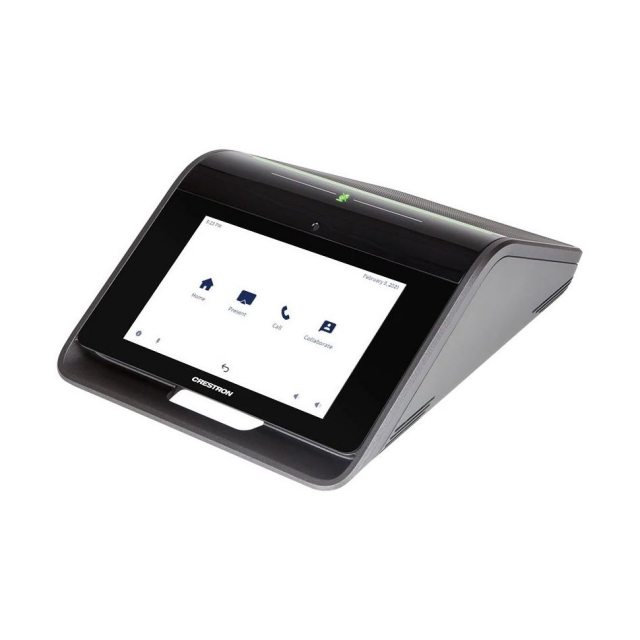

Crestron, 6511627, UC-M50-UA Crestron Flex Tabletop Medium Room Audio Conference System

6511627 Includes Only:

Cable, CAT5e, RJ-45-to-RJ-45, 12 ft (3.66 m);
Cable management hardware
CBL-USB-A-BMICRO-6: USB Cable, USB Type A Male to Micro-B Male cable, 6 ft (1.8 m)
PW-2420RU

Features:

Tabletop audio conferencing solution for any UC platform
Simple, intuitive touch screen UX provides a consistent user experience in every room
Easy to specify and install - no custom design, programming, or software installation required
Premium-level support with Crestron Flex Care (optional)
Network management and provisioning and system alerts through the XiO Cloud® service
Enterprise-grade security - connects and communicates securely over any enterprise or SMB network

The Crestron Flex UC-M50-UA provides an audio conference room solution for open-platform UC applications. The Crestron Flex Tabletop Conference device (CCS-UC-1) provides a superior conferencing and collaboration experience with its large 7 in. HD display, integrated 360° quad microphone array, and an AEC-enabled USB speakerphone that supports full-duplex wideband audio performance. The CCS-UC-1 is a full-featured VoIP conferencing speakerphone that's fully compatible with major SIP-compliant phone systems. Its advanced design provides highly intelligible, full-duplex communication for every participant around a conference table. Dialing and answering calls is easy and intuitive using the large HD color touch screen. Corporate directory access (LDAP) enables one-touch dialing from the customer's centrally managed directory.

The CCS-UC-1 can pair with a mobile phone using Bluetooth® connectivity to make or join phone calls, or to use as a speaker and/or microphone for an application running on a smartphone. When used for calls, controls for the Bluetooth-enabled phone appear on the touch screen, enabling instant connectivity with the press of a button. The CCS-UC-1 functions like any USB Audio class device, allowing you to connect a laptop computer via USB to improve audio performance for any softphone, multimedia, or audio conferencing application running on the laptop.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Crestron Flex tabletop conferencing device

Touch Screen

7 in. (178 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1280 x 800 pixels

Mic Mute Symbol and Light Bar

(2) Capacitive buttons with bi-color LEDs, either button toggles between mute and unmute

AEC

Limes Audio TrueVoice® acoustic echo cancellation, automatic mic mixing, automatic gain control, and dynamic noise reduction, full-duplex IEEE 1329 Type 1 compliant

Speaker

Full range speaker;
Amplifier Power: 11 W;
95 dB SPL at 0.5 m maximum output;
Frequency Response: 90 Hz to 22 kHz

Microphones

360° quad mic array;
Pickup Range (typical): 20 ft (6 m)

Extension Microphones

Supports two mic pods, model CCS-UCA-MIC KIT (sold separately)

Occupancy Sensor

6 ft (1.83 m) PIR range in front of the touch screen;

Ethernet

Dual-port 100 Mbps, enterprise-grade security and management including IEEE 802.1X, Active Directory® authentication, LDAP, Kerberos, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, digest access authentication, password login, HTTPS secure provisioning, XiO Cloud service, the primary port is IEEE 802.3at Type 2 PoE+ compliant

USB

USB 2.0 micro Type B device port, supports UAC for audio interface (cable included)

Power Options

PoE+: IEEE 802.3at Type 2, Class 4 (25.5 W) PoE+ Powered Device
24 VDC: 24 VDC via external 100-240 VAC, 50/60 Hz power pack, model PW-2420RU

NOTE: If the additional mic pod (CCS-UCA-MIC) is used, PoE+ cannot be used to power the device.

Dimensions

Height: 4.11 in. (104 mm)
Width: 8.92 in. (227 mm)
Depth: 12.74 in. (324 mm)

Weight

5.5 lb (2.5 kg)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Crestron Flex tabletop conferencing device

Touch Screen

7 in. (178 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1280 x 800 pixels

Mic Mute Symbol and Light Bar

(2) Capacitive buttons with bi-color LEDs, either button toggles between mute and unmute

AEC

Limes Audio TrueVoice® acoustic echo cancellation, automatic mic mixing, automatic gain control, and dynamic noise reduction, full-duplex IEEE 1329 Type 1 compliant

Speaker

Full range speaker;
Amplifier Power: 11 W;
95 dB SPL at 0.5 m maximum output;
Frequency Response: 90 Hz to 22 kHz

Microphones

360° quad mic array;
Pickup Range (typical): 20 ft (6 m)

Extension Microphones

Supports two mic pods, model CCS-UCA-MIC KIT (sold separately)

Occupancy Sensor

6 ft (1.83 m) PIR range in front of the touch screen;

Ethernet

USB

USB 2.0 micro Type B device port, supports UAC for audio interface (cable included)

Power Options

PoE+: IEEE 802.3at Type 2, Class 4 (25.5 W) PoE+ Powered Device
24 VDC: 24 VDC via external 100-240 VAC, 50/60 Hz power pack, model PW-2420RU

NOTE: If the additional mic pod (CCS-UCA-MIC) is used, PoE+ cannot be used to power the device.

Dimensions

Height: 4.11 in. (104 mm)
Width: 8.92 in. (227 mm)
Depth: 12.74 in. (324 mm)

Weight

5.5 lb (2.5 kg)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
