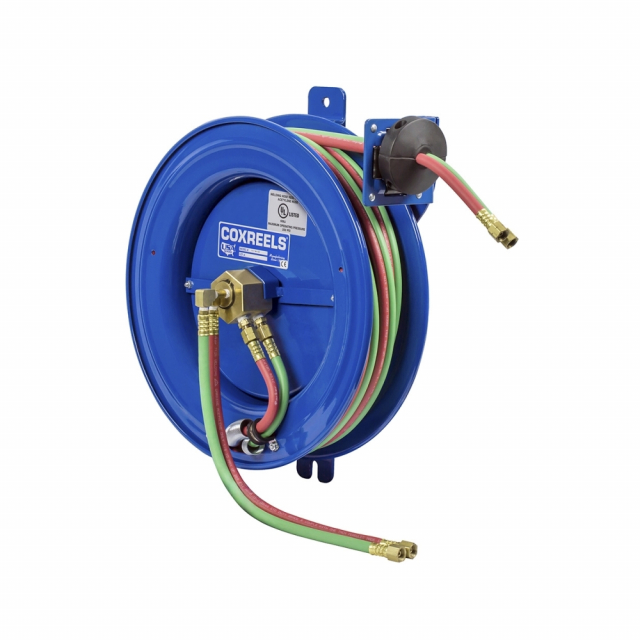

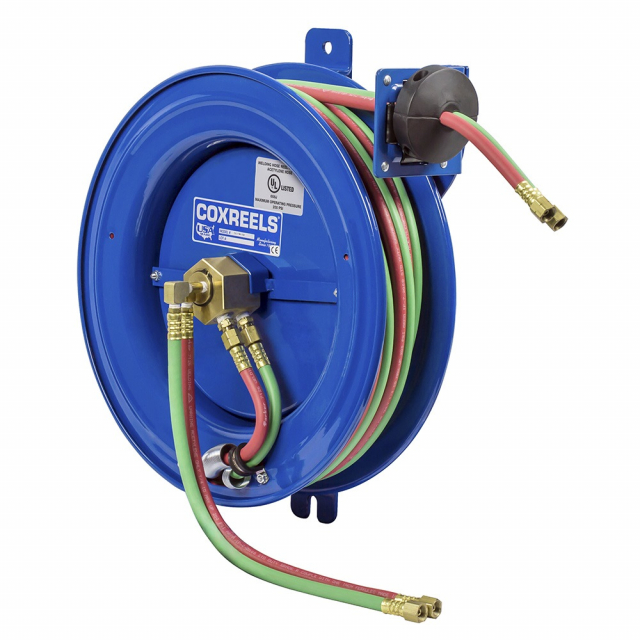

CoxReels, SG17WT-150, Side Mount Welding Hose Reel with Guide Arm, 1/4" I. D., 50' Hose Capacity, 200 PSI, T Grade Hose
Features:
- External fluid math with 90º full-flow dual-ported brass swivel offering both connections from the same side of the reel
- Swivel seals: Viton
- Side mount design for vertical flat surface, cabinet, or enclosed space mounts
- 2-bolt mounting pattern easily mounts & detaches for temporary or permanent installation
- Solid one-piece, heavy-gauge steel arm base for maximum stability
- 1" solid steel axle & lubricated precision bearings for smooth rotation
- Enclosed factory tuned & matched cartridge-style spring motor
- Non-corrosive stainless steel spring, pawl & zinc plated ratchet
- Multi-position lock ratchet mechanism secures the hose at the desired length
- Professional grade heavy-duty steel construction
- Rolled edges & ribbed discs provide strength & safety

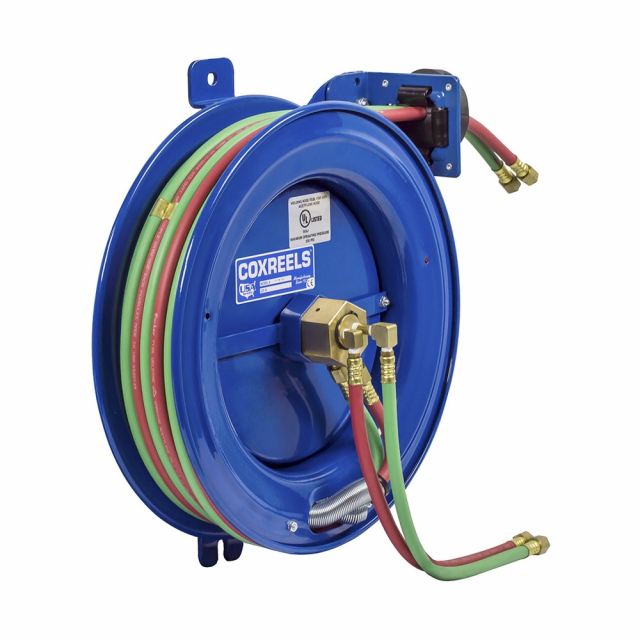

Welding Gas Swivel
External 90º full-flow dual-ported brass swivel with VITON seals offering both connections from the same side of the reel. No need to remove the reel from its mount.
Cartridge Motor
The lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
CNC Spun Discs
Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
Side Mount Design
Side mount for vertical flat surface, cabinet or enclosed space mounts. 2-bolt mounting pattern easily mounts and detaches for temporary or permanent installation.

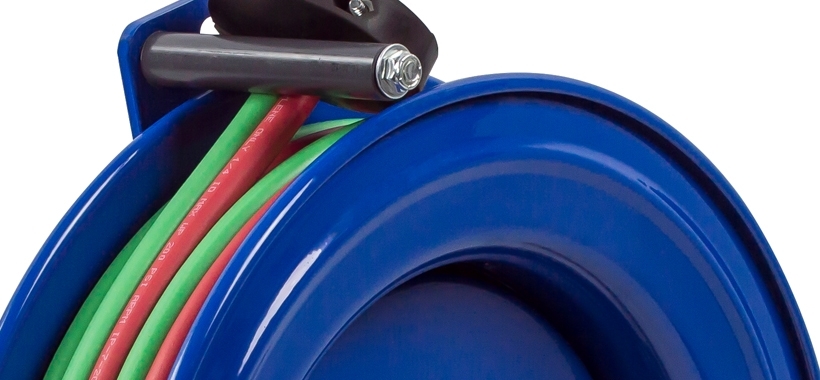

Multi-Position Guide Arm
Adjustable 6 positions guide arm and roller assembly provide maximum hose control.
Other Features
Long-lasting, chip-resistant, and rust inhibiting CPC powder coat finish, adjustable solid rubber hose, "T" grade welding hose, and sturdy permanently lubricated precision bearings.
CoxReels SGW Series expand the capabilities of the "Side Mount" spring-driven hose reels, adding a multi-position guide arm for maximum and convenient hose control. Ideal for tight spaces, the versatile SGW Series (for oxy-acetylene and T Grade gas welding hose) features a simple two-bolt mounting pattern for easy installation and detachment on any vertical flat surface. Common applications include service vehicles, tool benches, vertical walls and beams, vehicle lift systems, machine tools, and more. The guide arm and roller assembly are easily moved to one of the six different positions with a standard 1/2" wrench.
