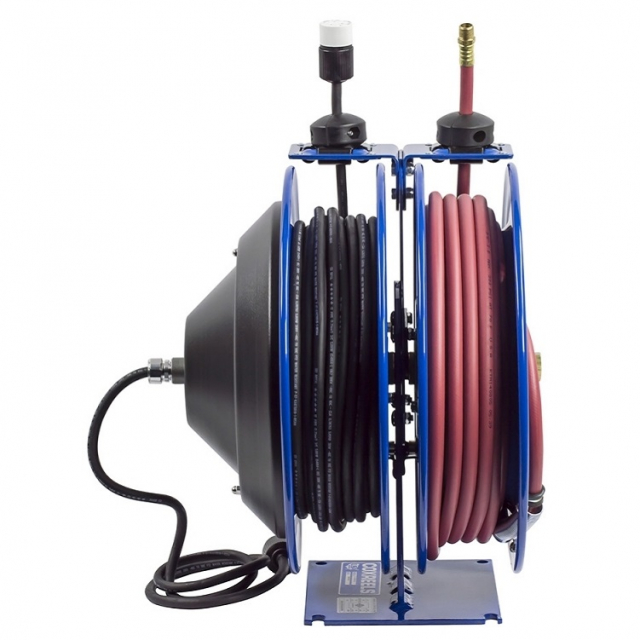

CoxReels C-L350-5016-A Dual Purpose Electric/Air Spring Rewind Reel

CoxReels, C-L350-5016-A, Dual Purpose Electric/Air Spring Rewind Reel w/ 3/8" I.D. 16 AWG Hose

Features:

• Swiwel:
  • External fluid path with machined from solid brass 90° full-flow NPT swivel inlet
  • External CPC™ powder-coated steel components cover for simple slip ring routine maintenance
  • Include 5' lead cable & grounding plug
• Design and structure:
  • Compact two-reel assembly for dual hose applications, each reel operates independently
  • Guide arm adjusts to wall, floor & overhead positions
  • One mounting pattern allows 1/2 the installation time required to install 2 reels at one station
• Retract:
  • Enclosed factory-tuned & matched cartridge-style spring motor
  • Non-corrosive stainless steel spring, pawl & zinc plated ratchet
  • Multi-position lock ratchet mechanism secures hose at the desired length
• Signature Features:
  • Professional grade heavy-duty steel construction
  • Rolled edges & ribbed discs provide strength & safety
  • Made in the U.S.A.: Sold & Supported Worldwide
  • Swivel & lead cable: Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and easy hose installation. External, easily accessible, heavy gauge CPC™ powder-coated steel components cover for fast and simple slip ring routine maintenance.
  • Cartridge motor: A lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Precision coil spring factory tuned and matched to application for longest life cycle and performance.
  • CNC spun disks: Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" steel base: Sturdy single expanded pedestal design with solid one-piece steel base and support post, no weld, for maximum stability. Compact two reel assemblies for air/ electric applications, each reel operates independently.
  • Multi-position guide arm: Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.

• Other:
  • Long-lasting
  • Chip-resistant and rust-inhibiting CPC powder coat finish
  • Adjustable solid rubber hose stop
  • Sturdy permanently lubricated precision bearings
  • 5' lead cable and grounding plug
  • Single industrial receptacle

COXREELS® C Series "Combination" spring-driven hose reels are a combination of two hose reels in one compact assembly. They are perfect for applications in which two sources are needed to get the job done when space is a critical factor. The single mounting base creates stability and adds to the convenience of one mounting pattern.
