Core SWX, RNG-XL1, Renegade XL Li-Ion Block Battery with 14V 28V and 48V Outputs

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Notifications Item is non-returnable unless defective.
Please review our Return Policy.

Technical Details

Cell Chemistry	Li-Ion
Capacity	1376Wh (14.8v, 93Ah)
Size	9.56" x 13.7" x 5.3"
Weight	32.8 lbs.

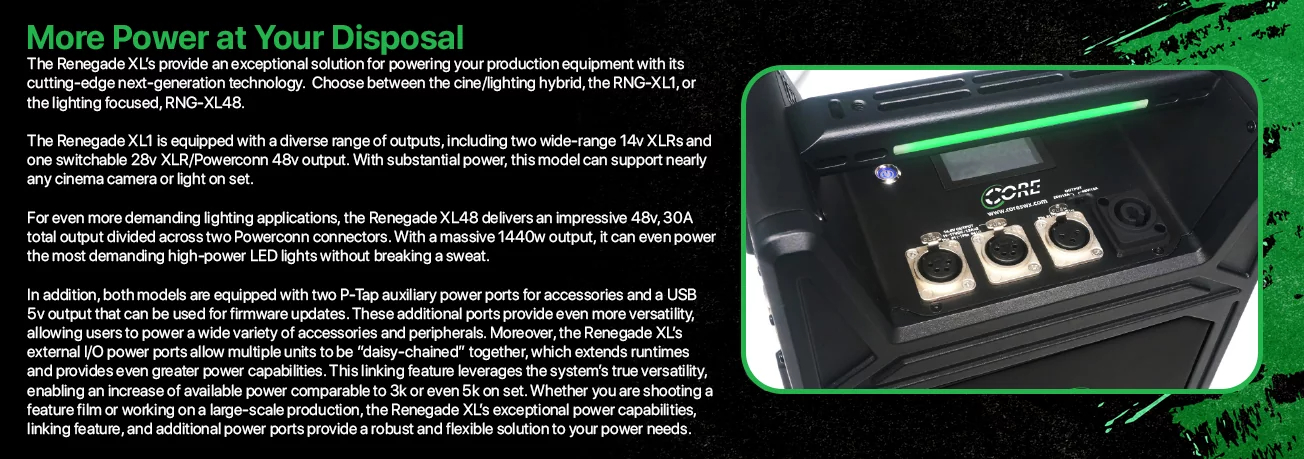

Voltage Outputs	2x XLR 4p 14v(DC 11-17v), 1x XLR 3p at28v (regulated), 1x PowerConn at 48v(regulated)
Max Load	12A at per 14v, 12A at 28v, 15A at 48v)
Built-in Protections	Temperature (internal), Voltage (internal), Current (resettable external and internal)
Capacity Monitoring	OLED Display and LED Handle
Aux Output	2x Ptap (10A, 14.4v unregulated)
USB Output	1x USB-A (5v, 3A)
Charge Time	5.5 hrs with built-in charger or 2 hours with SFQ40 external charger
AC Mains Input	100-240VAC 50/60 Hz
Build	Cast and Sheet Aluminum

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Cell Chemistry	Li-Ion
Capacity	1376Wh (14.8v, 93Ah)
Size	9.56" x 13.7" x 5.3"
Weight	32.8 lbs.
Voltage Outputs	2x XLR 4p 14v(DC 11-17v), 1x XLR 3p at28v (regulated), 1x PowerConn at 48v(regulated)
Max Load	12A at per 14v, 12A at 28v, 15A at 48v)
Built-in Protections	Temperature (internal), Voltage (internal), Current (resettable external and internal)
Capacity Monitoring	OLED Display and LED Handle
Aux Output	2x Ptap (10A, 14.4v unregulated)
USB Output	1x USB-A (5v, 3A)
Charge Time	5.5 hrs with built-in charger or 2 hours with SFQ40 external charger
AC Mains Input	100-240VAC 50/60 Hz
Build	Cast and Sheet Aluminum

Note: Please read description carefully. Do not base your order on the picture presented.
